TOA Electronics HX-7B-WP | Variable Arrays
Regular price
$2,486.28
Unit price
Brand: Toa Electronics Inc.
|
SKU:
801509
Regular price
$2,486.28
Unit price
Description
Description

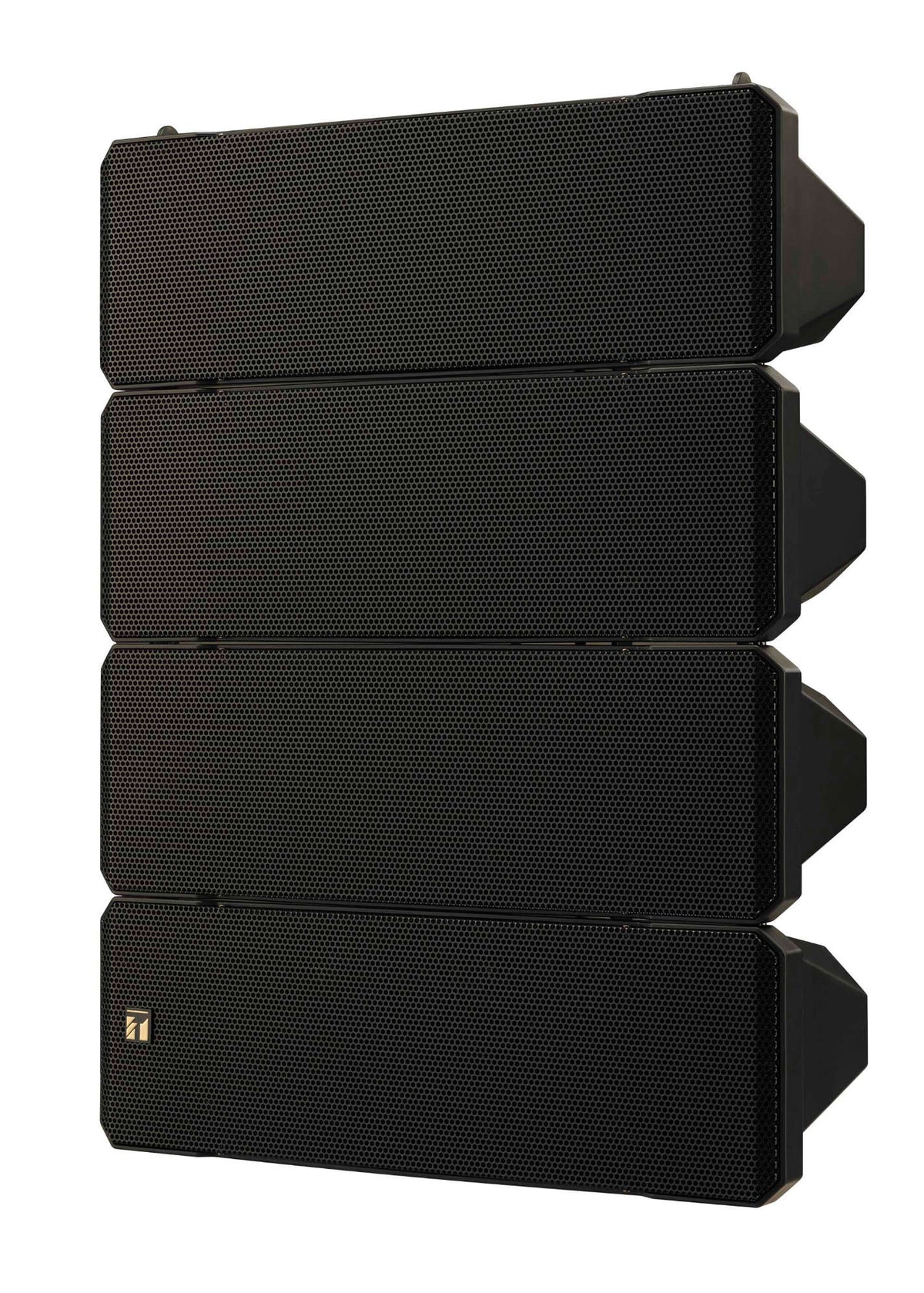

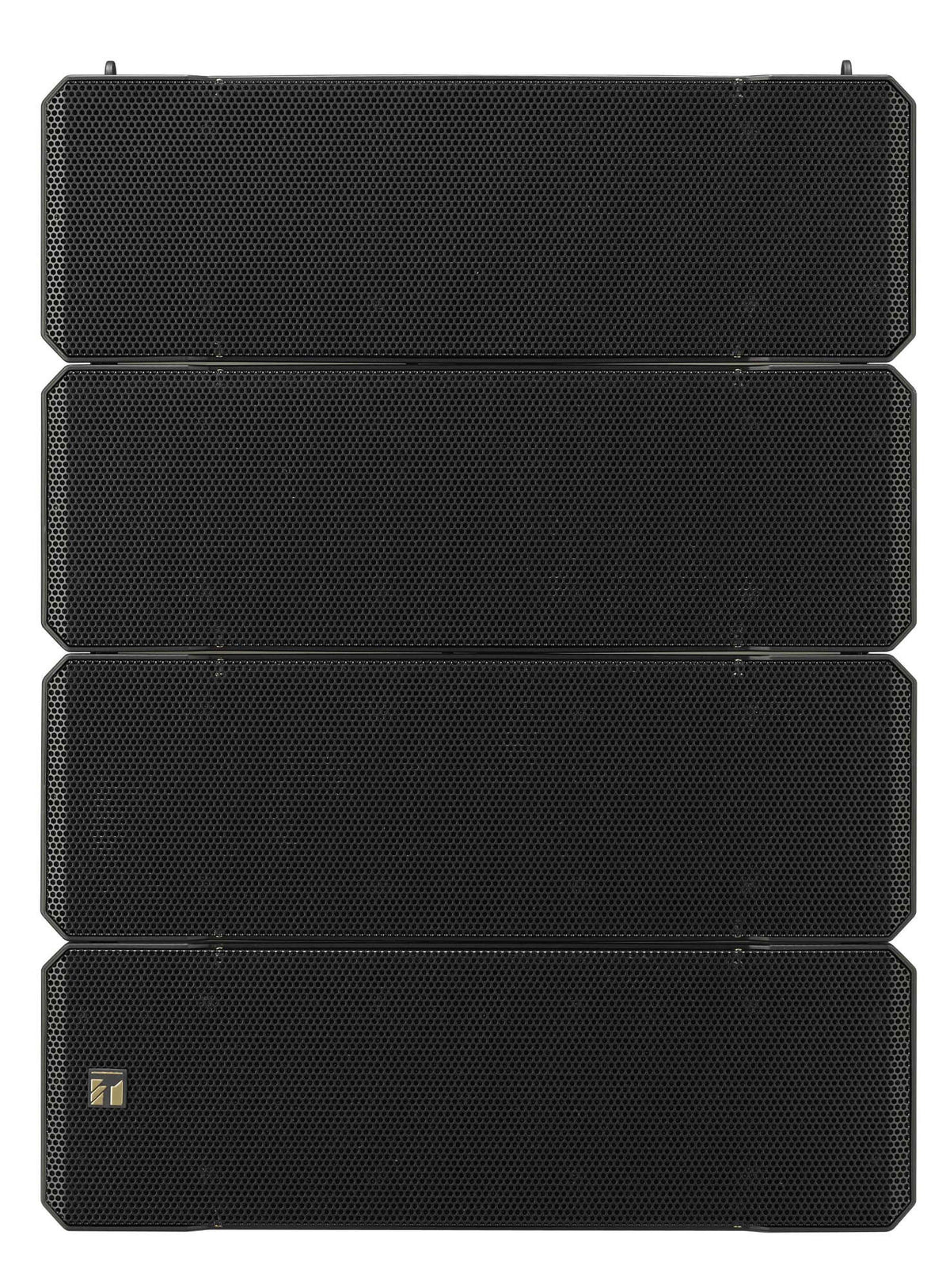

TOA Electronics HX-7B-WP | Variable Arrays
The HX-7B-WP is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in vertical directivity. Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise. The speaker is designed to be installed under the eaves when used outdoors.
TOA Electronics - HX-7B-WP - Features
- High power handling

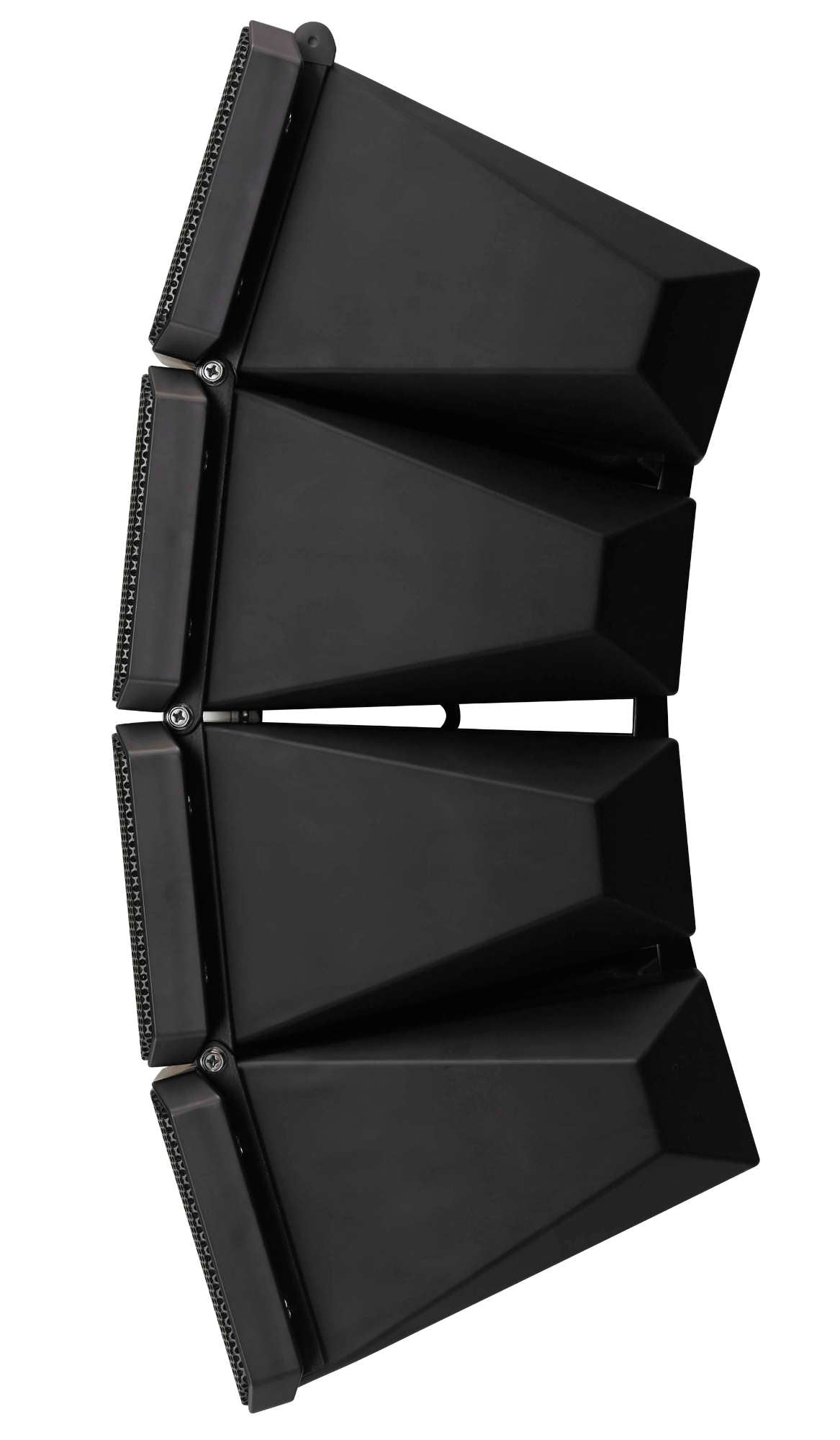

- Speaker design consists of four integrated modules that can be adjusted individually to optimize the vertical dispersion angle
- Built-in isophasic wavefront control horn with compression driver ensures precise HF control and superior reproduction of HF sounds
- 0° mode facilitates the most effective line array set-up
- Easily adjustable vertical dispersion angle
Specifications
Specifications
TOA Electronics - HX-7B-WP - Specifications
| Frequency response | 105 Hz - 20 kHz |
|---|---|
| Sensitivity (1 W, 1 m) | 100 dB |
| Rated input (low impedance) | Continuous pink noise: 250 W (IEC60268-5: 350 W) / Continuous program: 750 W |
| Rated impedance | 8 ? |

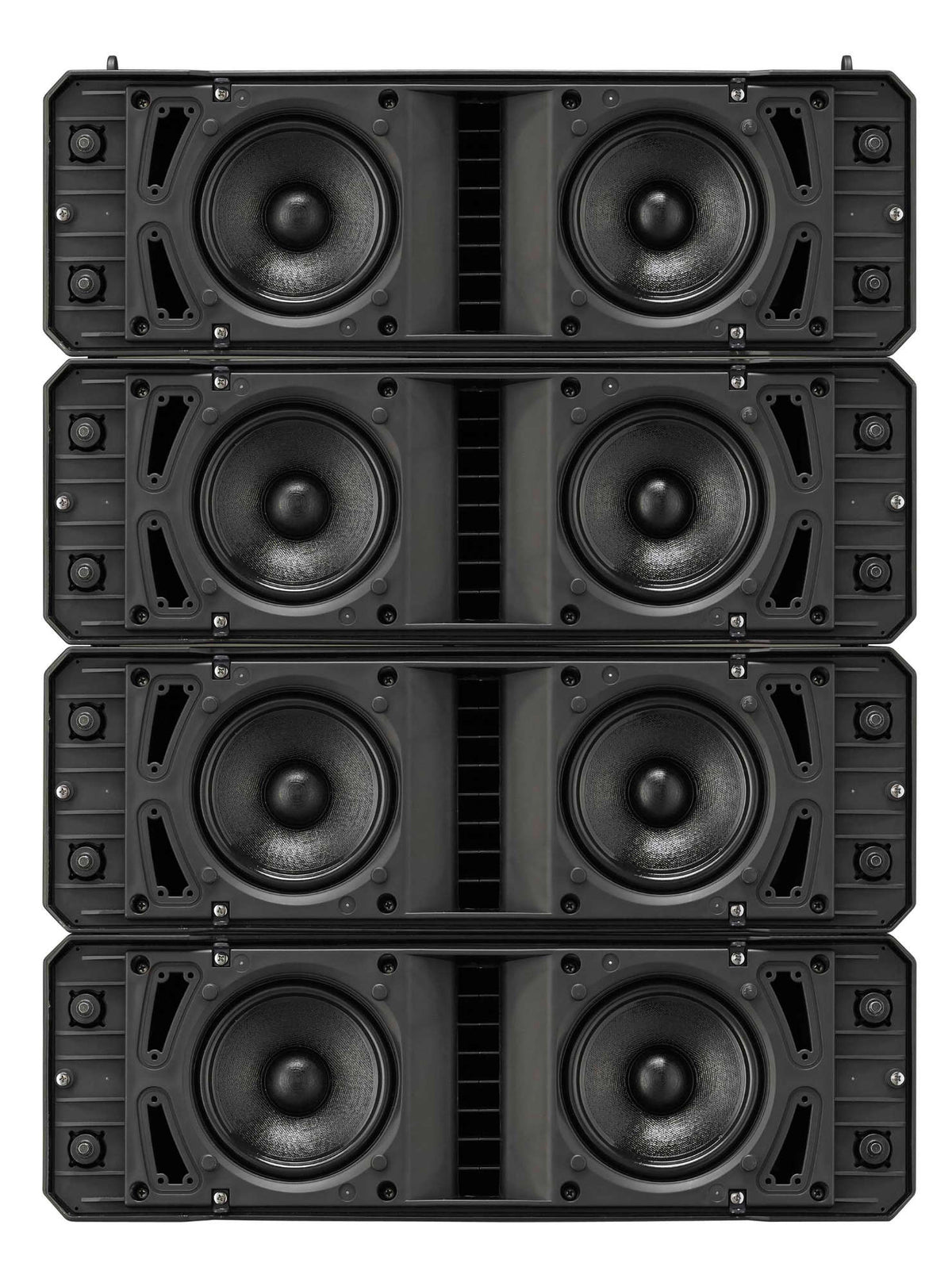

| Speaker component | Low frequency: 13 cm cone-type x 8; High frequency: Wave front control horn with compression driver x 4 |
| Operating temperature | -10°C ~ +50°C |
| Finish | Polypropylene resin, signal black(RAL 9004 or equivalent) |
| Dimensions | 497 x 664 x 274 mm (W x H x D) |
| Weight | 30 kg |
| Crossover frequency | 2 kHz |
| UNSPSC Code | 52161600 |
