Brand: Toa Electronics Inc.
|
SKU:
418733

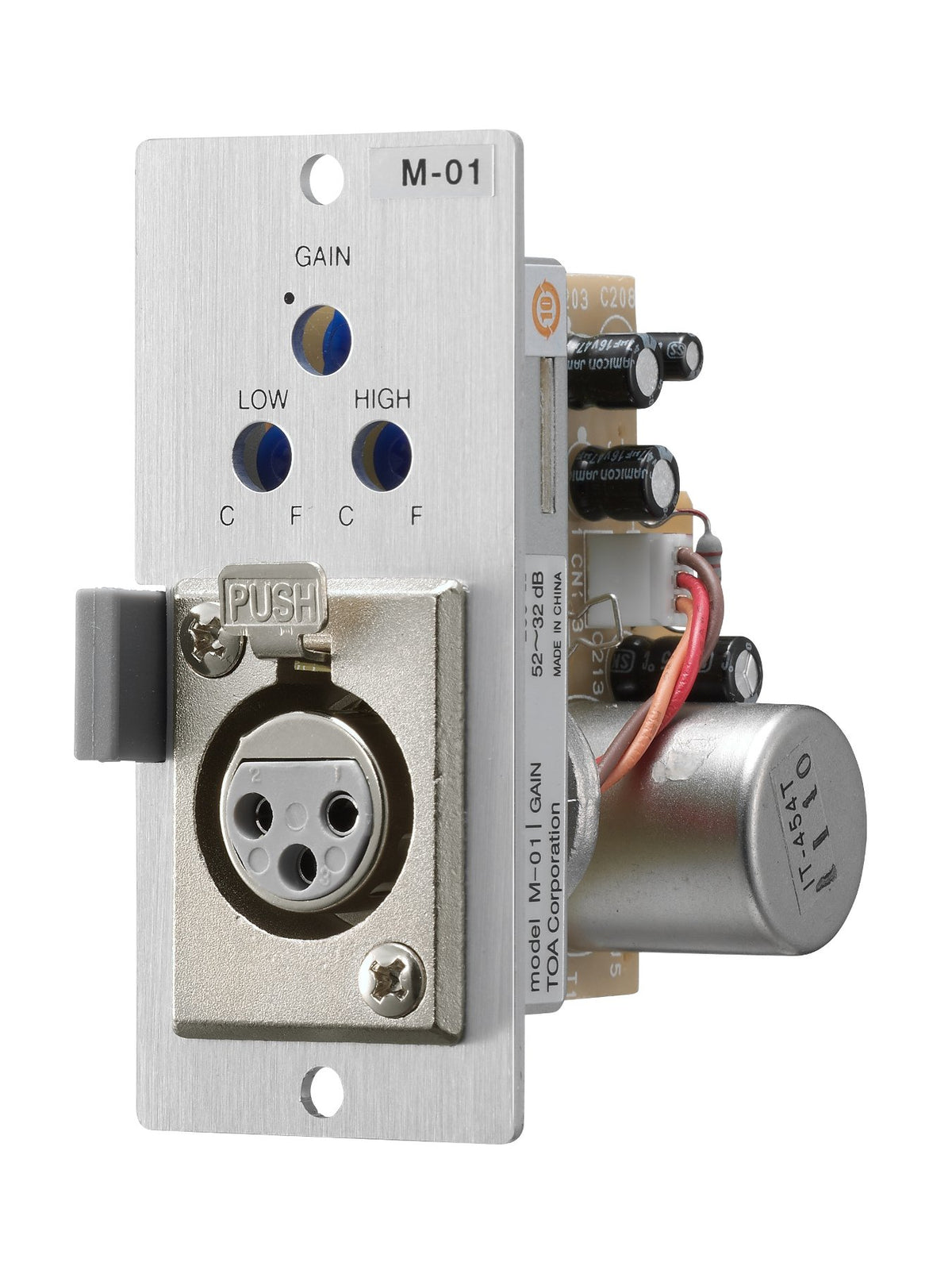

TOA Electronics M-01F | Microphone Input Module for 900 Series Amplifiers, XLR-F
Regular price
$130.99
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics M-01F | Microphone Input Module for 900 Series Ampl...
Regular price
$130.99
Unit price
Brand: Toa Electronics Inc.
|
SKU:
418733
Regular price
$130.99
Unit price
Description
Description
The M-01F is a microphone input module to be used in conjunction with the 900 series components and other TOA's equipment. It has a transformer balanced microphone input with female XLR type connector, phantom power supply function, and gain and tone controls.
Specifications
- Power Source: 24VDC (supplied from the main frame)
- Current Consumption: 9mA
- Input Sensitivity: -60dB (balanced transformer-isolated)
- Input Impedance: 600?, balanced
- Frequency Response: 25Hz - 20kHz ±2.0dB
- Distortion: 0.05% or less (1kHz, output: 0dB)
- Noise Level: -86dB (20Hz - 20kHz BPF), input equivalent noise: -126dB
- Gain: 32 - 52dB
- Phantom Power: +22VDC (active or disable selectable)
- Tone Control: 100Hz: 0 to -10dB, 10kHz: 0 to -10dB
- Connector: Female XLR connector (XLR-3-31 equivalent)
- Dimensions: 35 (W) × 78 (H) × 88mm (D) (1.38 × 3.07" × 3.46")"
- Weight: Max. 110g (0.24lbs)
Specifications
Specifications
Specifications
- Power Source: 24VDC (supplied from the main frame)
- Current Consumption: 9mA
- Input Sensitivity: -60dB (balanced transformer-isolated)
- Input Impedance: 600?, balanced
- Frequency Response: 25Hz - 20kHz ±2.0dB
- Distortion: 0.05% or less (1kHz, output: 0dB)
- Noise Level: -86dB (20Hz - 20kHz BPF), input equivalent noise: -126dB
- Gain: 32 - 52dB
- Phantom Power: +22VDC (active or disable selectable)
- Tone Control: 100Hz: 0 to -10dB, 10kHz: 0 to -10dB
- Connector: Female XLR connector (XLR-3-31 equivalent)
- Dimensions: 35 (W) × 78 (H) × 88mm (D) (1.38 × 3.07" × 3.46")"
- Weight: Max. 110g (0.24lbs)
Additional Specifications
| Type | MICROPHONE |
|---|---|
| UNSPSC Code | 52161600 |
