Brand: Toa Electronics Inc.
|
SKU:
306317

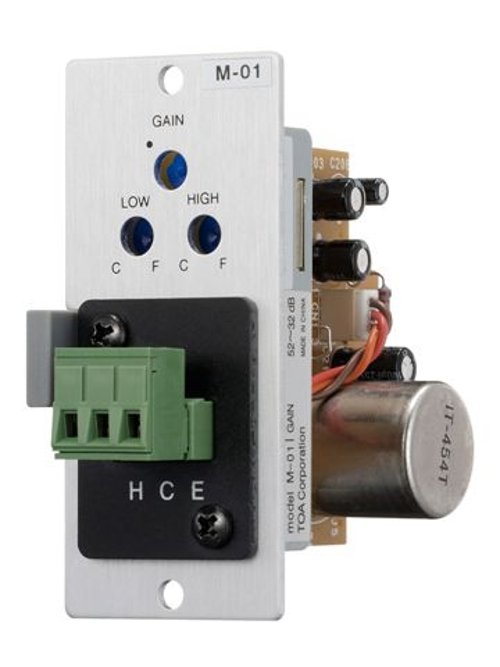

TOA Electronics M-01S T | Microphone Input Module for 900 Series Amplifiers, Removable Terminal Block
Regular price
$102.55
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics M-01S T | Microphone Input Module for 900 Series Am...
Regular price
$102.55
Unit price
Brand: Toa Electronics Inc.
|
SKU:
306317
Regular price
$102.55
Unit price
Description
Description
The M01S is a microphone input module for use with the 900 Series of power amplifiers. It has a transformer-balanced microphone input with terminal block connector, phantom power supply function, and gain / tone controls.
Key Features
- For use with 900 Series power amps
- Mic input module with removable terminal block connector
- Phantom power supply function
- Gain/tone controls
- For balanced, low-impedance mics
Specifications
Specifications
Specifications
- Power Source: 24VDC (supplied from the main frame)
- Current Consumption: 9mA
- Gain Control
- High and Low Cut Filters
- Phantom Power
- Performance Input: 600tb
- Input Sensitivity: -70 to +50dBu
- Input Impedance: 600?, balanced transformer-isolated
- Frequency Response: 25Hz - 20kHz ±2.0dB
- Distortion: 0.05% or less (1kHz, output: 0dB)
- Noise Level: -86dB (20Hz - 20kHz BPF)
- Gain (adjustable): 32 to 52dB
- Maximum Input: -14dB
- Signal to Noise (S/N): -126 (EIN 200?)
- Physical Connector: Removable terminal block
- Dimensions: 1.38" x 3.07" x 3.46" (35 x 78 x 88mm)
- Weight: 0.24lbs (110g)
Additional Specifications
| Type | MICROPHONE |
|---|---|
| UNSPSC Code | 52161600 |
