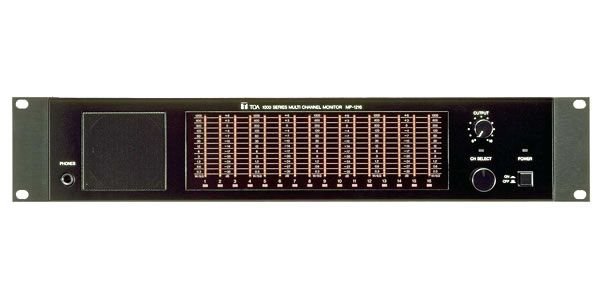

TOA Electronics MP-1216 US | 16-Channel Active Monitor Panel
Regular price
$1,793.69
Unit price
Brand: Toa Electronics Inc.
|
SKU:
449838
Regular price
$1,793.69
Unit price
Description
Description
The MP-1216's signal level meter allows simultaneous monitoring of 16 channels per unit. Any of your high-impedance speaker line outputs, low-impedance speaker line outputs, and line level outputs can be monitored by connecting it to the corresponding input. Additionally. one of the 16 channels can be monitored with an internal speaker or headphone. By connecting two MP-1216 units, a maximum of 32 channels can be monitored.
Key Features
- Sixteen transformer isolated, bridging inputs.
- Separate bar graph meter for each input.
- Accepts line level, 4?, 8?, 25V, 70V and 100V speaker line signals.
- Internal speaker with selector switch.
- Two units can be linked for monitoring 32 channels using optional cable, model YA-8.
- Rack-mount ears included.
- Five year warranty.
Specifications
Specifications
Includes
- AC fuse, 250V 1A (120V version) x1
- AC fuse, 250V T250mA (220 - 240V version) x1
- Rack mounting screw x4
Additional Specifications
| UNSPSC Code | 52161600 |
|---|
