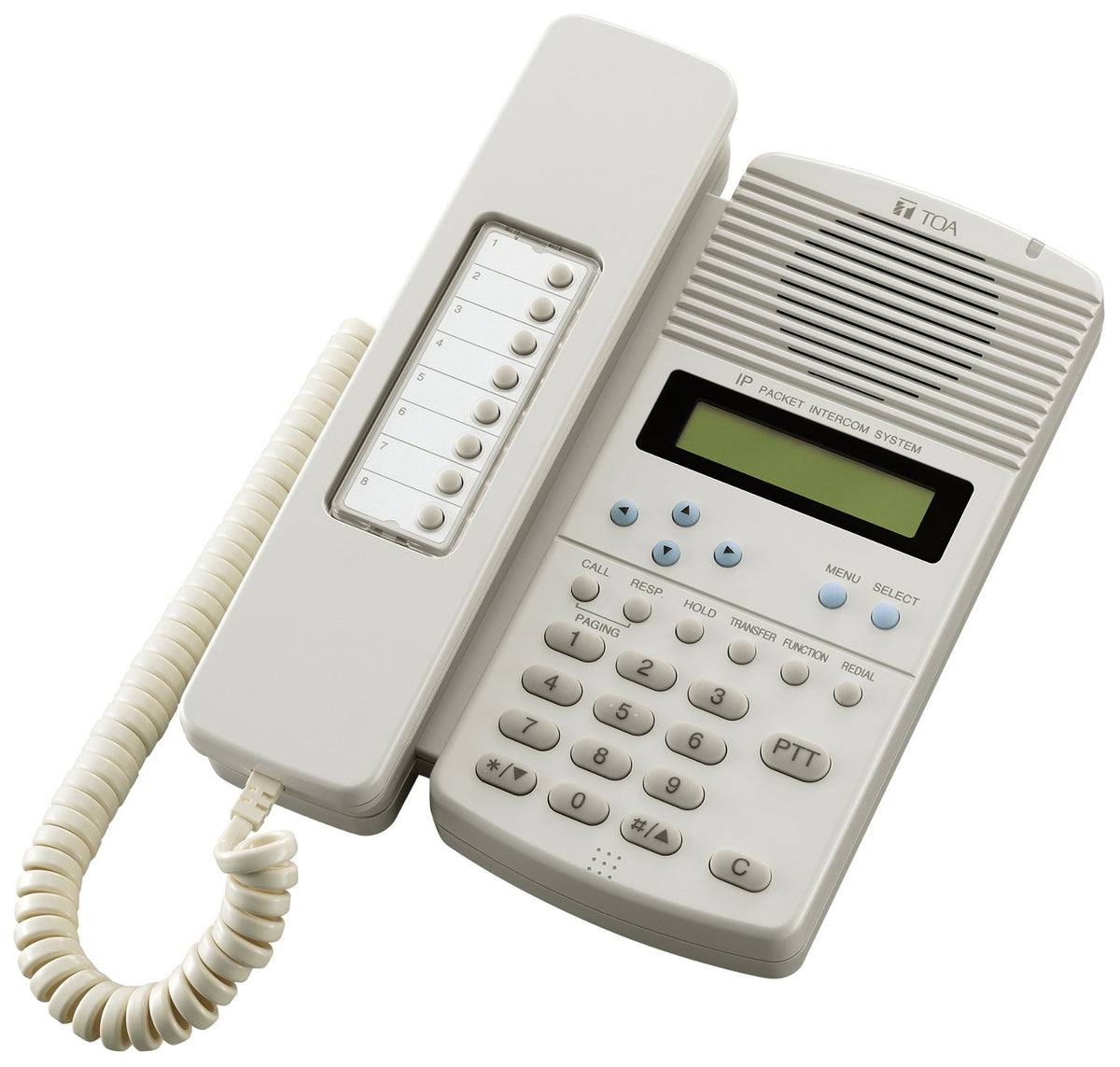

TOA Electronics N-8600MS Y | Master Station for N-8000 Series IP Network Intercom System

The TOA N-8600MS is an IP multifunctional master station employing packet audio technology for the N-8000 system.

Connecting the N-8600MS to an IP network (LAN or WAN) permits hands-free or handset conversation of high sound quality to be made between the N-8600MS and intercom stations connected to the IP Intercom Exchange, or between the N-8600MS units. Besides, the N-8600MS can be used in conjunction with the Multi Interface units through a network. The Multifunctional Master Station provides LCD display, Auto-dialer function enabling one-touch dialing, headset terminal and external speaker terminal. Power can be supplied from the PoE (Power over Ethernet) switching hub. (In this case, an AC adapter is not required.)

The LCD screen shows incoming calls which may be selected at random (Selective Mode) or in the order received (Sequential Mode). Calls may be initiated based on previous connection (last 10 conversations). 3-party conference calls may be initiated from this master station. Bell schedule changes may be initiated or suspended from this master station. Speaker volume is adjustable at the station as well as in software. Hands free conversations with Full and 1/2 Duplex stations as well as PTT mode. Pages and station calls may be quickly redialed using the Redial key. Automatic connection or continuous call reception. Speed dialing, Dial Pattern, and One-touch dialing are available. Manual call transfers and Automatic call transfers (Group Hunting, Absence Transfer, Time Transfer) may be programmed using the keypad or the N-8000 Setting Software. Advanced functions may be password protected. The N-8600MS is the only master station that can communicate with the SX-2000 system, using the SX-200IP input module on the SX system. Power by PoE or optional AD-1215P
