Brand: Toa Electronics Inc.
|
SKU:
801703
Regular price
$444.88
Unit price
Description
Description

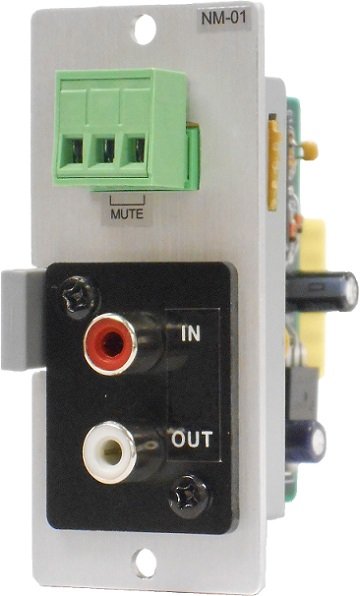

The TOA NM-01 is a noise masking module to be used in conjunction with TOA’s 9000M2, 900, 700 and BG-2000 series amplifiers. This module generates a noise source to be used for sound masking and audio privacy applications. Such applications include open-plan office environments or smaller spaces where distracting or private conversations need to be made unintelligible. The module allows connection of optional external signal processing equipment (e.g. an equalizer), as required. A simple contact allows for muting of this noise source, if desired.
Key Features
- Generates band-limited pink noise for use in sound masking applications
- In/Out processor loop for external EQ
- Mute In for remote on/off control
- Compatible with TOA modular mixer/amplifiers BG-2000, 700 Series, 900mkII Series, 9000m2 Series
Specifications
Specifications
Specifications
- Power Source: 24VDC (Supplied from amplifier)
- Current Consumption: 10mA
- Output Level (to amplifier): 300mV
- Noise Type: Analog random pink noise
- Mute Function: Dry contact, normally open (close to mute)
- Input: 10k?, RCA pin jack
- Output: 150mV, 600>, RCA pin jack
- Dimensions (WxHxD): 1.38” x 3.07” x 3.46” (35mmx 78mm x 88mm)
- Weight: 0.14lb (64g)
Additional Specifications
| Type | DOOR CHIMES |
|---|---|
| UNSPSC Code | 46171600 |
