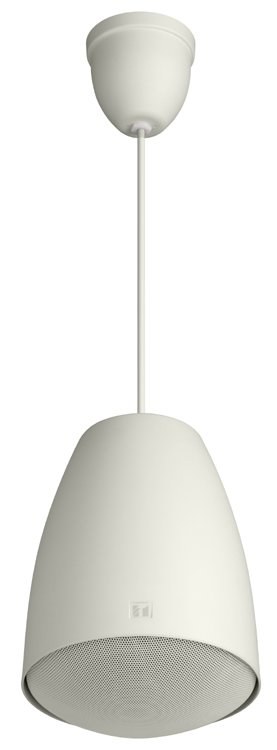

TOA Electronics PE-304 | 5" Pendant Speaker System, 30W, White
Description
Description
The PE-304 is a pendant speaker ideal for ceiling suspension installations. It easily blends in with lighting equipment. A directly-attached 5m (16.4ft) cable allows the speaker to be suspended from the high ceiling.
The PE-304 is driven on both high-impedance (100V and 70V) and low-impedance (8?) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.
Key Features
- High-sensitivity (91 dB) and wide response (70-20 kHz) from 5in. coaxial speaker, delivers high-quality sound in a compact design
- Paintable, hi-impact resin enclosures and metal grilles
- 8 ohm, 70 V and 100 V taps for compatibility with various amplification
- Five-year warranty
Specifications
Specifications
Includes
- Ceiling bracket
- Mounting hanger
- Ceiling cover
- Speaker mounting screw (4 × 16)
Specifications
- Enclosure: Bass-reflex type
- Rated Input: 30W (100V, 70V line, 8?)
- Rated Impedance
- 100 Vline: 330? (30W), 500? (20W), 670? (15W), 1k? (10W), 2k? (5W)
- 70 Vline: 170? (30W), 250? (20W), 330? (15W), 500? (10W), 1k? (5W)
- 8?
- Sensitivity: 91dB (1W @ 1m) (500 - 5,000Hz, pink noise)
- Frequency Response: 70 - 20,000Hz (peak -20dB)
- Speaker Component: 12cm (5") cone-type + balanced dome-tweeter
- Speaker Cord: 2-core cabtyre cord 5m (16.4ft)
- 600V vinyl-insulated cable (IV wire or HIV wire)
- Solid copper wire: f0.8 - f1.6 mm (equivalent to AWG 20 - 14)
- 7-core twisted copper wire: 0.75 - 1.25 m (equivalent to AWG 18 - 16)
- Connection: Push-in connector (bridging terminal-2 branch type)
- Enclosure: HIPS resin, off-white (RAL 9010 or equivalent color)
- Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint
- Dimensions: f186 × 251 (H)mm (f7.32" × 9.88") (unit only)
- Weight: 2.1kg (4.63lb) (unit only)
Additional Specifications
| Type | SPEAKER |
|---|---|
| UNSPSC Code | 52161600 |
