Brand: Toa Electronics Inc. | SKU: 801578

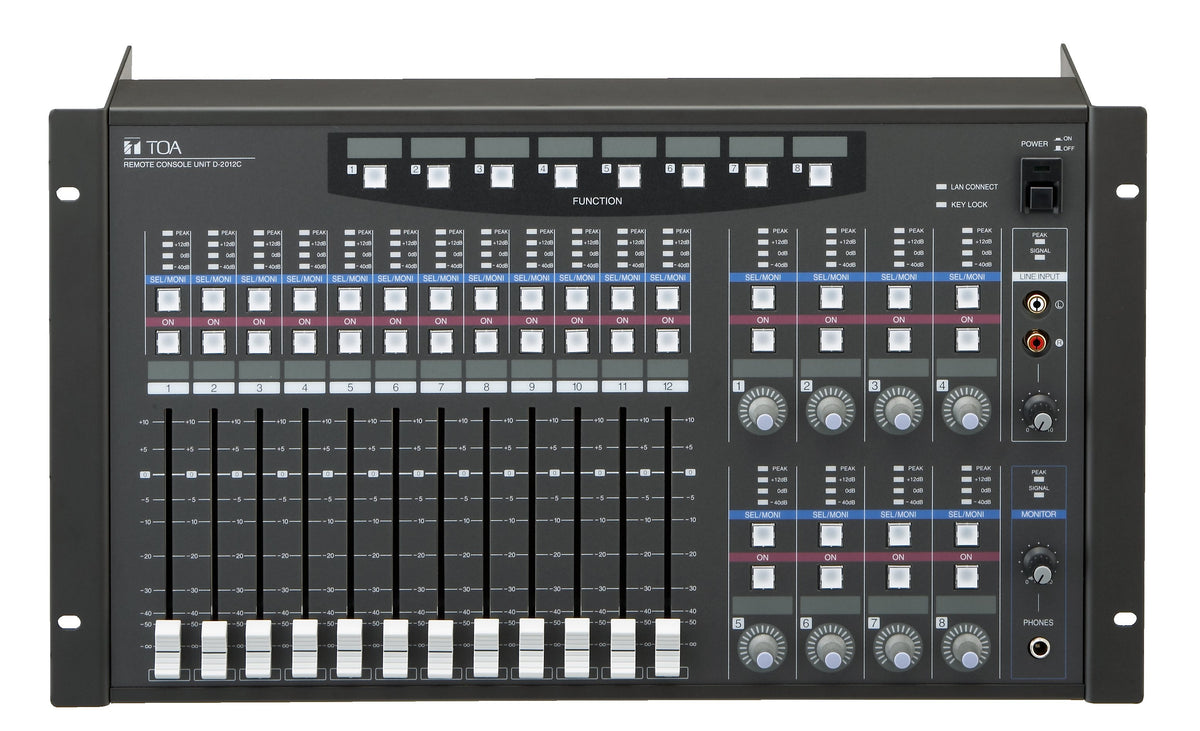

TOA Electronics Q-D-2012C | Rackmountable Remote Console Unit for Use with D-2008SP

$4,020.05

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The D-2012C is a 6U rack mountable Remote Console Unit designed for exclusive use with the D-2008SP Digital Mixing Processor Unit. Assigned to any desired channels inside the D-2008SP by the dedicated software, the D-2012C's 12 motorized faders and 8 rotary encoders can remotely adjust their volumes. Desired preset memories can be recalled using 8 function keys. It is equipped with 1 channel line input (stereo), which allows the audio signal to be transmitted to the D-2008SP via monitor bus. Audio signals inside the D-2008SP can be monitored via monitor bus through headphones connect to a stereo headphone output. The D-2012C can be installed on a desk with the additional use of an optional D-2012AS Console Case.

Key Features

32 preset memories for user convenience.
Intuitive GUI
Mixing console option
VCA control
RS-232C control
User-specific configurations
24-bus matrix
Matrix setting screen
User-friendly design facilitates operation by any user
All-in-one designs ideal offering easy advanced functions

Specifications

Power Source: 120VAC
Power Consumption: 18W
Volume Adjustment: 100mm motorized fader x 12, Rotary encoder x 8
Line Input: 1 channel (stereo), +10 to -20dB, 10k?, unbalanced, RCA Pin-jack
Headphone Output: Stereo 100mW + 100mW (32? load), standard stereo phone-jack
Monitor Bus: 1 stereo input, 1 stereo output
Connector: RJ-45 connector
Connection Cable: Shielded twisted pair (STP) Cat5 or higher LAN cable (2 pairs of data lines)
Maximum cable distance: 100m (between D-2012C and D-2008SP)
LAN: Network I/F: 10BASE-T / 100BASE-TX (Automatic-Negotiation)
RJ-45 connector, Connected via a switching hub
Network protocol: TCP/IP
Connection Cable: Shielded twisted pair (STP) Cat5 or higher LAN cable
Maximum cable distance: 100m (between D-2008SP and switching hub)
Control: RS-232C: D-sub connector (9 pins) for maintenance use
Panel: Surface treated steel plate, laminated with polycarbonate sheet, gray, matte
Rack mounting bracket: Surface-treated steel plate, gray, matte.
Dimensions: 18.98" x 10.47" x 5.43"
Weight: 14.55lbs

Additional Specifications

Type	MIXER
UNSPSC Code	46171600
