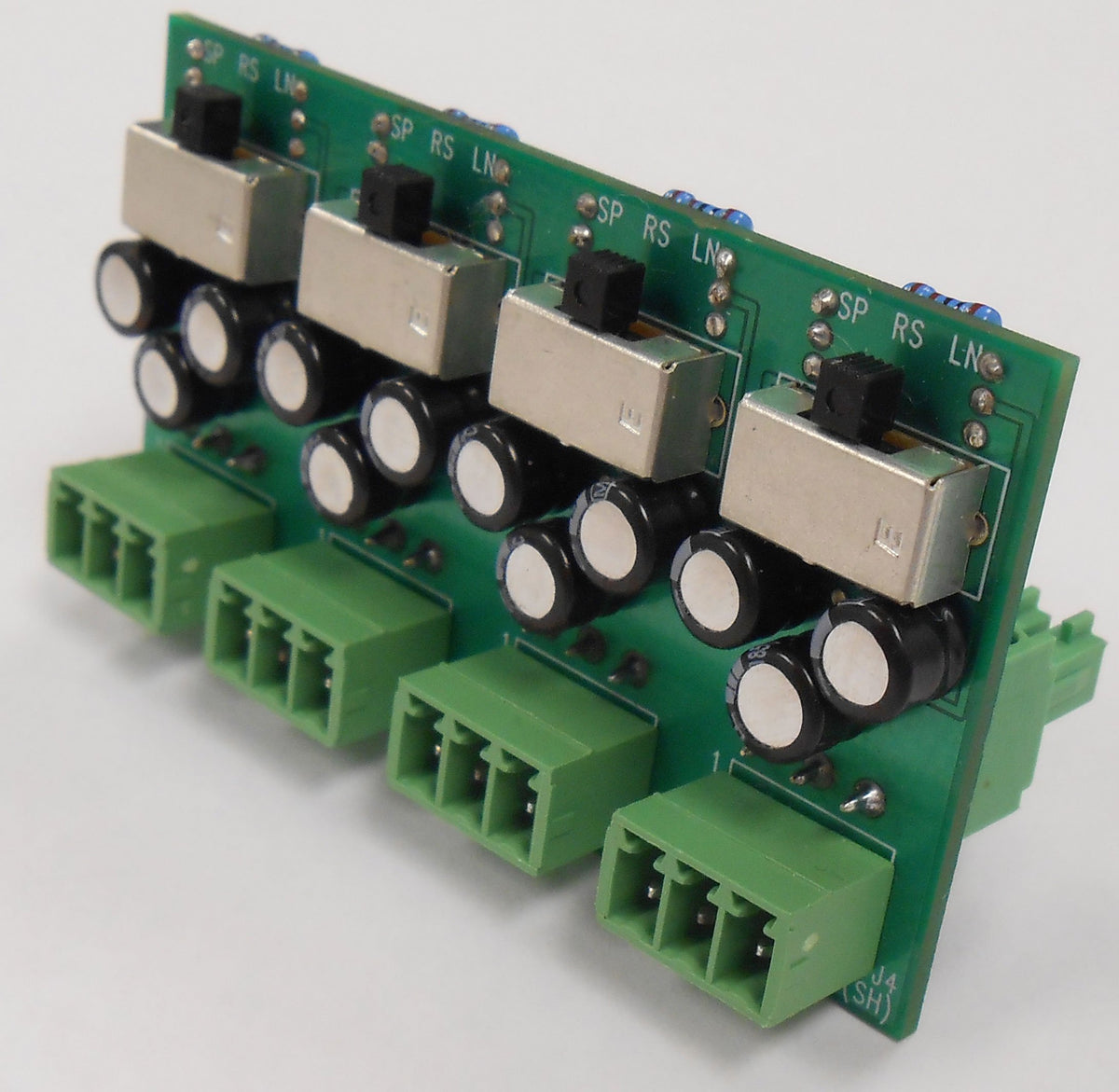

TOA Electronics Q-N8000LC-AM | 4-Channel Level Converter for N-8000RS and N-8010RS

Specifications

• Accessory adapter for N-8000RS or N-8010RS, N-8000 Substation Interface Unit
• Converts the output signal of the interface unit into a line level audio signal or a 25V line speaker output
• Equipped with four channel outputs with level selection switch
• Number of Channel : 4 channels
• Input: Eurostyle terminal connector (3-pin) x4
• Output: Removable terminal (3-pin) x4 (Connectors are supplied with N-8000 / 8010RS)
• Three-position slide switch x4
• Output Signal “SP”: Speaker Output (1w @ 25V)
• “RS”: Bypass Output (Original N-8000 / 8010RS signal)
• “LN”: Line Level Output (+9dBV max.)
• Dimensions: 2.72”(w) x 1.54”(h) x 1.10”(d)* (69 x 39 x 28mm*) *Not including output connectors.
• Weight: 1.09oz (31g)
