TOA Electronics RM-200RJ | Terminal Unit for SX Series
Regular price
$225.04
Unit price
Brand: Toa Electronics Inc.
|
SKU:
9814029
Regular price
$225.04
Unit price
Description
Description

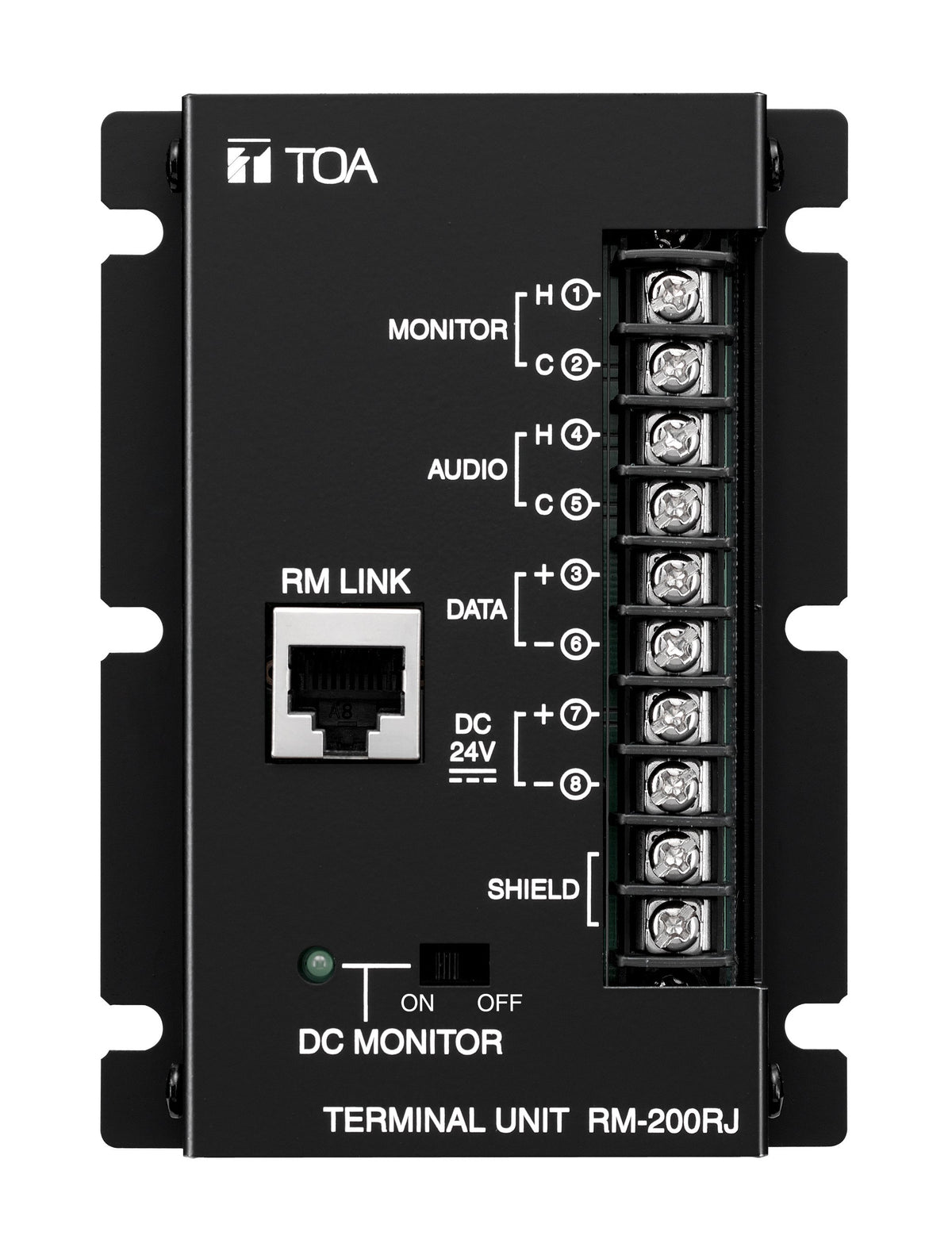

The RM-200RJ is designed to convert the RJ45 connector into a screw terminal block. It is used to connect between a trunk cable (such as CPEV cable) and a feeder cable (such as LAN cable) in wiring a remote microphone. The built-in indicator shows the voltage status of DC power cable when the remote microphone cable for the SX-2000 series system is connected.
Specifications
Specifications
Specifications
- Applied Voltage: 40V or less
- Withstand Voltage: 1A
- Voltage Indicator: Monitor terminals: Terminal No. 7 (+) and terminal No. 8 (-),
- extinguish voltage: 14V or less, lighting voltage: 21V or more,
- indicator; ON/OFF switchable
- Connector: RJ-45 Connector: 1
- Terminal: M3 screw terminal (10-pin), distance between barriers: 6.62mm (0.26")
- Operating Temperature: 0°C to +40°C (32°F to 104°F)
- Operating Humidity: 35% to 80% RH (no condensation)
- Finish: Surface-treated steel plate, black, paint
- Dimensions: 84 (W) × 116 (H) × 25.7 (D) mm (3.31" × 4.57" × 1.01")
- Weight: 250g (0.55lbs)
Additional Specifications
| UNSPSC Code | 52161600 |
|---|
