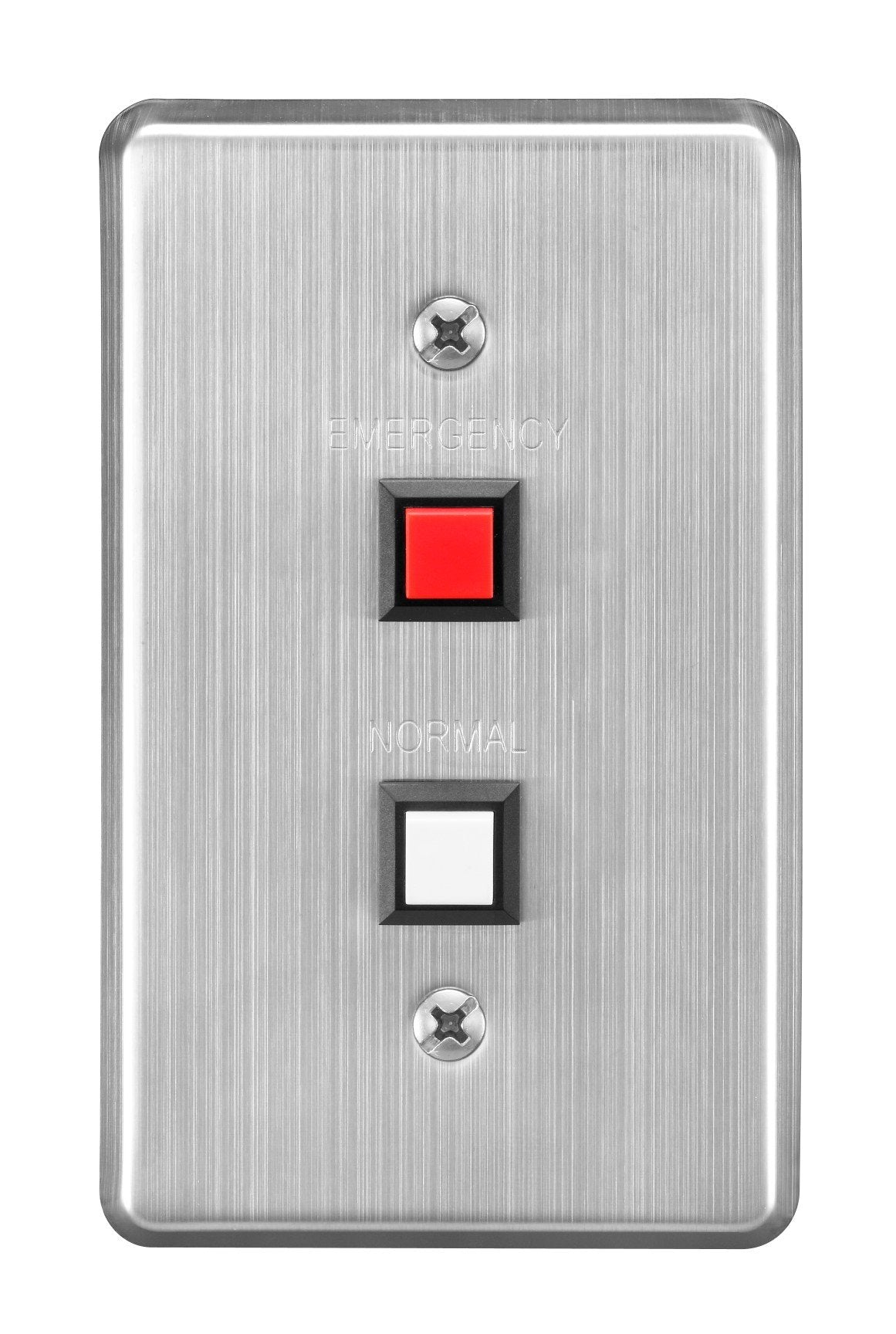

TOA Electronics RS-144 | 2-Button Switch Plate
Regular price
$130.52
Unit price
Brand: Toa Electronics Inc.
|
SKU:
1019734
Regular price
$130.52
Unit price
Description
Description
The RS-144 is a switch panel designed for use with the N-8000RS or N-8010RS 2-Core Shielded Substation Interface Unit. It is equipped with a Emergency switch and Normal switch, and can be installed in a 1-gang electrical box. By connecting a high impedance speaker to it, hands-free conversation with the master station can be made through its speaker. Also, it can be used in connection with the RS-141 Ip Intercom Option Handset.
Specifications
Specifications
Includes
- Mounting bracket x1
- bracket mounting screw (No.6-32UNC × 18) x2
- Box mounting screw (M4 × 30) x2
- Box mounting screw (No.6-32UNC × 30) x2
Specifications
- Call-in Switch: Momentary (EMERGENCY, NORMAL)
- Wiring: Two-core shielded cable
- Transmission Range
- 0.5km (546yd) / diameter 0.5mm (AWG24)
- 0.8km (874yd) / diameter 0.65mm (AWG22)
- 1.3km (1421yd) / diameter 0.9mm (AWG19)
- Operating Temperature: 0°C to +40°C (32°F to 104°F)
- Plate: Stainless steel, hairline
- Call-in Switch (emergency): resin, red
- Call-in Switch (normal) : resin, white
- Dimensions: 70 (W) × 115 (H) × 28.6 (D) mm (2.76 × 4.53" × 1.13")"
- Weight: 80g (0.18lbs)
Additional Specifications
| Type | ACCESSORIES |
|---|---|
| UNSPSC Code | 46171600 |
