Brand: Toa Electronics Inc.
|
SKU:
306319

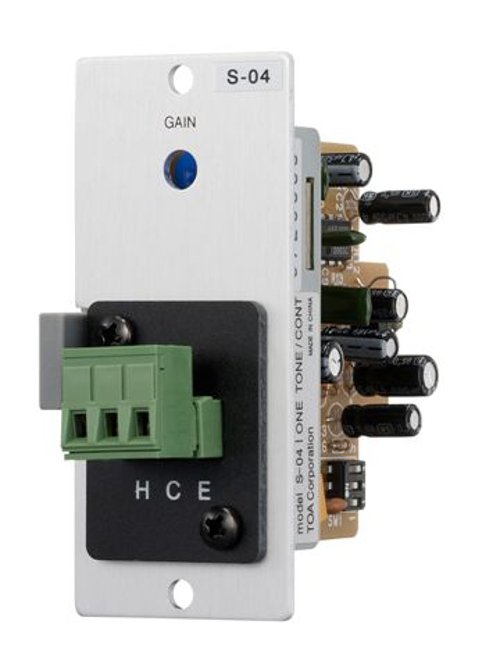

TOA Electronics S-04S T | Switch-Selectable Tone Generator Module for 900 Series Amplifiers
Regular price
$137.49
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics S-04S T | Switch-Selectable Tone Generator Module f...
Regular price
$137.49
Unit price
Brand: Toa Electronics Inc.
|
SKU:
306319
Regular price
$137.49
Unit price
Description
Description
Generates one of eight tones via switch-closure. Can be used for doorbell, paging, door/gate release, telephone night ringer, annunciator, class change or pre-announcement tone.
Key Features
- Gain Control
- Terminals for Switch Activation
Specifications
Specifications
Specifications
- Power Source: 24VDC (supplied from the main frame)
- Current Consumption: 20 mA
- Output Level: 1.5V (p-p) (Rated output: -20dB)
- Noise Level: -80dB (20Hz - 20kHz BPF)
- Gain: Off to 0dB
- Available Tone: 1 / 2 / 4 Tone chime (selectable)
- Connector: Removable terminal block (3P)
- Dimensions: 35mm (W) x 78mm (H) x 88mm (D) - (1.38" x 3.07" x 3.46")
- Weight: Max. 70g (0.15lbs)
Additional Specifications
| UNSPSC Code | 52161600 |
|---|
