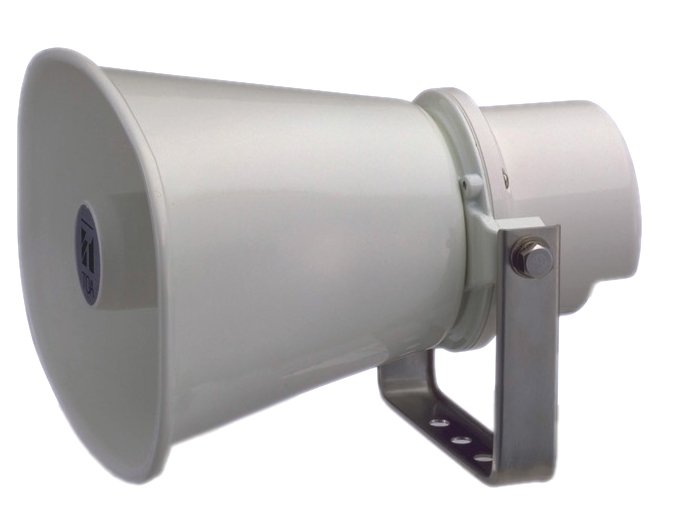

TOA Electronics SC-615 | 15W Paging Horn Speaker
Description
Description
The TOA SC615 Paging Horn Speaker provides intelligible voice paging and tone signaling for indoor and outdoor sound system applications. Fully weather-resistant for reliable operation in demanding environmental conditions. Low impedance SC615 (15W, 8 ohm) is easy to install in wall, pole or ceiling-mount applications and includes corrosion-resistant stainless-steel mounting hardware. The SC Series models are also designed for intercom talk-back applications requiring dual operation as both a microphone and speaker.
The paging horn is a double re-entrant horn with compression driver for high sensitivity and a lightweight aluminum enclosure. The loud-speaker diaphragm is heat and moisture-resistant to prevent deformation and extend operation. The SC Series are also IP-65 standards compliant for dust and moisture-resistance with a wide operating temperature range from -4° F to 130° F. The SC Series Paging Horn Speakers are backed with a five-year warranty.
Key Features
- High Sensitivity: up to 113dB (1W / 1m).
- Usable as a Microphone for intercom talk-back applications.
- Built-In 25V / 70.7 VTransformer ("T" Models) with screwdriver-adjustable power taps (8 and 16? models also available).
- Lightweight, Sealed, Aluminum Enclosure prevents moisture damage.
- Paging Horn Speakers for voice paging and tone signaling distribution.
- Weather-Resistant to withstand demanding environmental conditions.
- Double Re-Entrant Horn with Compression Driver
- Controlled Dispersion
- Cable Strain-Relief
- IEC IP-65 Standards Compliant for dust and moisture-resistance.
- Wide Temperature Range: -4°F to 131°F
- Phenolic Loudspeaker Diaphragm prevents deformation from heat and moisture.
- Stainless-Steel Mounting Bracket for easy installation and aiming in wall, pole or ceiling-mount applications.
- Five-Year Warranty
Specifications
Specifications
Specifications
- Rated Input: 15W (Mobile Mount use: 10W)
- Rated Impedance: 8?
- Sound Pressure Level: 112dB (1W, 1m @ 500Hz to 2.5kHz peak level)
- Frequency Response: 280Hz - 12.5kHz
- Dust / Water Protection: IP65
- Polarity: Hot: Black , Com: White
- Operating Temperature: -20°C to +55°C (must be free from dew condensation)
- Horn flare: Aluminum, off-white, powder coating
- Reflector horn and rear cover: ABS resin, off-white
- Bracket, screws and bolts: Stainless steel
- Speaker cable: Polyvinyl chloride insulated cabtyre cable (6mm in diameter, 600mm in length)
- Dimensions: 222 (W) × 179 (H) × 234 (D) mm
- Weight: 1.1kgs
Additional Specifications
| Type | SPEAKER |
|---|---|
| UNSPSC Code | 52161600 |
