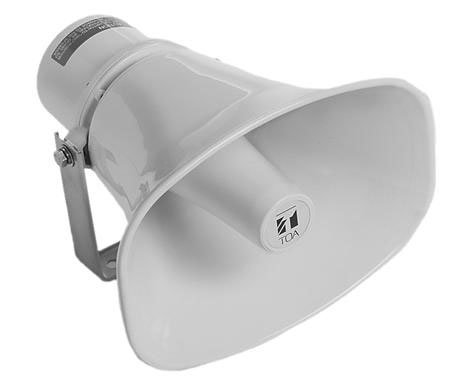

TOA Electronics SC-630 | 30W Paging Horn Speaker
Description
Description
TOA SC Series paging horn speakers provide intelligible voice paging and tone signaling for indoor and outdoor sound system applications. Fully weather-resistant for reliable operation in demanding environmental conditions, SC Series models are available with a choice of power ratings from 10W to 50W.
The SC-630 (30W, 8?) is a low impedance model. The SC Series are easy to install in wall, pole or ceiling-mount applications and include corrosion-resistant stainless-steel mounting hardware. The SC Series models are also designed for intercom talk-back applications requiring dual operation as both a microphone and speaker.
Each model is a double re-entrant horn with compression driver for high sensitivity and a lightweight aluminum enclosure. The loud-speaker diaphragm is heat and moisture-resistant to prevent deformation and extend operation. The SC Series are also IP-65 standards compliant for dust and moisture-resistance with a wide operating temperature range from -4°F to 130°F. The SC Series Paging Horn Speakers are backed with a five-year warranty.
Key Features
- Paging Horn Speaker for voice paging and tone signaling distribution.
- Weather-Resistant to withstand demanding environmental conditions.
- Double Re-Entrant Horn with Compression Driver
- Controlled Dispersion
- High Sensitivity: up to 113dB (1W/1m).
- Usable as a Microphone for intercom talk-back applications.
- Lightweight, Sealed, Aluminum Enclosure prevents moisture damage.
- Cable Strain-Relief
- IEC IP-65 Standards Compliant for dust and moisture-resistance.
- Wide Temperature Range: -4°F to 131°F
- Phenolic Loudspeaker Diaphragm prevents deformation from heat and moisture.
- Stainless-Steel Mounting Bracket for easy installation and aiming in wall, pole or ceiling-mount applications.
- Five-Year Warranty
Specifications
Specifications
Applications
- Boats
- Churches
- Drive-Thru
- Industrial
- Mobile Vehicles
- Parking Facilities
- Parks
- Schools
- Security
- Sporting Facilities
- Swimming Pools
Additional Specifications
| Type | SPEAKER |
|---|---|
| UNSPSC Code | 52161600 |
