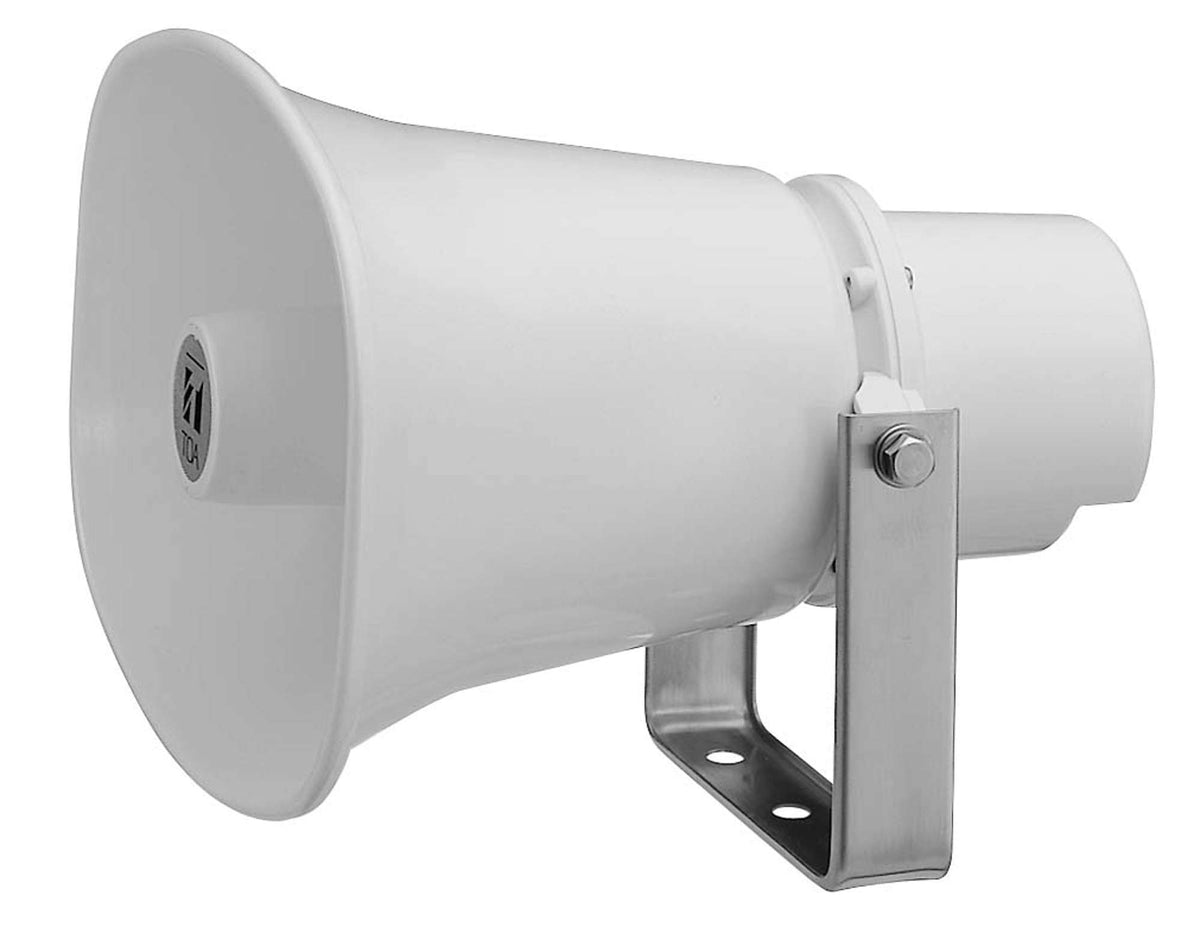

Toa Electronics SC-630T | Paging Horn Speaker
The SC-630T is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.
Toa Electronics - SC-630T - Features
- Delivers Clear Audio: High sound pressure level (113 dB) ensures intelligible voice announcements.
- Weather-Resistant Design: IP65-rated and corrosion-resistant materials support outdoor use in typical conditions.
- Durable Build: Shock-resistant aluminum horn and stainless steel hardware provide long-term reliability.
- Flexible System Integration: Equipped with an impedance selector for easy matching in distributed audio systems.
Specifications
Specifications
Toa Electronics - SC-630T - Specifications
| Rated Input | 30 W |
|---|---|
| Rated Impedance | 70 V line: 170 ? (30 W), 330 ? (15 W), 650 ? (7.5 W), 25 V line: 21 ? (30 W), 42 ? (15 W), 170 ? (3.7 W), 330 ? (1.9 W), 650 ? (1 W) |
| Sound Pressure Level | 113 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level) |
| Frequency Response | 250 Hz - 10 kHz |
| Polarity | Hot: Black, Com: White |
| Dust/Water Protection | IP65 |
| Operating Temperature | -20 °C to +55 °C (-4 °F to 131 °F) (must be free from dew condensation) |
| Dimensions | 285 (W) x 227 (H) x 277 (D) mm |
| Weight | 2 kg |
| UNSPSC Code | 52161600 |
