Brand: Toa Electronics Inc.
|
SKU:
801649

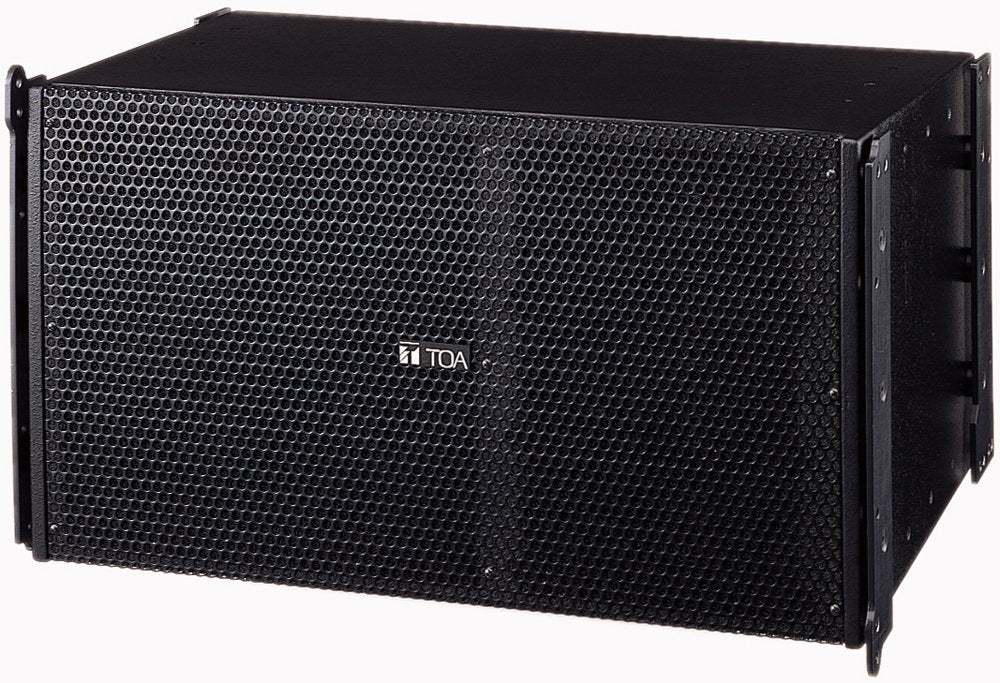

TOA Electronics SR-A12L | 12" 2-Way 5 Degree Line Array Speaker System, 450W
Regular price
$2,915.78
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics SR-A12L | 12" 2-Way 5 Degree Line Array Speake...
Regular price
$2,915.78
Unit price
Brand: Toa Electronics Inc.
|
SKU:
801649
Regular price
$2,915.78
Unit price
Description
Description
Featuring the line arrayed wave front control technology that creates sound fields with uniform sound pressure and high sound clarity, the SR-A12L is a two-way line array speaker ideal for long distance sound transmission. The SR-A12L employs the multi-amplifier drive system. Recommended digital speaker processor is the DP-SP3 (option).
Specifications
Specifications
Includes
- Joint plate x2
- Joint plate mounting bolt (M10) x16
Specifications
- Enclosure: Bass-reflex type
- Power Handling Capacity: Continuous program Low frequency: 450W, High frequency: 180W
- Rated Impedance Low frequency: 8?, High frequency: 16?
- Sensitivity: Low frequency: 98dB (1W, 1m), High frequency: 110dB (1W, 1m)
- Frequency Response: 50Hz - 20kHz (when recommended parameters are applied by the optional DP-SP3)
- Crossover Frequency: 1kHz (when recommended parameters are applied by the optional DP-SP3)
- Directivity Angle: Horizontal: 90°, Vertical: 5°
- Speaker Component: Low frequency: 30cm cone-type, High frequency: Wave front control horn 90° (horizontal) × 5° (vertical) + compression driver × 2
- Input Connector: M5 screw terminal, distance between barriers: 12.2mm and Neutrik NL4MP × 2
- Enclosure: Plywood, black, paint
- Front grille: Punched steel plate, black, acrylic paint
- Dimensions: 740 (W) × 433 (H) × 469 (D) mm
- Weight: 49kgs (including accessories)
Additional Specifications
| Type | SPEAKER HOUSINGS AND MOUNTS |
|---|---|
| UNSPSC Code | 52161600 |
