TOA Electronics SR-A12SWP | 12" 2-Way 15 Degree Line Array System, Weather Protect, 450W
Regular price
$5,010.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics SR-A12SWP | 12" 2-Way 15 Degree Line Array Sys...
Regular price
$5,010.02
Unit price
Brand: Toa Electronics Inc.
|
SKU:
9813829
Regular price
$5,010.02
Unit price
Shipping calculated at checkout.
Description
Description

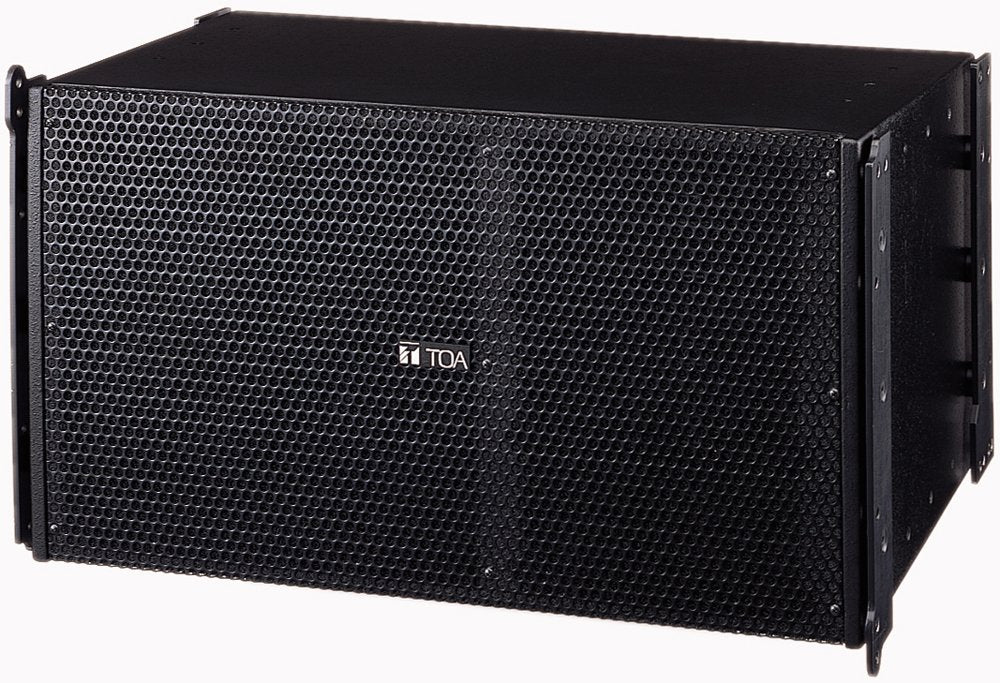

Featuring the line arrayed wave front control technology that creates sound fields with uniform sound pressureand high sound clarity, the SR-A12SWP is a two-way line array speaker ideal for short distance soundtransmission. It satisfies the water-protection requirements set down in the IPX4 Standard. The SR-A12SWP employs the multi-amplifier drive system. Recommended digital speaker processor is the DP-SP3 (option).
Specifications
Specifications
Specifications
- Enclosure: Bass-reflex type
- Power Handling Capacity: Continuous program Low frequency: 450W, High frequency: 180W
- Rated Impedance: Low frequency: 8?, High frequency: 16?
- Sensitivity: Low frequency: 98dB (1W, 1m), High frequency: 110dB (1W, 1m)
- Frequency Response: 50Hz - 20kHz (when recommended parameters are applied by the optional DP-SP3)
- Crossover Frequency: 1kHz (when recommended parameters are applied by the optional DP-SP3)
- Directivity Angle: Horizontal: 90°, Vertical: 15°
- Low frequency: 30cm cone-type
- High frequency: Wave front control horn 90° (horizontal) × 15° (vertical) + compression driver × 2
- Connected Cable: Direct cable withdrawal from internal speaker: diameter 8.6mm, conductor cross section: 1.25mm, 4-core cable, 3m
- Operating Temperature: -10°C to +50°C
- Water Protection: IPX4
- Enclosure: Plywood, black, urethane coating
- Front grille: Punched stainless steel, black, paint
- Dimensions: 740 (W) × 433 (H) × 469 (D) mm (excluding connected cable)
- Weight: 51kg (including accessories)
Additional Specifications
| Type | AUDIO DISTRIBUTION MODULE |
|---|---|
| UNSPSC Code | 46171600 |
