Brand: Toa Electronics Inc.
|
SKU:
801485

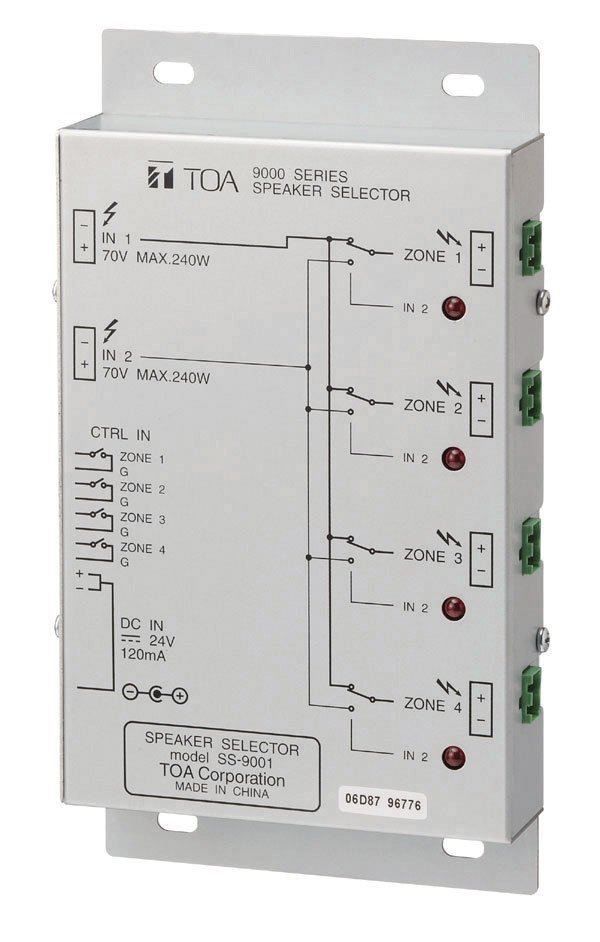

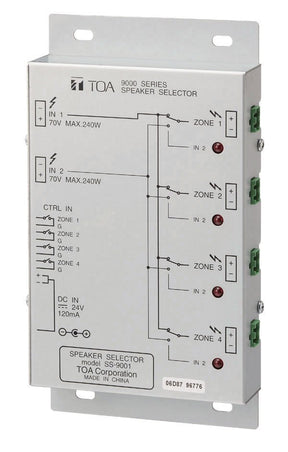

TOA Electronics SS-9001PS | 4 Zone Speaker Selector for 9000M2 Series with Power Supply
Regular price
$208.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics SS-9001PS | 4 Zone Speaker Selector for 9000M2 Seri...
Regular price
$208.82
Unit price
Brand: Toa Electronics Inc.
|
SKU:
801485
Regular price
$208.82
Unit price
Shipping calculated at checkout.
Description
Description
The TOA SS-9001 is a four-zone speaker selector with power supply designed for use with the 9000M2 series. This unit can switch up to four speaker lines on one amplifier output and has two speaker amplifier inputs for Paging / BGM applications.
The SS-9001 works with the built-in 9000 M2 I/O control output or an optional C-001T module (sold separately).
Specifications
Specifications
Includes
- wall-mount bracket x1
- AD-246 model 24VDC power supply x1
- Removable terminal plug (2 pins) x6
- Removable terminal plug (10 pins) x1
- Cord clamp x1
- Mounting screw x4
Specifications
- Power Source: Supplied from the optional AD-246 AC adapter or an external 24VDC / 200mA power supply.
- Current Consumption: 120mA
- Control Signal: No-voltage make contact input (polarized), open voltage: 24VDC, short-circuit current: 3A
- Control Power: 24W or less (70V / 100V line)
- Speaker Terminal: Removable terminal block (2 pins): Removable terminal block (10 pins)
- Operating Temperature: -10°C to +40°C
- Finish Case: Surface-treated steel plate
- Dimensions:112mm (W) X 197mm (H) X 30mm (0)
- Weight: 530g
Additional Specifications
| Type | SPEAKER HOUSINGS AND MOUNTS |
|---|---|
| UNSPSC Code | 52161600 |
