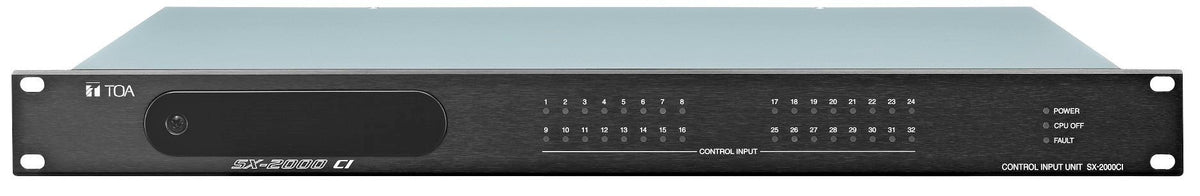

The SX-2000CI is a control input of the matrix system and can be mounted in an EIA equipment rack (1 U size).
Multiple units can be decentralized in a whole system. It is equipped with 32 control input channels. Control input line failure can be detected by connecting resistors to its line. The indicators on the front panel monitor the control input line status. The SX-2000CI has a function to supply a stabilized 24VDC. The SX-2000CI has two power inputs and can support a dual-redundant power supply system. By using a stand-alone mode, system can be configured with only the SX-2000CI, SX-2000CO Control output unit and the power supply unit, permitting the contact data of multiple channels to be transmitted to the remote locations with simple wiring.
Specifications
Specifications
Includes
- Removable terminal plug (16-pin) x4
- Removable terminal plug (4-pin) x1
- Removable terminal plug (2-pin) x1
- Rack mounting screw x4
Specifications
- When operating in matrix mode
- Power Source: Usable power supply unit: AD-011, AD-031B - 24VDC (operational range: 20V - 40VDC) Two power inputs construction enables dual-redundant power supply.
- Current Consumption: 0.7A or less (maximum value in the power operating range); 0.55A or less (when operated on 24VDC)
- Indication: Control input indicator (32), Power indicator, CPU OFF indicator, FAULT indicator
- Control Input: 32 inputs, no-voltage make contact input, open voltage: 24VDC, short-circuit current: 2mA, photo coupler input, removable terminal block (16-pin)
- Surveillance Section for The Control Input Lines: Connection resistance to make the function inactive: 20k? ±5%; Connection resistance to make the function active: 10k? ±5%; Connector cable: Twisted pair cable (shielded type is recommended)
- Maximum cable distance: 10m (32.81ft)
- Input / Output Connector Input: 1 input, Output: 1 output; RJ-45 Connector;
- Connection Cable: Shielded Category 5 twisted pair cable (CAT-5-STP) - (1 pair of data wire + 1 pair of control wire)
- Maximum Cable Distance: 800m (874.89yd)
- Output Voltage: 24VDC ±10% or less
- Maximum Feeding Current: 100mA
- Connector: Removable terminal block (2-pin)
- Operating Temperature: 0°C to +40°C (32°F to 104°F)
- Operating Humidity: 35% to 80% RH (no condensation)
- Panel: Aluminum, black, alumite
- Case: Surface-treated steel plate
- Dimensions: 482 (W) × 44 (H) × 331.5 (D) mm (18.98 × 1.73" × 13.05")"
- Weight: 3.6kgs (7.94lbs)
- When operating in stand-alone mode
- Output Voltage: 24VDC ±10% or less
- Maximum Feeding Current: 100mA
- Connector: Removable terminal block (2-pin)
- Operating Temperature: 0°C to +40°C (32°F to 104°F)
- Operating Humidity: 35% to 80% RH (no condensation)
- Panel: Aluminum, black, alumite
- Case: Surface-treated steel plate
- Dimensions: 482 (W) × 44 (H) × 331.5 (D) mm (18.98 × 1.73" × 13.05")"
- Weight: 3.6kgs (7.94lbs)
