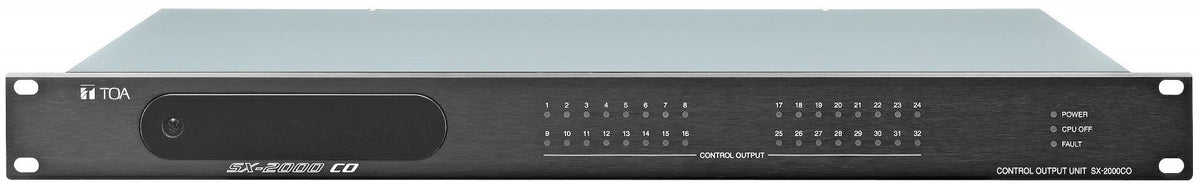

The SX-2000CO is a control output of the matrix system and can be mounted in an EIA equipment rack (1 U size).
Multiple units can be decentralized in a whole system. It is equipped with 32 control output channels. The indicators on the front panel monitor the control output line status. Control output status when the CPU turns off can be set. The SX-2000CO has two power inputs and can support a dual-redundant power supply system. By using a stand-alone mode, system can be configured with only the SX-2000CO, SX-2000CI Control input unit and the power supply unit, permitting the contact data of multiple channels to be transmitted to the remote locations with simple wiring.
Specifications
Specifications
Includes
- Removable terminal plug (16-pin) x4
- Removable terminal plug (4-pin) x1
- Removable terminal plug (2-pin) x1
- Rack mounting screw x4
Specifications
- When operating in matrix mode
- Power Source: Usable power supply unit: AD-011, AD-031B; 24VDC (operational range: 20V - 40VDC); Two power inputs construction enables dual-redundant power supply.
- Current Consumption: 0.34A or less (maximum value in the power operating range); 0.29A or less (when operated on 24VDC)
- Indication: Control input indicator (32), Power indicator, CPU OFF indicator, FAULT indicator
- Control Output: 32 outputs, no-voltage make contact output, relay contact output (withstand voltage: 40VDC, control current: 2mA to 300mA), removable terminal block (6 pins)
- Input / Output Connector Input: 1 input, Output: 1 output; RJ-45 Connector
- Connection Cable: Shielded Category 5 twisted pair cable (CAT 5-STP) - (1 pair of data wire + 1 pair of control wire)
- Maximum Cable Distance: 800m (874.89yds)
- Operating Temperature: 0°C to +40°C (32°F to 104°F)
- Operating Humidity: 35% to 80% RH (no condensation)
- Panel: Aluminum, black, alumite
- Case: Surface-treated steel plate
- Dimensions: 482 (W) × 44 (H) × 331.5 (D) mm (18.98 × 1.73" × 13.05")"
- Weight: 3.6kgs (7.94lbs)
- When operating in stand-alone mode
- Conductor diameter of the main cable vs. maximum cable length (when the RM-200RJ is used)
- Conductor diameter / Maximum Cable Distance
- 0.65mm (0.026") / 160m (175.04yds)
- 0.9mm (0.035") / 320m (350.08yds)
- 1.2mm (0.047") / 570m (623.58yds)
- 0.9mm (0.035") / 640m (700.16yds) - AWG 16 × 3 pairs CPEV (2 pairs for DC and 1 pair for data)
- 1.2mm (0.047") / 800m (875.20yds) - AWG 16 × 3 pairs CPEV (2 pairs for DC and 1 pair for data)"""
Additional Specifications
| Type | CONTROL UNITS |
|---|---|
| UNSPSC Code | 46171600 |
