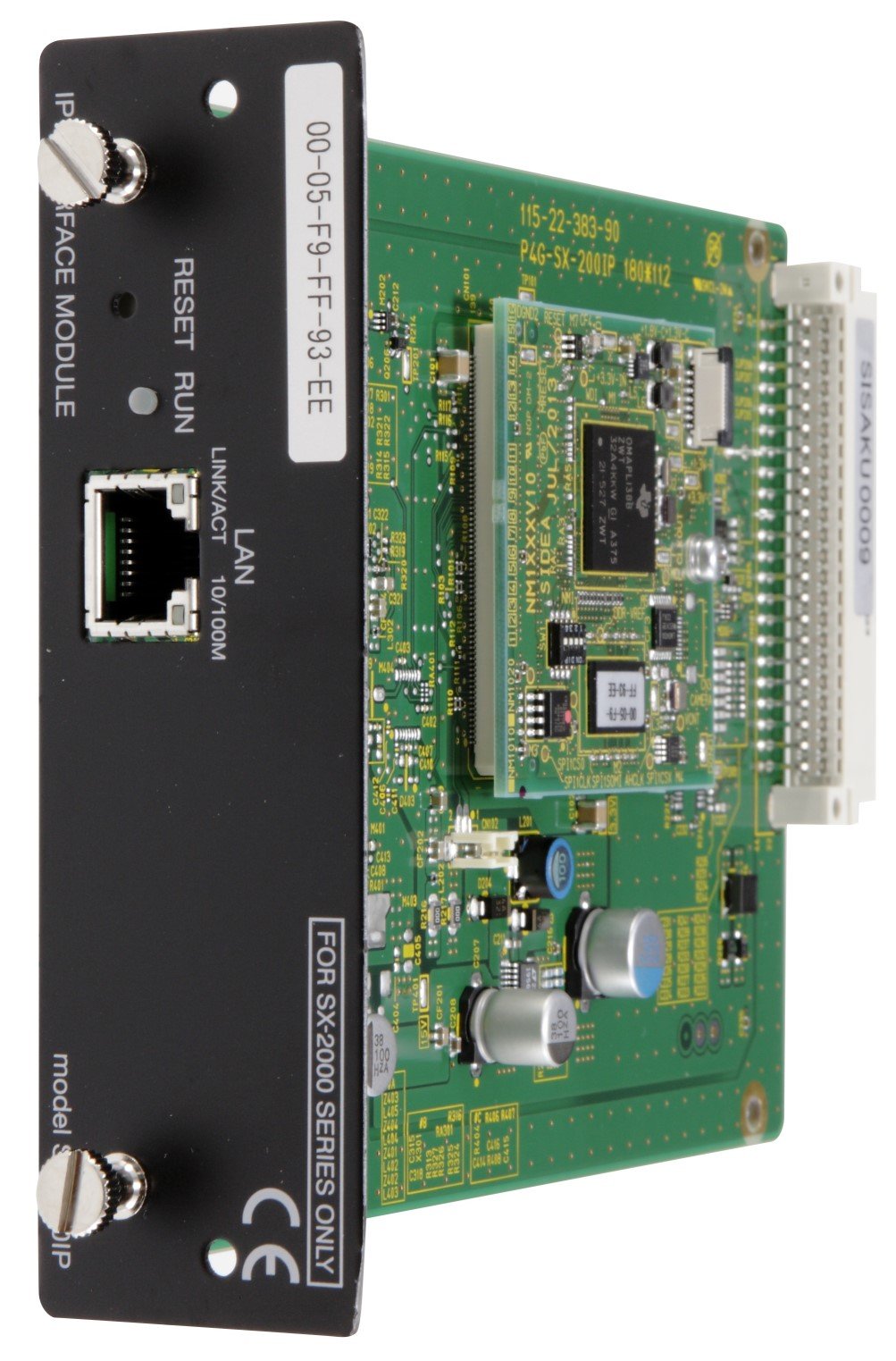

TOA Electronics SX-200IP | Interface Module for Interfaceing SX-2000 & N-8000
Regular price
$1,137.77
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics SX-200IP | Interface Module for Interfaceing SX-200...
Regular price
$1,137.77
Unit price
Brand: Toa Electronics Inc.
|
SKU:
1019736
Regular price
$1,137.77
Unit price
Description
Description
Installed in the SX-2100AI Audio input unit of the SX-2000 series and connected to a network (LAN or WAN), the SX-200IP allows paging announcements to be made to the SX-2000 system from the N-8000 series' station(s) (N-8600MS and N-8610RM) employing the packet audio technology.
Specifications
Specifications
Specifications
- Network I / F: 10BASE-T / 100BASE-TX (Automatic - Negotiation)
- Network protocol: TCP / IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
- Connector: LAN: RJ-45 connector
- Voice sampling frequency: 16kHz, 8kHz (controllable on the software)
- 48 kHz sample rate is used for SX-2000 system only.
- Quantifying bit number: 16-bits
- Voice encoding method: Sub-band ADPCM, Cryptosystem
- Voice packet loss recovery: Silence insertion
- Audio delay time: 80ms, 320ms (controllable on the software)
- Indicator: Operation indicator (RUN)
- Operating Temperature: 0°C to +40°C (32°F to 104°F)
- Operating Humidity: 90% RH or less (no condensation)
- Finish: Panel: Pre-coated steel plate, black, 30% gloss
- Dimensions: 35 (W) × 119.5 (H) × 178.4 (D) mm (1.38" × 4.7" × 7.02")
- Weight: 150g (0.33lbs)
Additional Specifications
| Type | PC BOARDS |
|---|---|
| UNSPSC Code | 46171600 |
