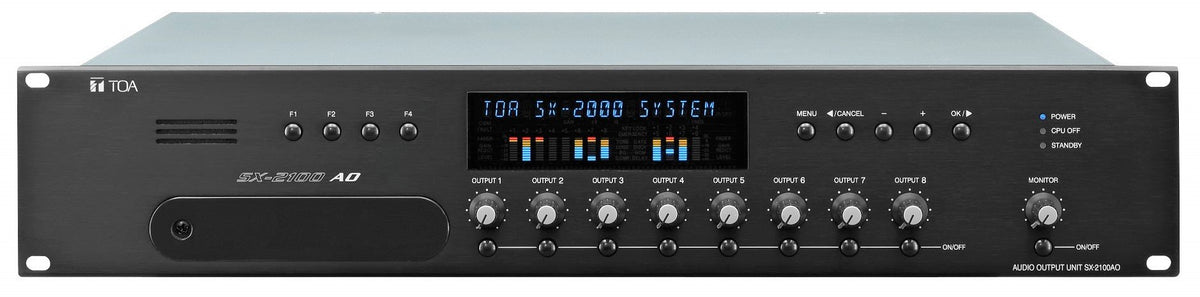

TOA Electronics SX-2100AO | Audio Output Unit for SX-2000 Series Audio Management System
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics SX-2100AO | Audio Output Unit for SX-2000 Series Au...
Description
Description
The SX-2100AO is an audio output of the matrix system and can be mounted in an EIA equipment rack (2 U size).
Multiple units can be decentralized in a whole system. It is equipped with eight audio outputs, and two inputs can be mixed and output. It is also equipped with eight control inputs, and eight control outputs. The SX-2100AO receives audio signals from the audio input unit via digital transmission, but an analog audio input function (1 channel) enables simultaneous all-zone calls for use in emergency situations. Audio output levels are indicated on the level meters provided for each output channel. Volumes can be adjusted for each channel using the volume controls on the front panel or the SX-2000 software. The volume controls can be locked. Any output channel can be monitored using the internal speaker. Two channels of local audio inputs with control inputs are provided as the dedicated audio inputs. Its functions include an amplifier switching function that automatically switches the power amplifier to the standby amplifier if the power amplifier fails, and a surveillance function that self-diagnoses the speaker lines. Equipped with two channels of interfaces for connecting to the Emergency Power Supply units, making it possible to configure the system to operate during a power failure. One control IN/OUT interface allows the number of control inputs and outputs to be increased. The SX-2100AO has two power inputs and can support a dual-redundant power supply system.
Specifications
Specifications
Specifications
- Power Source: Usable power supply unit: VX-200PS; 24VDC (operational range: 20V - 40VDC) - Two power inputs construction enables dual-redundant power supply.
- Current Consumption: 1.7A or less (maximum value in the power operating range): 1.2A or less (when operated on 24VDC)
- Note: But except current consumption of the external equipment of which power is supplied from the unit.
- Indication: 18 alphanumeric characters, Level indication (8 outputs, monitor), Status indicators, Power indicator, Standby indicator, CPU OFF indicator
- Operation: Function button, Output level control, Monitor speaker volume control, ON / OFF switch, Operation button
- Audio Output: 8 outputs and standby AMP, 0dB*, suitable load: 600? or above, electronically-balanced, RJ-45 Connector; monitoring possible using built-in speaker
- Frequency response: 20Hz - 20kHz
- Sampling frequency: 48kHz
- D / A converter: 24-bit
- Connection Cable: Shielded Category 5 twisted pair cable (CAT 5-STP)
- Maximum Cable Distance: 5m (16.4ft)
- Audio Input: 2 inputs, 0dB*, 10k?, electronically-balanced, RJ-45 Connector
- A/D converter: 24-bit
- Control Input: 2 inputs, no-voltage make contact input, open voltage: 12VDC, short-circuit current: 2 mA, photo coupler input
- Connection Cable: Shielded Category 5 twisted pair cable (CAT 5-STP)
- Network I / F: 2 100BASE-TX circuits, RJ-45 connector, decentralized installation possible
- Connection Cable / Device: Shielded Category 5 twisted pair cable (CAT 5-STP) - To be connected via the switching hub specified by TOA
- Note: This network must be made completely independent from other LAN.
- Maximum Cable Distance: 100m (109.36yds) (between this unit and a switching hub)
- Input / Output Connector Input: 1 input, RJ-45 connector
- Output: 1 output, RJ-45 connector
- Connection Cable: Shielded Category 5 twisted pair cable (CAT 5-STP) - (1 pair of audio wire + 1 pair of control wire (CPU OFF) + 1 pair of control wire (system reset/standby) + 1 pair of connection check wire)
- Maximum Cable Distance: Total length of analog link: 800m (874.89yds)
Additional Specifications
| Type | CONTROL UNITS |
|---|---|
| UNSPSC Code | 46171600 |
