Brand: Toa Electronics Inc. | SKU: 305548

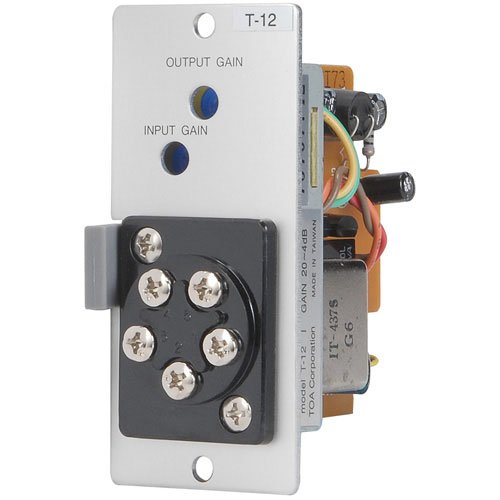

TOA Electronics T-12S | Unbalanced Line Input Module for 900-Series Amplifier with Input Mute-Receive

$168.99

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

For unbalanced, line level equipment. Transformer-isolated output of module’s input signal for feeding remote equipment such as mixers, amps, tape recorders & telephone system music-on-hold inputs. Responds to mute bus activation (output uninterrupted).

Specifications

Controls / Functions: Input and Output Gain Controls; Mute
Performance Input: 220?
Input Sensitivity: -18 ~ 0dBu
Gain (Adjustable): 4 ~ 20dB
Signal to Noise (S/N): 85dBu (S/N)
Physical Connector: Screw Terminals
Power Source: 24VDC
Current Consumption: Less than 38mA
Input Sensitivity (Rated Output 100mV ): 100 - 1,000mV (adjustable)
Noise Output (20Hz - 20kHz BPF): Less than 50µV
Distortion: Less than 0.1%
Frequency Response: 20Hz - 20kHz
Line Output Level: 70 - 800mV (adjustable)
Muting Time": 3 - 5sec
Signal Muting Level: More than 60dB
Input Connector: 5-Pin screw terminal
Output Connector: 6-Pin card edge-connector
Dimensions: 35 (W) × 78 (H) × 88 (D) mm
Weight: 95g

Specifications

Controls / Functions: Input and Output Gain Controls; Mute
Performance Input: 220?
Input Sensitivity: -18 ~ 0dBu
Gain (Adjustable): 4 ~ 20dB
Signal to Noise (S/N): 85dBu (S/N)
Physical Connector: Screw Terminals
Power Source: 24VDC
Current Consumption: Less than 38mA
Input Sensitivity (Rated Output 100mV ): 100 - 1,000mV (adjustable)
Noise Output (20Hz - 20kHz BPF): Less than 50µV
Distortion: Less than 0.1%
Frequency Response: 20Hz - 20kHz
Line Output Level: 70 - 800mV (adjustable)
Muting Time": 3 - 5sec
Signal Muting Level: More than 60dB
Input Connector: 5-Pin screw terminal
Output Connector: 6-Pin card edge-connector
Dimensions: 35 (W) × 78 (H) × 88 (D) mm
Weight: 95g

Additional Specifications

UNSPSC Code	46171600

Documents and Downloads

TOA T-12S Data Sheet
