Brand: Toa Electronics Inc.
|
SKU:
921351

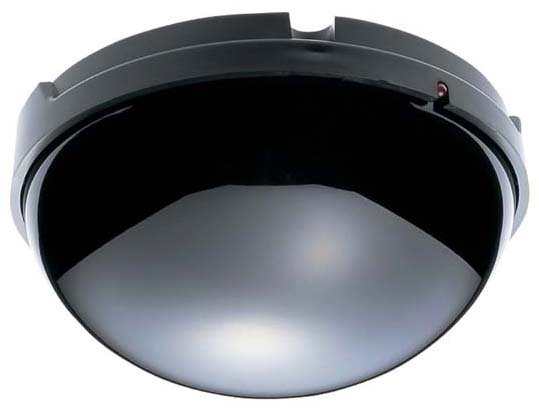

TOA Electronics TS-907 | Infrared Transceiver for TS-800UL / TS-900UL Conference System, 16' to 23' Range
Regular price
$1,133.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics TS-907 | Infrared Transceiver for TS-800UL / TS-900...
Regular price
$1,133.75
Unit price
Brand: Toa Electronics Inc.
|
SKU:
921351
Regular price
$1,133.75
Unit price
Shipping calculated at checkout.
Description
Description
The TS Series infrared conference system ideal for conferences and meetings in corporate, educational, and hotel applications. This infrared transceiver for the TS-800UL or TS-900UL installs in a ceiling or wall, 16 to 23 feet. Connect up to twelve transceivers using optional antenna distributors model YW-1022Y (1x2) and YW-1024Y (1x4). Coaxial cable with BNC connectors.
Specifications
Specifications
Includes
- Mounting bracket x1
- Stand mounting bracket x1
- Stand mounting bracket attaching screw x3
- Thread Adapter (U5/16 — NS5/8) x1
Specifications
- Power Source: 24VDC (supplied from the optional TS-900 or TS-800)
- Current Consumption: Max. 180mA
- Infrared Emitter / Detector Wavelength: 870nm (AM: Brightness modulation)
- Modulation Method: Frequency modulation
- Carrier Frequency
- Transmission: Audio channel 1: 7.35MHz
- Audio channel 2: 8.10MHz
- Audio channel 3: 8.55MHz
- Audio channel 4: 9.15MHz
- Control channel: 6.45MHz
- Reception: Bose language channel: 1.95MHz
- Translation language channel: 2.25MHz
- Acceptance Angle: Vertical: 90° (45° + 45°), Horizontal: 360°
- Emission Angle: Vertical: 90° (45° + 45°), Horizontal: 360°
- Communication Area: Approx. 6m in radius from the point underneath the unit (Ceiling height: 5 — 7m)
- Connection Terminal: BNC jack
- LED Indicator: Power
- Operating Temperature: 0°C to +40°C
- Finish: Dome: PC resin, visible light out filter
- Bose: ABS resin, block
- Dimension: Dia. 120 X 71.3 (H)mm
- Weight: 230g (unit only)
Additional Specifications
| UNSPSC Code | 52161600 |
|---|
