Brand: Toa Electronics Inc.
|
SKU:
801592

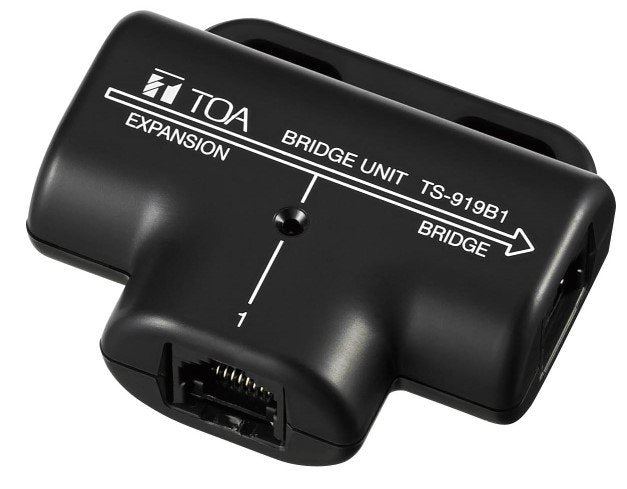

TOA Electronics TS-919B1 | Single Wire Station Bridge Unit for TS-910 Controller
Regular price
$167.32
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics TS-919B1 | Single Wire Station Bridge Unit for TS-9...
Regular price
$167.32
Unit price
Brand: Toa Electronics Inc.
|
SKU:
801592
Regular price
$167.32
Unit price
Description
Description
The TS-919B1 is a Bridge unit for connecting a single Wired Conference unit of the TS-811, TS-911, TS-812, or TS-912. It connects to the conference unit with a Category 5 cable.
Specifications
Specifications
Specifications
- Power Source:: 24VDC (supplied from the TS-918 Expansion Unit (option))
- Current Consumption: Max. 16mA
- Branching loss
- Upstream: 16.5dB
- Downstream: 16dB
- Insertion loss:
- Upstream: 1dB
- Downstream: 0.5dB
- Connection Terminal: Communication cable connection terminal: RJ-45 connector × 2
- Conference unit connection terminal: RJ-45 connector
- LED Indicator: Connection status indicator
- Number of Connectable Chairman / Delegate Units: 1 unit
- Operating Temperature: 0°C to +40°C (32°F to 104°F)
- Operating Humidity: 90% RH or less (no condensation)
- Finish: ABS resin, black
- Dimensions: 68 (W) × 60.3 (H) × 24 (D) mm (2.68" × 2.37" × 0.94")
- Weight: 40g (1.41oz)
Additional Specifications
| Type | EXPANSION MODULE |
|---|---|
| UNSPSC Code | 43201500 |
