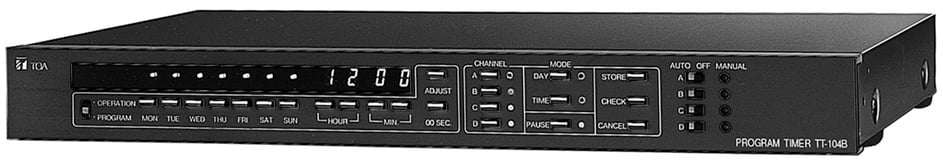

TOA Electronics TT-104B 304L | Program Timer with 4 Independent Outputs

Specifications

• Power Source: 110 - 120VAC, 50/60Hz
• Power Consumption: 3W
• Displayed Contents: Day of the week, hour and minute
• Programmable Item: Day of the week, hour, minute, output channel
• Number of Channels: 4 channels (A,B,C,D)
• Output System: No-voltage (DRY) make contact (5-second pulse make output)
• Output Capacity: 24VDC, 0.5A
• Output Terminal: M4 screw terminal, distance between barriers: 9mm (0.35)"
• Program Capacity: 30 steps per channel
• Clock Accuracy: +/- 5 seconds per month
• Power Outage Protection Period: 100 hours
• Operating Temperature: 32°F to 122°F (0°C to +50°C)
• Finish Panel: Aluminum, black, 30% gloss, paint
• Case: Pre-coated steel plate, black
• Dimensions (WxHxD): 16.54" × 1.87" × 9.7" (420mm × 47.5mm × 246.5mm)
• Weight: 5.51lbs (2.5kg)
• Optional Rack-mounting bracket: MB-15B
