Brand: Toa Electronics Inc. | SKU: 305539

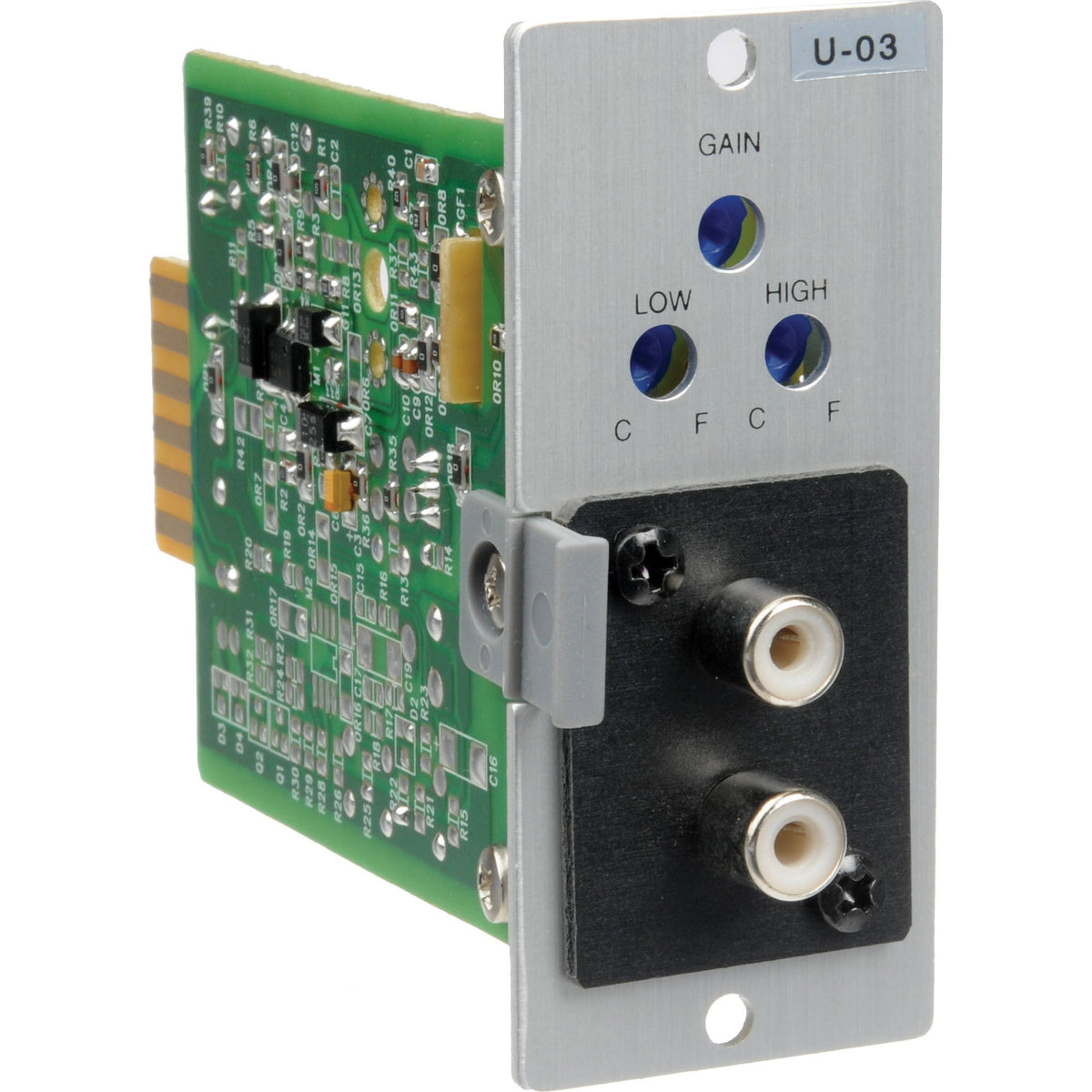

TOA Electronics U-03R | Unbalanced Line Input Module with High / Low-Cut Filters, Dual RCA Female Jacks

$93.21

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

For unbalanced, line level equipment such as AM / FM tuners, tape decks and CD players. Choose from two connector types: dual RCA jacks with passive summing or removable terminal block.

The U-O3R is an AUX module to be used in conjunction with the 900 series and AX-1000 amplifier.

It has a low-cut and a high-cut filter.

Specifications

Power Source: 24V DC
Current Consumption: Under 8mA
Input Sensitivity (Rated Output 100mV ): 100 — 3,600mV (adjustable)
Low Cut Filter (100Hz ): -5 to -15dB
High Cut Filter (10kHz ): -7 to -13dB
Noise Output (20Hz — 20kHz BPF): Under 10uV
Distortion: Under 0.05%
Frequency Response: 20Hz — 20kHz
Input Connector: RCA pin jacks
Output Connector: 6P cord edge-connector
Dimensions: 35 (W) X 78 (H) X 88 (D)mm
Weight: 50g

Specifications

Power Source: 24V DC
Current Consumption: Under 8mA
Input Sensitivity (Rated Output 100mV ): 100 — 3,600mV (adjustable)
Low Cut Filter (100Hz ): -5 to -15dB
High Cut Filter (10kHz ): -7 to -13dB
Noise Output (20Hz — 20kHz BPF): Under 10uV
Distortion: Under 0.05%
Frequency Response: 20Hz — 20kHz
Input Connector: RCA pin jacks
Output Connector: 6P cord edge-connector
Dimensions: 35 (W) X 78 (H) X 88 (D)mm
Weight: 50g

Additional Specifications

UNSPSC Code	46171600

Documents and Downloads

TOA U-03R Data Sheet
