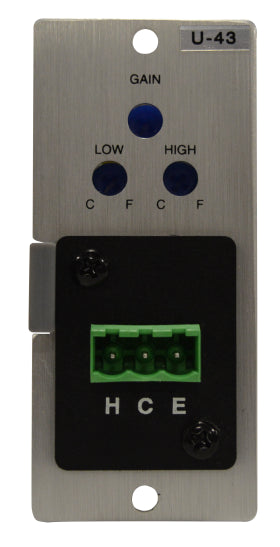

TOA Electronics U-43S | Unbalanced Line Input Module with Mute-Send...
Description
Description
The TOA U43S is an AUX module to be used in conjunction with the 900 Series and AX-1000 amplifier. It has a voice activated muting control output, unbalanced line input with High/Low Filters and a Mute-Send control.
Used for unbalanced line level equipment such as AM/FM tuners, tape decks and CD players. Signal at input terminals activates mute bus. Choose from two connector types: dual RCA jacks with passive summing or removable terminal block.
Specifications
- Controls / Functions: Gain Control; High and Low Cut Filters; Mute send sensitivity
- Performance Input: 220?
- Input Sensitivity: -17 ~ +13dBu
- Gain (Adjustable): -30 ~ -1dB
- Signal to Noise (S/N): 55dBu
- Physical Connector: Removable Terminal Block
- Power Source: 24VDC
- Current Consumption: Less than 15mA
- Input Sensitivity (Rated Output 100mV ): 100 - 3,600mV (adjustable)
- Low Cut Filter (100Hz ): -5 - -15dB
- High Cut Filter (10kHz ): -7 - -13dB
- Noise Output (20Hz - 20kHz BPF): Less than 10µV
- Distortion: Less than 0.05%
- Frequency Response: 20Hz - 20kHz
- Signal-Activated Muting: 6 - 15mV
- Connectors: RCA phone jack, 6-Pin card edge-connector
- Dimensions: 35 (W) × 78 (H) × 88 (D) mm
- Weight: 50g
Specifications
Specifications
Specifications
- Controls / Functions: Gain Control; High and Low Cut Filters; Mute send sensitivity
- Performance Input: 220?
- Input Sensitivity: -17 ~ +13dBu
- Gain (Adjustable): -30 ~ -1dB
- Signal to Noise (S/N): 55dBu
- Physical Connector: Removable Terminal Block
- Power Source: 24VDC
- Current Consumption: Less than 15mA
- Input Sensitivity (Rated Output 100mV ): 100 - 3,600mV (adjustable)
- Low Cut Filter (100Hz ): -5 - -15dB
- High Cut Filter (10kHz ): -7 - -13dB
- Noise Output (20Hz - 20kHz BPF): Less than 10µV
- Distortion: Less than 0.05%
- Frequency Response: 20Hz - 20kHz
- Signal-Activated Muting: 6 - 15mV
- Connectors: RCA phone jack, 6-Pin card edge-connector
- Dimensions: 35 (W) × 78 (H) × 88 (D) mm
- Weight: 50g
Additional Specifications
| UNSPSC Code | 52161600 |
|---|
