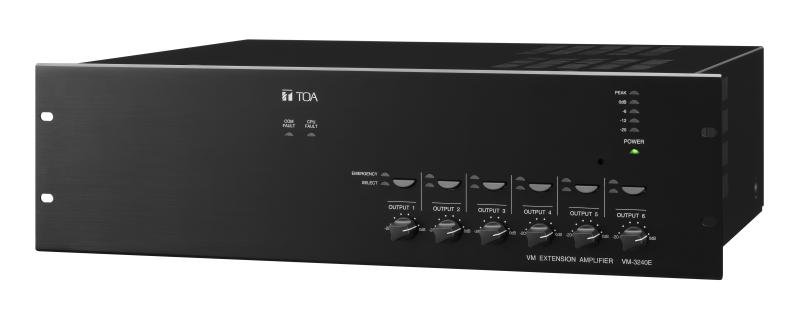

TOA Electronics VM-3240E-AMQ | Extension Amplifier, 240W, 3RU
Regular price
$2,946.57
Unit price
Brand: Toa Electronics Inc.
|
SKU:
801528
Regular price
$2,946.57
Unit price
Description
Description
The VM-3240E is a multi-functional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with the speaker output section which has an internal attenuator and 6-output selector. In addition, the unit features the surveillance function which automatically checks the system for failures.
Specifications
Specifications
Includes
- Power cable (2m (6.56ft)) x1
- Link cable (3m (9.84ft)) x2
- Plastic foot x4
- Plastic foot mounting screw x4
- Removable terminal plug (14-pin) x3
- Removable terminal plug (16-pin) x1
Specifications
- Power Source: 230VAC, 50 / 60Hz
- Power Consumption: 600W (with rated output signal), 260 W (according to EN60065)
- Rated Output: 240W
- Frequency Response: 50Hz - 20kHz, ±3 dB (at 1/3 rated output)
- Distortion: 0.7% or less (at rated output, 1kHz)
- S / N Ratio: 85dB or more
- Input: External amplifier input: 100V line, removable terminal block (14-pin)
- Speaker output 1 - 2: Max. (240W) per output
- Speaker output 3 - 6: Max. (120W) per output
- Speaker output 1 - 6: Total within 240W, removable terminal block (14-pin)
- Allowable minimum load: 500? (20W) at 100V line for speaker line failure detection
- Direct output: Direct output from internal or external amplifier, removable terminal block (16-pin)
- Input: Connecting the VM-3240VA or VM-3360VA, RJ-45 female connector
- Output: Connecting the VM-3240E or VM-3360E, RJ-45 female connector
- Maximum distance: 800m (874.89yds)
- Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT 5-STP)
- EXT PA Link: Connecting the VP-2241, RJ-45 female connector
- Maximum distance: 5m (16.4ft)
- Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT 5-STP)
- General Control: Input 1 - 8: No-Voltage make contact input, open voltage: 24VDC, short-circuit current: 2mA or less, removable terminal block (14-pin)
- Output 1 - 8: Isolated open collector output, withstand voltage: 30VDC, operating current: 10mA or less, removable terminal block (14-pin)
- Emergency Control Input 1 - 5: No-Voltage make contact input, open voltage: 24VDC, short-circuit current: 2mA or less, RJ-45 female connector
- Input 6: Isolated voltage input, Inactive: -24V ±20%, Active: +24V ±20%, RJ-45 female connector
- Status out: Relay contact output, withstand voltage: 40VDC, operating current: 2 - 300mA, RJ-45 female connector
- ATT Control: Relay contact 1-6, 125VAC or 30VDC, total under 5A, removable terminal block (16-pin)
- Power Input / Output Power in: Connecting the VX-2000DS only (operating range: 20 - 40VDC)
- PS out: 28VDC / 18A
- M4 screw terminal, distance between barriers: 11mm (0.43")
- DC24V Output 24VDC, Maximum feeding current 0.3A
- Ds Link: Connecting the VX-2000DS, RJ-45 female connector
- Maximum distance: 5m (16.4ft)
- Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT 5-STP)
- Operating Temperature: -5°C to +45°C (23°F to 113°F)
- Operating Humidity: 5% to 95% RH (no condensation)
- Panel: Aluminum, hairline, black
- Case: Surface-treated steel plate, black, paint
- Dimensions: 482 (W) × 132.6 (H) × 407 (D) mm (18.98" × 5.22" × 16.02")
- Weight: 16.5kgs (36.38lbs)
Additional Specifications
| Type | AUDIO AMPLIFIER |
|---|---|
| UNSPSC Code | 52161600 |
