Brand: Toa Electronics Inc. | SKU: 977825

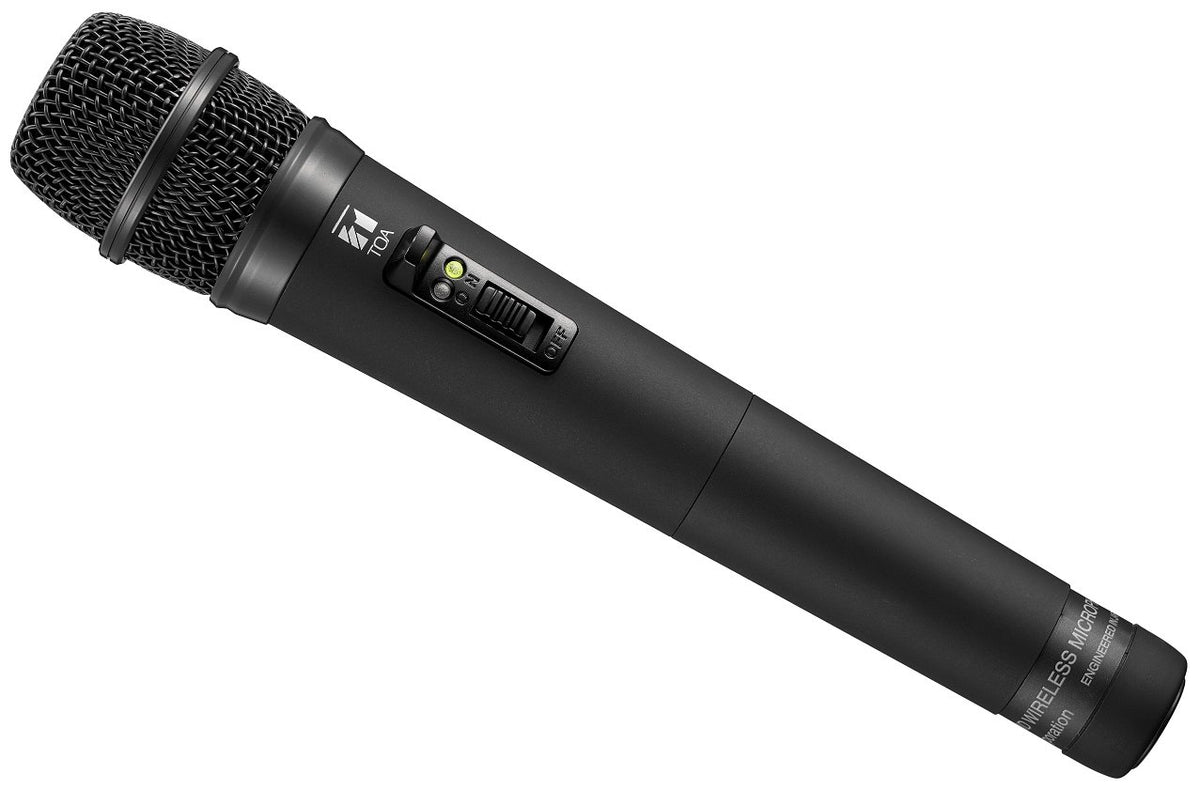

TOA Electronics WM-5225-AM-M1D00 | UHF Wireless Handheld Condenser Microphone

$258.92

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The WM-5225 Wireless Microphone employs an electret condenser microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.

Specifications

Includes

Microphone holder W 3/8" (with stand adapter) x1
Screw driver x1
Storage case x1

Specifications

Microphone Element
Electret condenser microphone unit: Unidirectional
Modulation: Frequency modulation
Frequency Range: 576 - 937.5MHz*, UHF
Channel Selectable: 64 channels (the number of channels may differ from country to country)
RF Carrier Power: Less than 50mW (Factory preset 10mW ERP)
Tone Frequency: 32.768kHz
Oscillator: PLL synthesized
Maximum Input Level: 126dB SPL
Maximum Deviation: ± 40kHz
Audio Frequency Response: 100Hz - 15kHz
Dynamic Range: 95dB or more (with WT-5800)
Battery: WB-2000 rechargeable battery (option) or "AA" alkaline dry cell battery
Battery Life: Approx. 13hrs (when the WB-2000 rechargeable battery is used); Approx. 10hrs (when the alkaline battery is used)
Indicator: Power / Battery lamps
Antenna: Built-in type
Operating Temperature: -10°C to +50°C (14°F to 122°F) (except battery)
Operating Humidity: 30% to 85% RH (no condensation)
Finish: Resin, coating
Dimensions: diameter 43.6mm x length 231.5mm ( dia 1.72" × L 9.11")
Weight: 180g (0.4lbs) (with battery)

Additional Specifications

UNSPSC Code	52161600
