Brand: Toa Electronics Inc.
|
SKU:
9789283

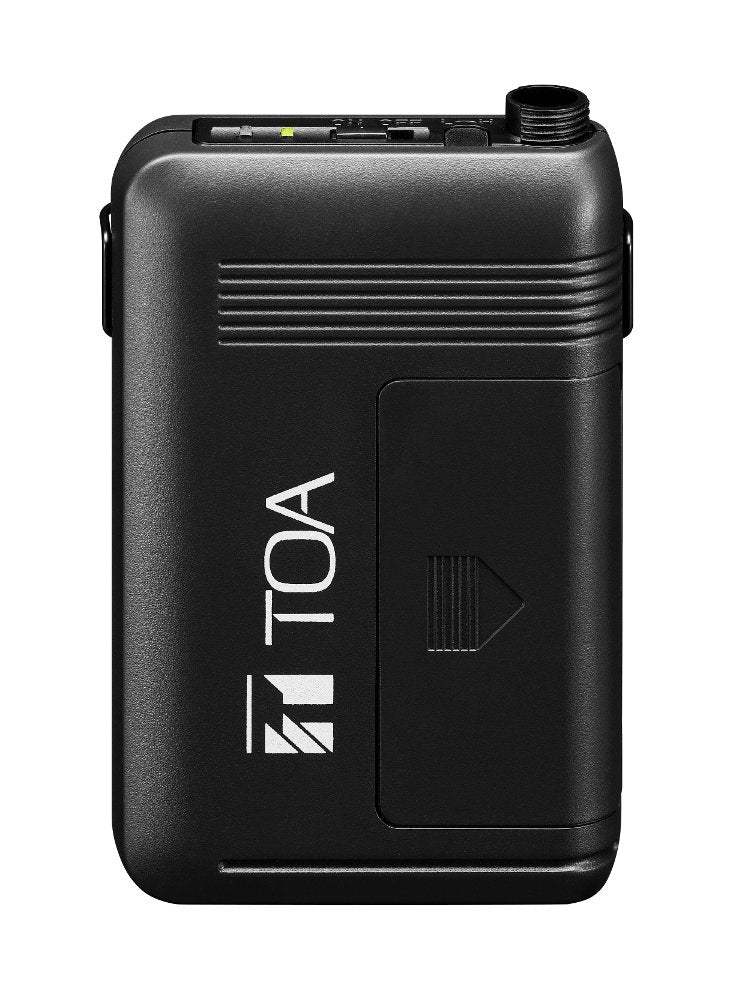

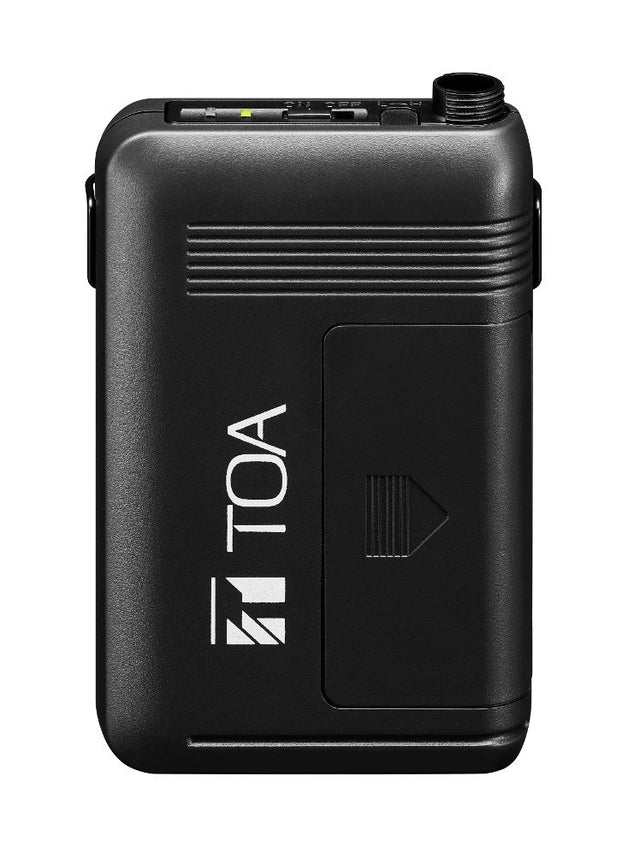

TOA Electronics WM-5325-AM-M1D00 | 64 Channel Wireless Bodypack Transmitter
Regular price
$198.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics WM-5325-AM-M1D00 | 64 Channel Wireless Bodypack Tra...
Regular price
$198.70
Unit price
Brand: Toa Electronics Inc.
|
SKU:
9789283
Regular price
$198.70
Unit price
Shipping calculated at checkout.
Description
Description
The WM-5325 wireless transmitter has been manufactured for use with UHF system. It is for use in speech reinforcement applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.
Specifications
Specifications
Includes
- Screw driver x1
- Storage case x1
- Neck strap x1
Specifications
- Modulation: Frequency modulation
- Frequency Range: M1: 506 - 538MHz, H01: 576 - 606MHz, UHF
- Channel Selectable: 64 channels (the number of channels may differ from country to country)
- RF Carrier Power: 50mW or less
- Tone Frequency: 32.768kHz
- Oscillator: PLL synthesized
- Maximum Input Level: -14dB to -29dB (*1) (Audio level control: Min. to Max.)
- Maximum Deviation: ± 40kHz
- Audio Frequency Response: 100Hz - 15kHz
- Battery: WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or "AA" alkaline dry cell battery
- Battery Life: Approx. 13hrs (when the WB-2000 rechargeable battery is used); Approx. 10hrs (when the alkaline battery is used)
- Indicator: Power / Battery lamps
- Antenna: Built-in type
- Connector: diameter 3.5mm (0.14") mini plug
- Operating Temperature: -10°C to +50°C (14°F to 122°F) (except battery)
- Operating Humidity: 30% to 85% RH (no condensation)
- Finish: Resin, coating
- Dimensions: 62 (W) × 102.5 (H) × 23 (D) mm (2.44" × 4.04" × 0.91")
- Weight: 90g (0.2lbs) (with battery)
Additional Specifications
| UNSPSC Code | 52161520 |
|---|
