Brand: Toa Electronics Inc. | SKU: 965201

TOA Electronics WS-5325U-H01US | 16 Channel UHF Wireless System with Unidirectional Lavalier

$468.23

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

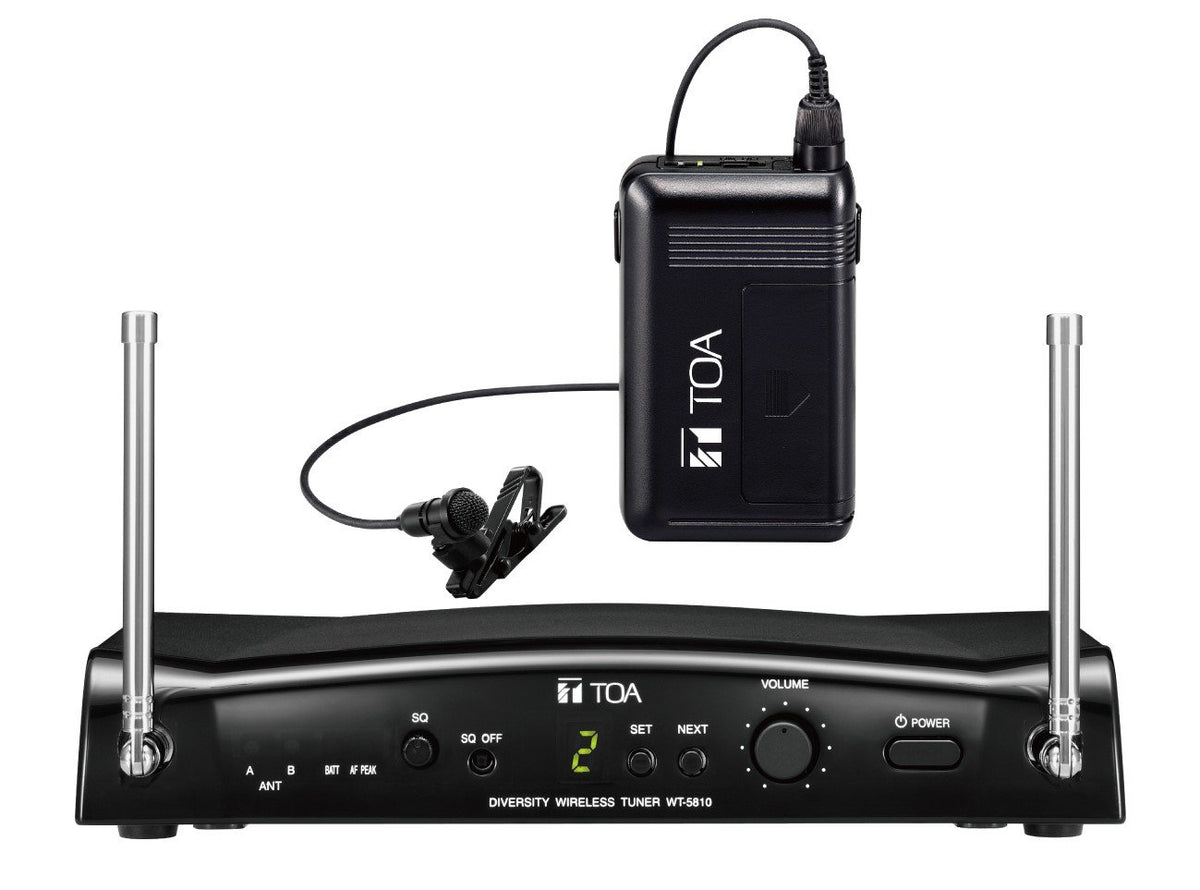

The WS-5325U includes a wireless transmitter WM-5325, a lavalier microphone YP-M5300, and a diversity wireless tuner WT-5810. The WM-5325 wireless transmitter has been manufactured for use with a UHF system. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The YP-M5300 employs an electret condenser microphone element and has been designed for use in speech reinforcement applications. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

Specifications

Includes

AC adapter (2) x1
Screw driver x1
Strage case x1
Neck strap x1

Specifications

Product Composition:
Wireless transmitter WM-5325 x1
Lavalier microphone YP-M5310 x1
Diversity wireless tuner WT-5810 x1
Frequency Range: 576 - 865MHz (*1), UHF
Tone Frequency: 32.768kHz
Operating Temperature: -10°C to +50°C (14°F to 122°F)
Wireless transmitter
(*3) 0dB = 1V
Modulation: Frequency modulation
Channel Selectable: 64 channels (the number of channels may differ from country to country)
RF Carrier Power: Less than 50mW (Factory preset 10mW ERP)
Oscillator: PLL synthesized
Maximum Input Level: -14dB to -29dB (*3) (Audio level control: Min. to Max.)
Battery: WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or "AA" alkaline dry cell battery
Battery Life: Approx. 13hrs (when the WB-2000 rechargeable battery is used); Approx. 10hrs (when the alkaline battery is used)
Indicator: Power / Battery lamps
Antenna: Built-in type
Finish: Resin, coating
Dimensions: 62 (W) × 102.5 (H) × 23 (D) mm (2.44 × 4.04" × 0.91")
Weight: 90g (0.2lbs) (with battery)
Lavalier microphone
Microphone Element: Electret condenser type: Omnidirectional
Sensitivity: -64dB ±3dB (0dB = 1V / 0.1Pa, @ 1kHz)
Cord Length: 1.3m (4.27ft)
Finish: Dark black
Weight: 20g (0.71oz) (cable included)
Diversity wireless tuner
(*3) 0dB = 1V
Power Source: AC mains (supplied AC adapter must be used)
Power Consumption: 130mA (12VDC)
Channel Selectable: 16 channels
Receiving System: Double super-heterodyne
Diversity System: Space diversity
MIC: -60dB (*3), 600?, balanced, XLR-3-32 type connector
LINE: -20 dB (*3), 600?, unbalanced, phone jack
Mixing Input: -20dB (*3), 10k?, unbalanced, phone jack
Antenna: Whip antenna
Receiving Sensitivity: 90dB or more, Signal to Noise ratio (20dBµV input, 40kHz deviation)
Squelch Sensitivity:16 - 40dBµV variable
Squelch System: Using together of noise SQ, carrier SQ and tone SQ
Indicator: ANT A / B, Audio (peak), Battery alarm, Channel number
Channel Check: Usable frequencies scanning
Signal to Noise Ratio: 104dB or more (A-weight, unbalanced output)
Harmonic Distortion: 1% or less (typical)
Frequency Response: 100Hz - 15kHz, ±3dB
Finish: Resin, black
Dimensions: 206 (W) × 40.6 (H) × 152.7 (D) mm (8.11 × 1.6" × 6.01") (excluding antenna)
Weight: 590g (1.3lbs)

Additional Specifications

UNSPSC Code	52161600
