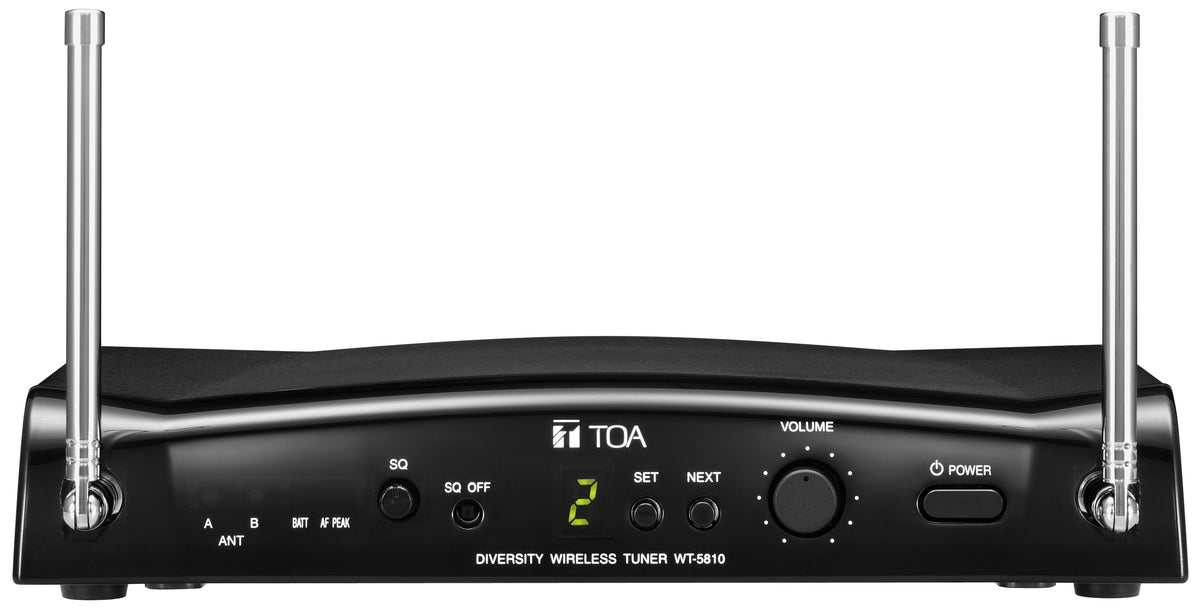

TOA Electronics WT-5810-AM-RM1D00 | 16 Channel Space Diversity Portable Wireless Reciver, M Freq

Includes

• AC adapter (*3) x1

Specifications

• Power Source: AC mains (supplied AC adapter must be used)
• Power Consumption: 250mA (12VDC)
• Receiving Frequency: 576 - 865MHz (*2), UHF
• Channel Selectable: 64 selectable frequencies
• Receiving System: Double super-heterodyne
• Diversity System: Space diversity (true diversity)
• Mixing Output
• MIC / LINE (selectable): -60dB (*1) (MIC) / -20dB (*1) (LINE), 600?
• phone jack (unbalanced), 600? XLR-3-32 type connector (balanced)
• Mixing Input: -20dB (*1), 10k?, unbalanced, phone jack
• Antenna Input: 75?, BNC (phantom powering for antenna), 9VDC, 30mA (max)
• Antenna Output: 75?, BNC (Gain 0dB)
• Receiving Sensitivity: 90dB or more, Signal to Noise ratio (20dBµV input, 40kHz deviation)
• Squelch Sensitivity: 16 - 40dBµV variable
• Squelch System: Using together of noise SQ, carrier SQ and tone SQ
• Tone Frequency: 32.768kHz
• Indicator: Audio (6 step), RF (6 step), ANT A/B, Audio (peak), Battery alarm
• Channel Check: Usable frequencies scanning
• Signal to Noise Ratio: 110dB or more (A-weight, unbalanced output)
• Harmonic Distortion: 1% or less (typical)
• Frequency Response: 100Hz - 15kHz, ±3dB
• Operating Temperature: -10°C to +50°C (14°F to 122°F)
• Operating Humidity: 30% to 85% RH
• Finish: Resin, black
• Dimensions: 210 (W) × 44 (H) × 205.1 (D) mm (8.27" × 1.73" × 8.07")
• Weight: 700g (1.54lbs)

Additional Specifications

• TOA WT-5810-AM RM1D00 Operating instructions
• TOA WT-5810-AM RM1D00 Data Sheet
