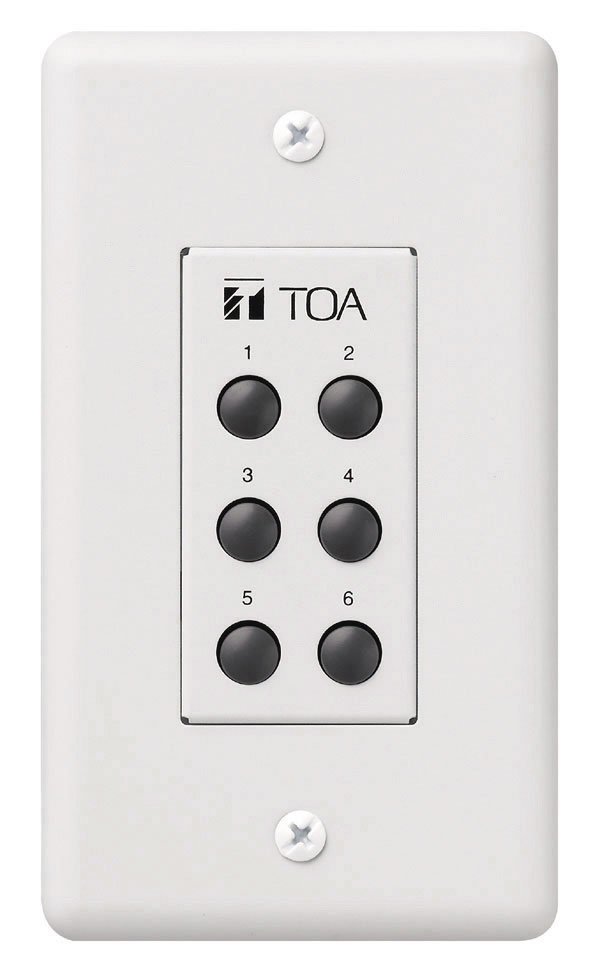

TOA Electronics ZM-9001 | 6-Switch Remote Control Input Selector for 9000 Series

$97.22

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Remote Panel for the 9000 Series. Designed for exclusive use with the 9000M2 Series amplifier or M—864D, the ZM—9011 is a wall mounted remote control panel having 6 buttons. It is used in conjunction with the RC—OO1T Remote control module or M—864D. It can be mounted in an American standard 1—gang electrical box in the wall.

Key Features

Six programmable push buttons to activate Scene memory recall, Event activation or volume up / down (one input or output channel)
Wiring: one shielded conductor to chassis Remote Volume terminals
Max. loop resistance: 100? (3000ft. 22AWG)
Fits one gang electrical box
Maximum two ZM-9001/ZM-9002 per chassis

Specifications

Power Source: 24VDC (supplied from RC—001T or M—864D)
Current Consumption: 50mA or less
Terminal: Removable terminal block (10 pins)
Cable Shielded CPEV cable (paired data line and paired power line) or
Category 5 twisted pair cable for LAN (CATS—STP)
Operating Section: 6 function buttons
Indicator: 6 function indicators (green LEDs)
Operating Temperature: 0°C to +40°C (32°F to 104°F)
Operating Humidity: 35% to 80% RH (no condensation)
Finish Surface: treated steel plate, white, paint
Dimensions: 72mm (W) X 127mm (H) X 49.5mm (D) (2.83" X 5" X 1.95")
Weight: 160g (0.35lbs)

Additional Specifications

UNSPSC Code	52161600
