Trendnet TI-IG290 | 95W 2 Port Industrial 2.5G PoE
Description
Description

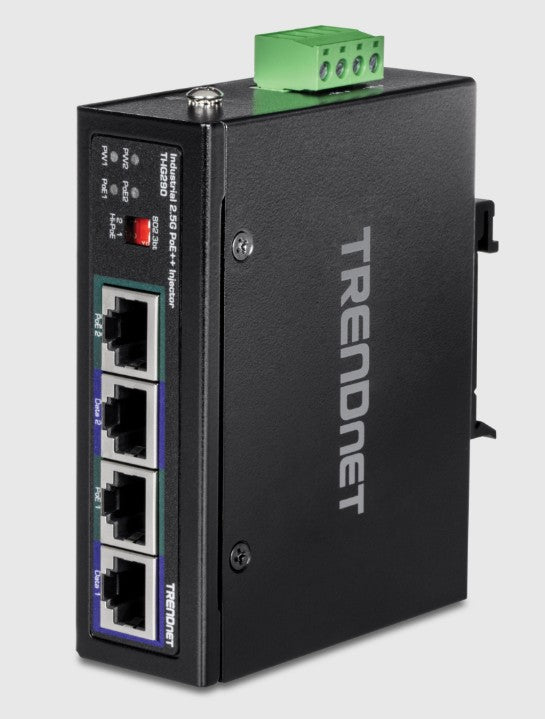

TRENDnet's 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 ft.) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessaryenergy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° “ 70° C (-40° “ 158° F) for harsh industrial environments.
Trendnet - TI-IG290 - Features
- 2 X 2.5G PoE++ Ports (data + PoE Out)
- 2 X 2.5G Ports (data In)
- 180W PoE Power Budget
- Supports PoE (15.4W), PoE+ (30W), And PoE++ (95w)
- Devices
- Uses IEEE 802.3af, IEEE 802.3at, And IEEE 802.3bt Industry
- PoE Standards For Greater Device Interoperity
- Network A PoE Device Located Up To 100m (328 Ft.) Away
- 2 x 2.5G PoE++ ports (Data + PoE out)
- 2 x 2.5G ports (Data in)
- 180W PoE power budget
- Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
- Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
- Network a PoE device located up to 100m (328 ft.) away
- Fanless design eliminates operating noise and lowers energy consumption
- Extreme operating temperature range -40 to 75 °C (-40 to 167 °F)
- Redundant power inputs with overload current protection
- Includes DIN-Rail mount and wall mount
- Power supply sold separately (model TI-S24048)
Specifications
Specifications
Trendnet - TI-IG290 - Product Categories
- Industrial
- Industrial Communication and Control
- Industrial Communication and Control
Trendnet - TI-IG290 - Specifications
| Brand Name | Trendnet |
|---|---|
| Manufacturer Part Number | TI-IG290 |
| Item Description | 95W 2 Port Industrial 2.5G PoE |
| UNSPSC Code | 43222600 |
