Tripp-Lite 9PX5KG2 | 9PX G2 5000VA 5000W 208V Online Double-Convers...
Description
Description

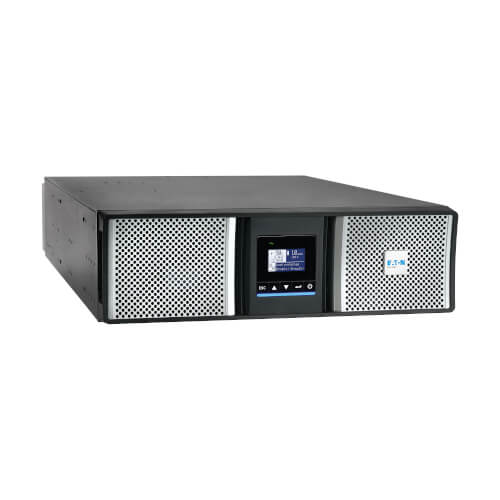

This 9PX G2 rack-mount online double-conversion UPS system provides reliable, low-maintenance battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage critical IT equipment or destroy data. The 9PX5KG2 is ideal power management for IT managers, data center managers, electrical contractors, integrators, specifying engineers and other end users in business, edge computing, education, go vernment, healthcare, retail and other networking applications. With unity power factor (5000VA/5000W output), the 9PX5KG2 maximizes usable output power and allows you to support more dvices, including servers, PoE switches and other networking equipment. The most efficient UPS system in its class, the 9PX5KG2 complies with the latest ENERGY STAR standards to reduce greenhouse gas emissions and to save you money on energy and cooling costs. Load segments with energy metering help you optimize energy use.
Tripp-Lite - 9PX5KG2 - Features
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Best-in-class efficiency results in reduced energy costs and greenhouse gas emissions
- Included NETWORK-M3 Gigabit network card enables full remote access and control
- Exclusive ABM+ technology and analytics help you pinpoint when to replace batteries
- Optional extended battery modules allow extra runtime to keep equipment powered
Specifications
Specifications
Tripp-Lite - 9PX5KG2 - Specifications
| Type | Uninterruptible Power Supply |
|---|---|
| UNSPSC CODE | 39121011 |
| UPC Code | 786689860103 |
| Input Phase | Single-Phase |
| Rated input current (Maximum Load) | 24.4A |
| Nominal Input Voltage(s) Supported | 200V AC; 208V AC; 220V AC; 230V AC; 240V AC |
| Input Plug Type | Hard-wire; NEMA L6-30P |
| Output Capacity (VA) | 5000 |
| Power Factor | 1 |
| Crest Factor | 0.12569444444444444 |
| Frequency Compatibility | 50 / 60 Hz |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Output Receptacles | (2) L6-20R; (2) L6-30R; Hardwire |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| DC System Voltage (VDC) | 180 |
| Front Panel LCD Display | LCD graphical display |
| Switches | RPO / ROO |
| Alarm Cancel Operation | Press ESC to silence the alarm |
| LED Indicators | LED status bar |
| Primary Form Factor | Rackmount; Tower |
| Rack Height | 3U |
| Cooling Method | Fan |
| Minimum Required Rack Depth (inches) | 32 |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0-95% non-condensing |
| UPS Applications | Mission Critical Applications |
