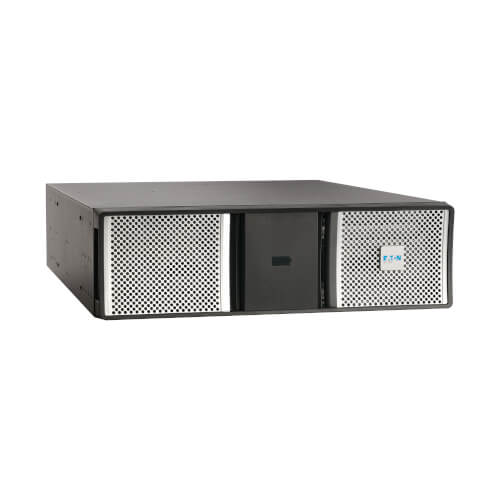

Tripp-Lite 9PXEBM180RTG2 | 180V Extended Battery Module (EBM) for Select Eaton 9PX G2 UPS Systems, 3U Rack/Tower
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite 9PXEBM180RTG2 | 180V Extended Battery Module (EBM) for S...
Description
Description
The 9PXEBM180RTG2 offers extended battery runtime when used in conjunction with Eaton’s 9PX3K3UG2, 9PX3K3UNP1G2, 9PX3K3UNP2G2, 9PX3K3UNTF5G2, 9PX5KG2, 9PX5KP1G2, 9PX5KP2G2, 9PX5KTF5G2, 9PX6KG2, 9PX6KIECG2, 9PX6KP1G2, 9PX6KP2G2 and 9PX6KTF5G2 UPS systems. It can also be daisy-chained for a maximum of 12 auto-detected battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation. .
Tripp-Lite - 9PXEBM180RTG2 - Features
- Connects to select expandable Eaton 9PX G2 UPS systems for extended runtime
- Daisy-chain connector supports additional battery packs for even longer runtime
- Includes heavy-gauge cabling with high-current 180V DC connectors
- Supports 3U rack mounting or pright tower installation using included kit accessories
Specifications
Specifications
Tripp-Lite - 9PXEBM180RTG2 - Specifications
| Type | Uninterruptible Power Supply |
|---|---|
| UNSPSC Code | 39121011 |
| UPC Code | 786689860073 |
| Input Phase | Single-Phase |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| DC System Voltage (VDC) | 180 |
| Internal UPS Replacement Battery Cartridge | EBP-1805 |
| Battery Management | ABM+ technology |
| Primary Form Factor | Rackmount; Tower |
| Rack Height | 3U |
| External Battery Pack Form Factor | Rack/Tower |
| Minimum Required Rack Depth (cm) | 73.66 |
| Minimum Required Rack Depth (inches) | 29 |
| Unit Dimensions (hwd / in.) | 5.100 x 17.300 x 25.000 |
| Unit Weight (lbs.) | 150 |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0-95% non-condensing |
