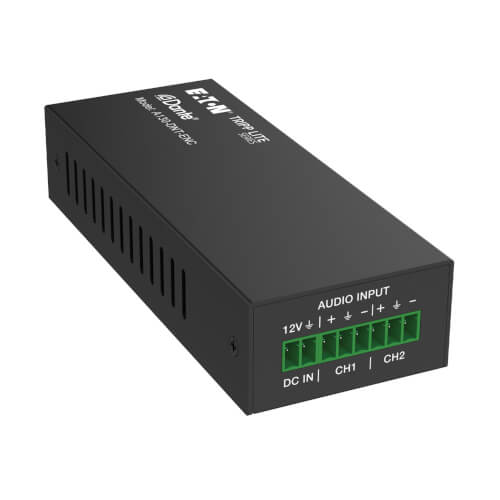

Tripp-Lite A130-DNT-ENC | Series Dante 2-Channel Analog Audio Encoder with PoE, 100 meters (328 ft), PCM 2.0 44.1kHz/48kHz/96kHz up to 24 Bit, TAA
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite A130-DNT-ENC | Series Dante 2-Channel Analog Audio Encod...
Description
Description
Connects a non-Dante analog audio device, such as speakers, to Dante digital audio equipment and software.
Enables Dante Audio to Interface with Non-Dante Analog Devices
The A130-DNT-ENC allows non-Dante audio devices, including mixers, switches, amplifiers, receivers and speakers, to smoothly interface with Dante-compatible equipment and software. The encoder supports two-channel analog transmission, both balanced and unbalanced, over a network to Dante equipment. A convenient switch lets you adjust the audio gain between +18dBu, 0dBu (default) and -10dBV.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
Because this audio encoder supports PoE, it can draw power from any connected PoE network switch, which saves you the expense and effort of purchasing, connecting and installing a separate power supply. It also gives you more flexibility in where you install the encoder, making it ideal for studios, live events and large conference areas where both network cabling and analog audio devices exist.
Tripp-Lite - A130-DNT-ENC - Features
- Analog audio input supports balanced or unbalanced audio output
- Audio output supports 3-level gain adjustment: +18dBu, 0dBu (default) and -10dBV
- Audio sampling rate supports 44.1 kHz, 48 kHz and 96 kHz (24-bit)
- Dante solution supports AES67 RTP audio transmission
- Can be powered using a PoE network switch or a DC 12V power supply (not included)
- 2-year limited warranty
Specifications
Specifications
Tripp-Lite - A130-DNT-ENC - Package Contents
- A130-DNT-ENC Dante 2-Channel Analog Audio Encoder
- 6-pin 3.81 mm Phoenix connector
- 2-pin 3.81 mm Phoenix connector
- Installation instructions
Tripp-Lite - A130-DNT-ENC - Specifications
| UPC Code | 037332296443 |
|---|---|
| Product Type | AV Encoder |
| Technology | A/V over IP; Cat6; Cat6a; PoE |
| Audio Ports Details | PCM 2.0 44.1 KHZ/48 KHZ/96 KHZ UP TO 24-BIT. CONTROL METHOD: DANTE CONTROLLER |
| Audio Specification | PCM 2.0 44.1 KHZ/48 KHZ/96 KHZ UP TO 24-BIT |
| Audio Connector Details | Input: 1x Dante (RJ45), 1x Power (2-pin Phoenix, 3.81mm); Output: 1x Audio (6-pin Phoenix, 3.81mm) |
| Power Consumption (Watts) | 1.20 |
| PoE Capability | 15.4W (802.3af) |
| Side A - Connector 1 | 6 PIN (FEMALE) |
| Side B - Connector 1 | RJ45 (FEMALE) |
| Color | Black |
| Unit Dimensions (hwd / mm) | 120 X 47 X 26 |
| Unit Weight (kg) | 0.18 |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 20 TO 90% RH, NON-CONDENSING |
| Storage Humidity Range | 20 TO 90% RH, NON-CONDENSING |
