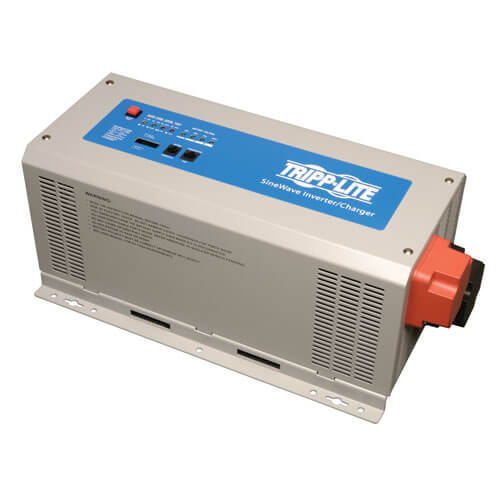

Tripp-Lite APSX1012SW | 1000W APS X Series 12VDC 230V Inverter/Charger with Pure Sine-Wave Output, Hardwired
Regular price
$1,471.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite APSX1012SW | 1000W APS X Series 12VDC 230V Inverter/Char...
Regular price
$1,471.85
Unit price
Description
Description
Portable 1000W power source for power tools, computers, audio/video components and other sensitive electronics as a vehicle inverter, standalone AC power source or extended-run UPS. Ideal for mobile, emergency and remote sites.
Features
- Reliable Power for Mobile, Emergency and Remote Sites
- Generates 230V pure sine-wave power from 12V battery bank
- Ideal for powering variable-speed tools, computers, LEDs, fans, audio/video components and other sensitive electronics
- Designed for easy installation in RVs, fleet vehicles and emergency vehicles
- Functions as vehicle inverter, standalone AC power source or extended-run UPS
- Unlimited runtime with variety of user-supplied batteries
- Pure Sine-Wave Power for Normal and Peak Power Demands
- 1000W of continuous power
- 2000W of peak power to accommodate surge power demands during equipment startup and cycling
- Automatic overload detector, built-in cooling fan and resettable AC circuit breakers protect unit from damage

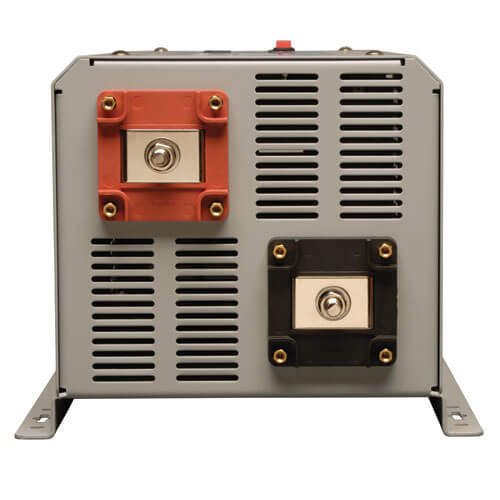

- High-current DC input terminals for simple hardwired installation
- Automatic Transfer Switching
- Transfer relay switches to inverter power during blackout in 16.6 ms
- DIP switches configure high and low voltage auto-transfer
- 3-Stage 4/40A Selectable Battery Charger
- Serves as battery charger when external 230V AC power is supplied and powering connected equipment
- Protects battery from overcharging and overdischarging
- Low-battery protection prevents excessive battery depletion
- DIP switches configure wet/gel charging profiles
- External Ports
- Battery temperature port allows connection of optional remote battery temperature sensor, such as Tripp Lite's APSSWTEMP
- RJ45 communication port allows connection of optional remote control module, such as Tripp Lite's APSRMSW with 32-ft. (9.75 m) cord

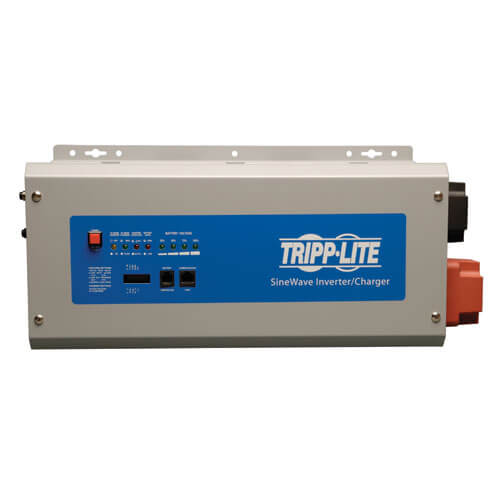

- Easy Operation
- LEDs indicate battery voltage, charger and inverter status
- On/off button provides one-touch control
- Rugged Steel Housing
- Resists moisture, vibration, impact and high-humidity environments
- Built-in mounting feet for installation on any rigid horizontal surface
Special Features
| Load Sensing | 100W |
|---|
Specifications
Specifications
Overview
| UPC Code | 37332161338 |
|---|
Input
| Nominal Input Voltage(s) Supported | 220V AC; 230V AC; 240V AC |
|---|---|
| Nominal Input Voltage Description | 170-264V +/- 3% |
| Recommended Electrical Service | DC INPUT: Requires 12VDC input source capable of delivering 240A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 200A minimum battery system fusing is recommended. |
| Maximum Input Amps / Watts | DC INPUT: Full continuous load - 240A at 12VDC. AC INPUT: 17 amps at 230VAC with full inverter and charger load (8.7A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output loading using the charger limiting set points - see manual for setting instructions) |
| Input Connection Type | DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: Hardwire via built in junction box with cover plate |
| Voltage Compatibility (VAC) | 220-240 |
| Voltage Compatibility (VDC) | 12 |
Output
| Frequency Compatibility | 50 / 60 Hz |
|---|---|
| Pure Sine Wave Output | Yes |
Battery
| Expandable Battery Runtime | Runtime is expandable with any number of user supplied wet or gel type batteries |
|---|---|
| Expandable Runtime | Yes |
| DC System Voltage (VDC) | 12 |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery(optional) |
| Battery Charge | Includes selectable 4~40 amp DC charging system. |
User Interface, Alerts & Controls
| Front Panel LEDs | Set of front panel LED's display inverter status, charger status, as well as battery voltage status |
|---|---|
| Switches | The inverter provides a RJ-45 port for optional APSRMSW remote control. RJ45 port operates with standard RS485 interface (APSRMSW sold separately) |
| Audible Alarm | Audible status indicators 10.5V (low battery)/21V start alarm |
Environmental
| Relative Humidity | 0-95% non-condensing |
|---|
Line / Battery Transfer
| Transfer Time (Line Power to Battery Mode) | 16 ms. maximum |
|---|---|
| Low Voltage Transfer to Battery Power | 170 VAC (+/- 3%) DEFAULT OR 190V +/-3% (user-selectable) |
| High Voltage Transfer to Battery Power | 264 VAC +/- 3% |
Standards & Compliance
| Approvals | Tested to EN62040-1 (CE), EN62040-2 (EMC), RoHS |
|---|
Warranty
| Product Warranty Period (U.S. & Canada) | 2-year limited warranty |
|---|
