Brand: Tripp-Lite
|
SKU:
812256
Tripp-Lite B004-DPUA2-K | 2-Port DisplayPort KVM Switch with Audio, Cables and USB 3.0 SuperSpeed Hub
Regular price
$439.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B004-DPUA2-K | 2-Port DisplayPort KVM Switch with Audio,...
Regular price
$439.35
Unit price
Description
Description
Control 2 DisplayPort computers using
one DisplayPort monitor, USB keyboard and USB mouse. Connect USB 3.0 peripherals,
such as hard drives and webcams, and share them between computers.
Features
- Access and Control 2 Computers with One KVM Switch

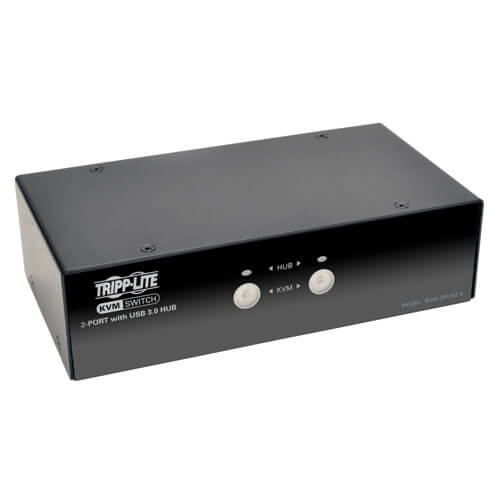

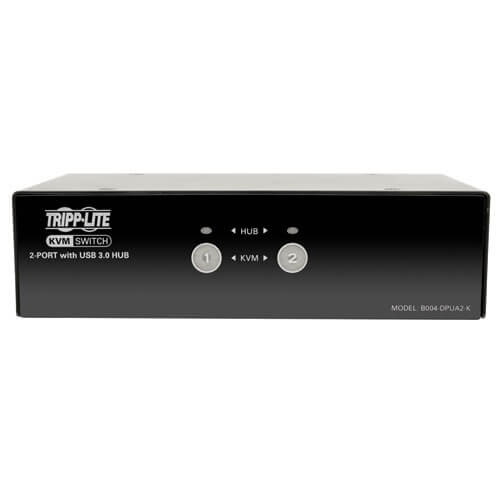

- Switch between computers using keyboard hotkeys or front-panel buttons
- Auto Scan feature cycles between computers at regular intervals for at-a-glance observation of activity
- Monitor's EDID information sent to connected computer when selected
- Supports DisplayPort 1.1
- Independent Audio Switching
- 3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment between computers
- Listen to audio files on one computer while accessing the other computer
- Supports 2-channel stereo audio
- Independent USB 3.0 Peripheral Sharing
- 2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives, printers and scanners
- Print documents from one computer while accessing the other computer
- Supports USB 3.0 data transfer rates up to 5 Gbps
- Backward compatible with USB 2.0 and USB 1.1 devices
- Compatible with All Major Operating Systems
- Easy to set up with no software or drivers to install
- Supports digital video resolutions up to 2560 x 1600, including 1080p
- Works with Windows, Mac, Linux and Sun

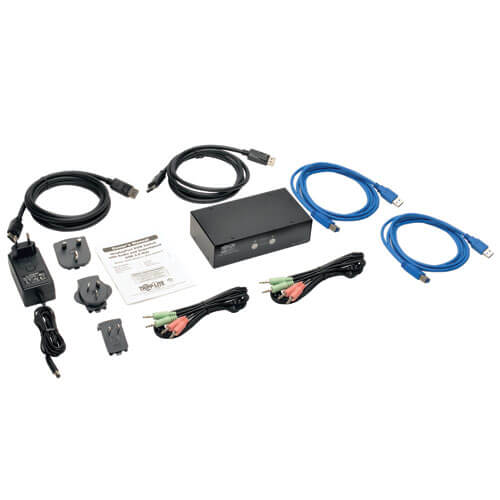

- All necessary cables included
Features & Specifications
| Autoscan (Y,N) | Y |
|---|---|
| Autoscan Duration | 10 to 60 seconds (DEFAULTS AT 10, USER DEFINABLE IN 10 SECOND INTERVALS). |
| Number of Users | 1 |
| NIAP-Certified Secure | No |
Specifications
Specifications
Overview
| UPC Code | 37332188625 |
|---|---|
| Technology | USB 3.0 (SuperSpeed); USB; DisplayPort; Stereo Audio |
Video
| Max Supported Video Resolution | 2560 x 1600 @60Hz |
|---|
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
|---|---|
| External Power Supply Plug(s) | NEMA 1-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia |
Power
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 0.8A |
|---|---|
| External Power Supply Output Specs (V / A) | 9V / 2A |
| External Power Supply Cord Length (ft.) | 6 |
| External Power Supply DC Barrel Connector Specs | OD: 5.5 x 2.1 x 10mm; Positive Pin; Negative Sleeve |
| External Power Supply Certifications | CE; FCC; UL; cUL; TUV; GS; BS; RCM; CB |
User Interface, Alerts & Controls
| LED Indicators | Red (USB); White (Selected PC) |
|---|
Environmental
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
|---|---|
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Relative Humidity | 0%-90% RH, Non-Condensing |
| BTUs | 19.8 BTU/Hr |
| Power Consumption (Watts) | 5.8 |
Communications
| IP Remote Access | No |
|---|

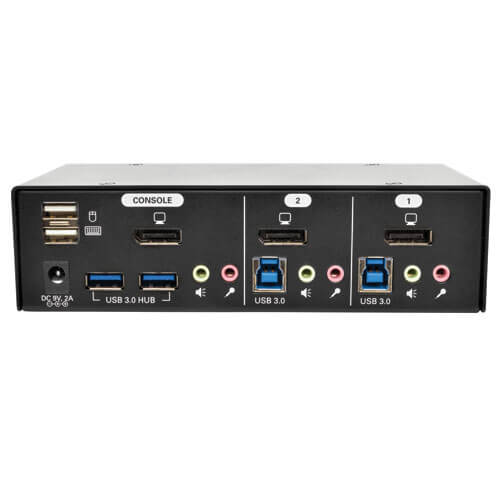

Connections
| Ports | 2 |
|---|---|
| PC/Server Connections | USB; DisplayPort |
| Side A - Connector 1 | (2) DISPLAYPORT (FEMALE) |
| Side A - Connector 2 | (2) USB 3.0 B (FEMALE) |
| Side A - Connector 3 | (4) 3.5MM (FEMALE) |
| Side B - Connector 1 | DISPLAYPORT (FEMALE) |
Standards & Compliance
| Certifications | Tested to FCC, CE, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
