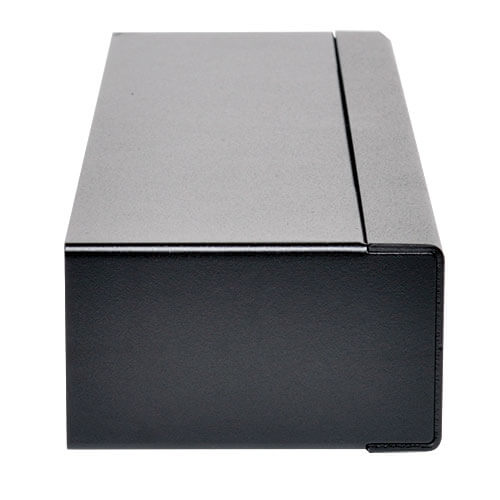

Tripp-Lite B004-DUA2-HR-K | 2-Port DVI Dual-Link / USB KVM Switch with Audio and Cables

Features

• 2-Port DVI Dual Link/USB KVM switch with 7.1 channel surround-sound audio and USB 2.0 peripheral sharing (B004-DUA2-HR-K)
• Built-in 2-Port USB 2.0 hub allows USB devices to be shared amongst computers connected to the KVM switch

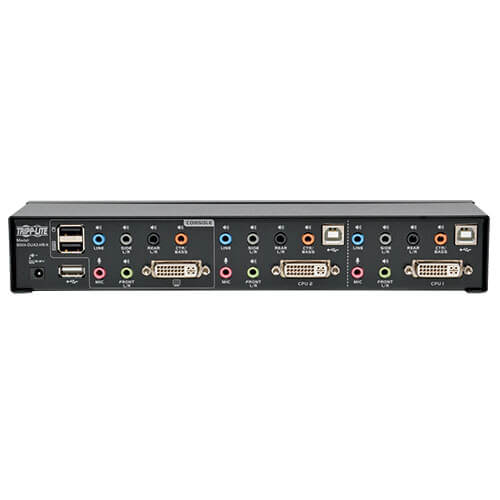

• 3.5 mm Mini Stereo Speaker and Microphone jacks allow a single microphone to provide audio input to each of the connected computers, and let you listen to the audio output of each computer on a single set of speakers
• B004-DUA2-HR-K features additional audio jacks for use with 7.1 channel surround-sound

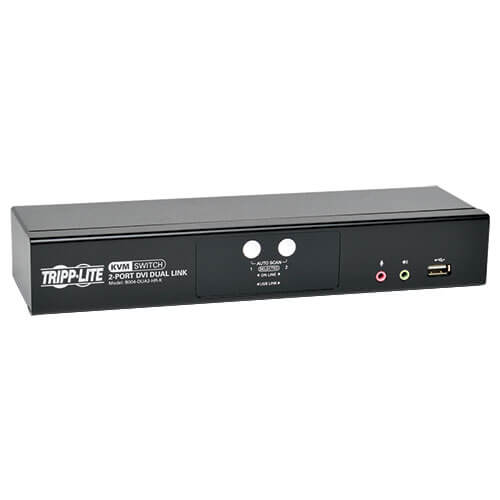

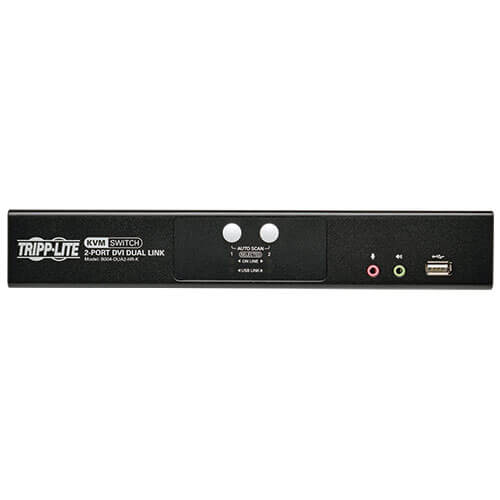

• An additional set of console audio jacks are conveniently located on the front panel of the KVM switch, making them ideal for use with IP phones
• The KVM, USB and Audio can be switched independently of each other
• Features mouse port switching functionality*, which allows users accessing the KVM switch with a scroll mouse to switch between ports by double-clicking the mouse’s scroll wheel
• Switch between connected computers via front panel pushbuttons, keyboard hotkeys, and the mouse switching function*
• Auto Scan mode allows you to scan the connected computers without having to manually switch between them
• Supports both analog and digital video signals, allowing for the connection of a VGA computer and/or monitor with a DVI to VGA adapter
• Supports digital video resolutions up to 2560 x 1600 and analog video resolutions up to 2048 x 1536
• Multi-platform support – Compatible with Windows, Mac, Sun and Linux
• Supports hot-plugging – Computers and devices can be unplugged and re-plugged without having to shut down the KVM switch
• The KVM switch stores the monitor’s EDID (Extended Display Identification Data) to optimize display resolution
• LEDs provide for easy monitoring of connected computers
• Power-On-Detection recognizes when a connected computer has been powered-off and automatically switches to the next powered-on computer
• HDCP compliant
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Console keyboard port emulation/bypass feature supports most gaming/multimedia keyboards
• Complete keyboard emulation for error-free booting
• Multilingual keyboard mapping – supports English, Japanese, and French keyboards
• Quick installation without the need for software
• Sun/Mac keyboard support and emulation**
• Firmware upgradeable
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
• *The mouse switching function is disabled by default, and needs to be turned on via keyboard hotkey command. It is only available when using a mouse with a scroll wheel.
• **PC keyboard combinations emulate Sun/Mac keyboards. Sun/Mac keyboards only work with their own computers.
