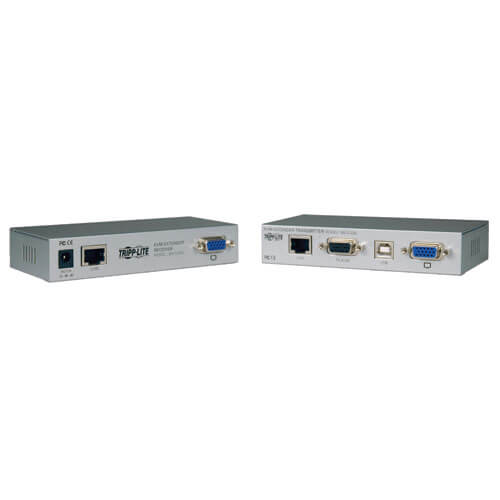

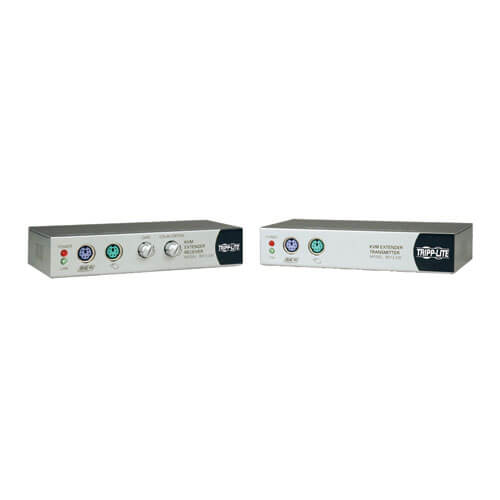

Tripp-Lite B013-330 | Cat5e KVM Console Extender Kit
Regular price
$317.87
Unit price
Brand: Tripp-Lite
|
SKU:
484636
Regular price
$317.87
Unit price
Description
Description
Tripp-Lite B013-330 | Cat5e KVM Console Extender Kit
Features
- Enables you to control a PS/2 or USB computer/KVM switch from a distance of up to 330ft (100m) away.
- Can control the computer or KVM switch via both Local and Remote Consoles.
- The remote connection is made using standard Cat5e cable
- Display mode of 1600 x 1200 @ 60Hz
- Shielded Cat5e cables provide better transmission integrity
Features & Specifications
| Recommended Category Cable | Cat5/Cat5e Cables |
|---|
Specifications
Specifications
Overview
| UPC Code | 37332143419 |
|---|---|
| Technology | PS/2; USB; VGA/SVGA |
Product Overview
| Product Overview | Cat5e KVM Console Extender Kit |
|---|
Video
| Max Supported Video Resolution | 1600 x 1200 @60Hz |
|---|---|
| HDR Support | No |
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
|---|---|
| External Power Supply Plug(s) | NEMA 1-15P North America |
Power
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 1.0A |
|---|---|
| External Power Supply Output Specs (V / A) | 9V / 1.33A |
| External Power Supply Cord Length (ft.) | 5 |
Physical
| Color | Silver |
|---|---|
| Material of Construction | Steel |
| Rackmountable | No |
| Receiver Unit Dimensions (hwd / in.) | 1 x 5.2 x 2.6 |
| Receiver Unit Weight (lbs.) | 1.3 |
| Shipping Dimensions (hwd / in.) | 5.40 x 6.90 x 8.00 |
| Shipping Weight (lbs.) | 2.60 |
| Transmitter Unit Dimensions (hwd / in.) | 1 x 5.2 x 2.6 |
| Transmitter Unit Weight (lbs.) | 1.3 |
| Unit Packaging Type | Box |
Environmental
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
|---|---|
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Relative Humidity | 0%-90% RH, Non-Condensing |
Communications
| IR Remote Extension Support | No |
|---|---|
| RS-232 Serial Extension Support | No |
| USB Extension Support | No |
Connections
| Ports | 1 |
|---|---|
| Side A - Connector 1 | (2) HD15 (FEMALE) |
| Side A - Connector 2 | RJ45 (FEMALE) |
| Side A - Connector 3 | USB B (FEMALE) |
Standards & Compliance
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
