Brand: Tripp-Lite
|
SKU:
396482

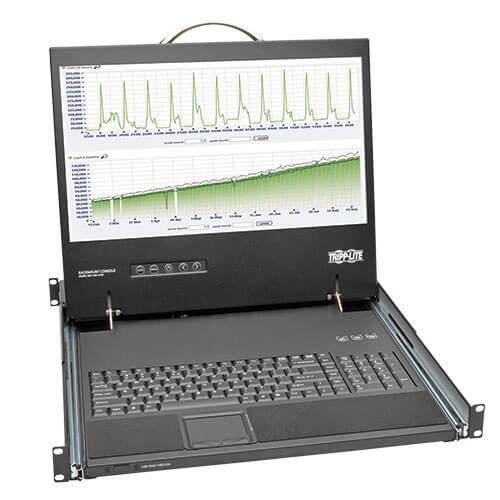

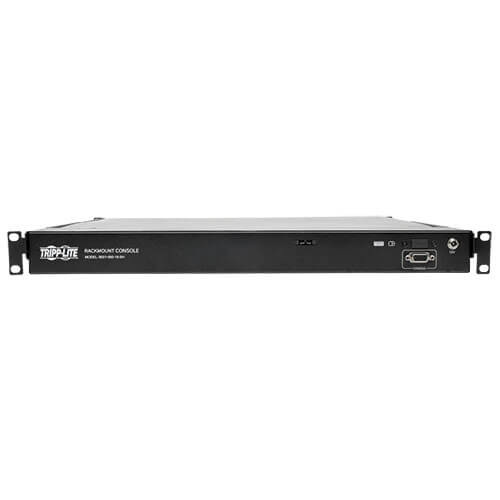

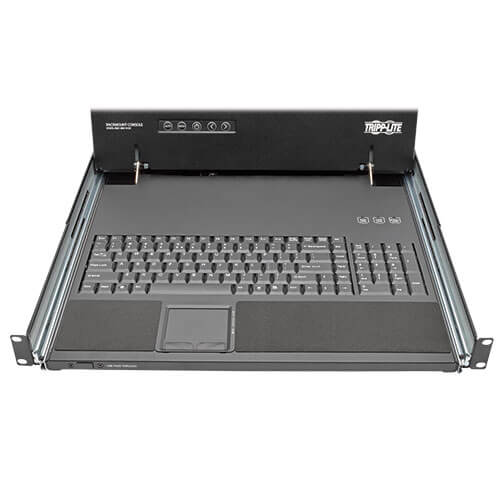

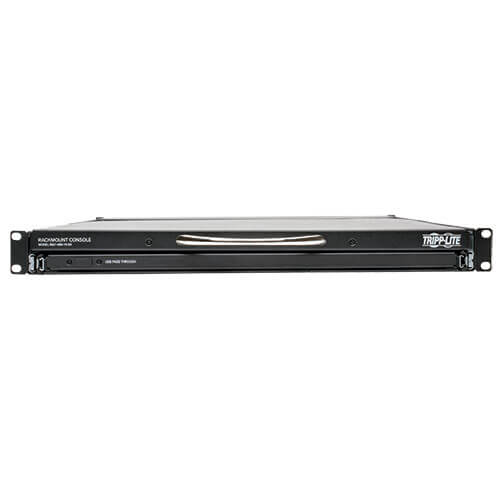

Tripp-Lite B021-000-19-SH | 1U Rack-Mount Console with 19-in. LCD, Short-Depth; TAA Compliant
Regular price
$1,986.63
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B021-000-19-SH | 1U Rack-Mount Console with 19-in. LCD, ...
Regular price
$1,986.63
Unit price
Description
Description
Tripp Lite's B021-000-19-SH 1U Rackmount Console is the ideal solution for specialized vehicle projects, including rescue services and military specific applications. It can be mounted in as little as a 19" deep rack and features an integrated 19" LCD display, ( max native resolution of 1366 x 768), full 104-key keyboard and touch pad, all in a 1U rackmountable housing. It also features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive, CAC card reader, etc.. Your peripheral device connects to the USB type A port on the front of the unit, and your computer connects to the USB type A port on the back of the unit using a Tripp Lite UR020-Series type A M/M cable. This console is designed for use with a server or a KVM switch with PS/2 or USB console connectors. Constructed of heavy-duty steel housing.
Features
- Mounts in 19" to 30" deep cabinets
- Full 19" LCD display screen, 104-key keyboard, touchpad
- Max native resolution of 1366 x 768
- Auto Sensing External AC Adapter, 6-ft. (Input: 100-240V, 50/60Hz, 1.5A)
- Includes 6-ft. PS/2 cable kit for use with PS/2 KVMs or Servers
- PS/2 to USB adapter included for use with USB KVMs or servers
- Features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive, CAC card reader, etc.
- Single rail, ball bearing slides
- Constructed of heavy-duty steel housing
- Complies with the Federal Trade Agreement Act (TAA) for GSA Schedule purchases
Features & Specifications
| Number of Users | 1 |
|---|---|
| NIAP-Certified Secure | No |
| USB Specification | USB 2.0 (up to 480 Mbps) |
| Driver Required | No |
Specifications
Specifications
Overview
| UPC Code | 37332143853 |
|---|---|
| AC Adapter | Input: 100-240V, 50/60Hz, 1.5A |
| Technology | PS/2; USB; VGA/SVGA |
Product Overview
| Product Overview | 1U 19" KVM Console Short-Body |
|---|
Video
| Max Supported Video Resolution | 1366 x 768 @ 60Hz |
|---|
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
|---|---|
| External Power Supply Plug(s) | IEC-320-C14 |
Power
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 1.5A |
|---|---|
| External Power Supply Output Specs (V / A) | 12V / 2.5 A |
| External Power Supply Cord Length (ft.) | 5 |
Physical
| Color | Black |
|---|---|
| Material of Construction | Steel (Steel, Electrogalvanized, Cold Rolled, Coil) |
| Rackmountable | Yes |
| Shipping Dimensions (hwd / in.) | 5.90 x 23.10 x 24.17 |
| Shipping Weight (lbs.) | 34.30 |
| Unit Dimensions (hwd / in.) | 1.73 x 18.8 x 19.0 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 27.13 |
Environmental
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
|---|---|
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Relative Humidity | 0% to 80% RH, Non-Condensing |
Communications
| IP Remote Access | No |
|---|
Connections
| Ports | 1 |
|---|---|
| PC/Server Connections | PS/2; USB; VGA |
| Side A - Connector 1 | HD15 (FEMALE) |
| Side A - Connector 2 | USB A (FEMALE) |
(Eng) Built-In Console
| Console Screen Size (inches) | 19 |
|---|---|
| Console Screen Aspect Ratio | 16:09:00 |
Standards & Compliance
| Certifications | FCC Part 15 Class A, CE, EN 60950-1, RoHS, REACH |
|---|
