Brand: Tripp-Lite
|
SKU:
528116

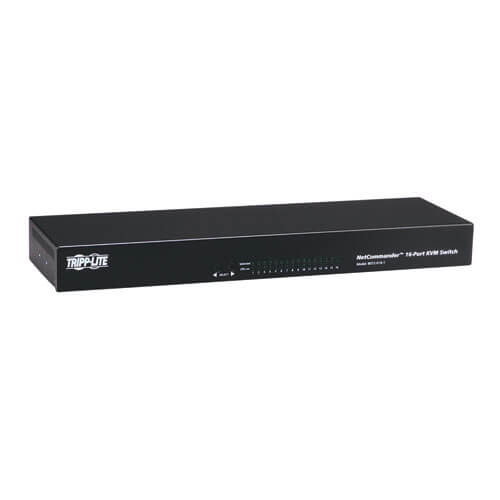

Tripp-Lite B072-016-1 | NetCommander 16-Port Cat5 KVM Switch 1U Rack-Mount
Regular price
$507.77
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B072-016-1 | NetCommander 16-Port Cat5 KVM Switch 1U Rac...
Regular price
$507.77
Unit price
Description
Description
Tripp Lite's 16-Port NetCommander 1U Rackmount Cat5 KVM Switch, is the next generation of our cost-effective, feature rich, KVM switches. It's sleek, 1U design and compact size, features RJ45 connection ports that utilize inexpensive Cat5 patch cables, reducing the amount of cable clutter normally found with traditional KVM cabling. Easily switch between CPU's with Push Buttons, Hot-Key commands, or built-in On Screen Display (OSD) menu function. Cascadability allows connection to up to 256 computers. Compatible with PS/2 and USB computers, VGA, SVGA, or XGA monitors, as well as all major operating systems.Constructed of heavy-duty steel housing. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
- Expandable - Cascade a second level of KVM switches to control up to 256 servers from a single station
- Extend distance between computer and switch up to 30 meters/100ft
- Rack mountable sleek, 1U space saving KVM switches
- Innovative CAT5 technology eliminate cable clutter at the rack
- Multi-layer security protects your corporate data
- Easy server management choice of On Screen Display, Hot-key,or push button control
- Multi-platform - PS/2, SUN, and USB support
- To convert DisplayPort or HDMI computers to VGA, use Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.
- Easily add IP functionality with Tripp Lite Model B051-000
- Add Tripp Lite Model B021-000-17 for space saving, in-the-rack, LCD, Keyboard and Mouse.
- Compact Size: 17"W x 5"D x 1.75"H
- Video Resolution: 1600x1200@75Hz
- Internal Power Supply
- Compatible with all major operating systems
- Constructed of heavy-duty steel housing
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Features & Specifications
| Number of Users | 1 |
|---|---|
| NIAP-Certified Secure | No |
| On-Screen Display (OSD) | Yes |
| Port Selection | Pushbutton; Hotkey; OSD |
| Driver Required | No |
| Cat5 KVM Switch | Yes |
Specifications
Specifications
Overview
| UPC Code | 37332127525 |
|---|---|
| Console | No |
| Max CPU | 256 |
Video
| Max Supported Video Resolution | 1600 X 1200 @ 75 Hz |
|---|---|
| Max. Distance (Between any 2 Units) | 100 ft (30.5m) |
| Max Number of Ports (Entire Chain) | 256 |
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
|---|---|
| Input Frequency | 50/60Hz |
User Interface, Alerts & Controls
| LED Indicators | Green(CPU ON; SELECTED) |
|---|
Physical
| Color | Black |
|---|---|
| Material of Construction | Steel (Steel, Electrogalvanized, Cold Rolled, Coil) |
| Rackmountable | Yes |
Communications
| IP Remote Access | No |
|---|
Connections
| Ports | 16 |
|---|---|
| PC/Server Connections | VGA; USB; PS/2 |
| Side A - Connector 1 | HD15 (FEMALE) |
Standards & Compliance
| Certifications | Tested to UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
