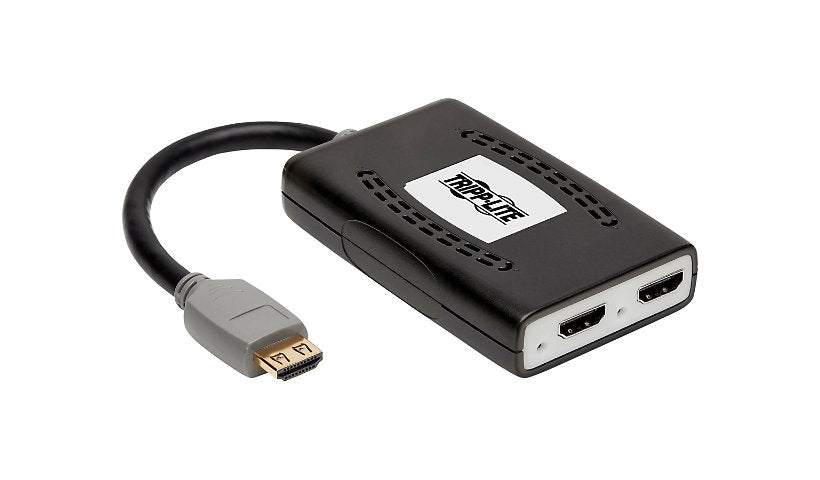

Tripp-Lite B118-002-HDR-V2 | HDMI Splitter 2-Port 4K @60Hz HDMI 4:4:4 HDR USB Powered TAA Multi-Resolution Support, USB
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B118-002-HDR-V2 | HDMI Splitter 2-Port 4K @60Hz HDMI 4:4...
Description
Description
Recommended for home theaters or short-distance digital signage applications in classrooms, offices, churches, restaurants, bars, hotels and trade shows, this Ultra High Definition (UHD) HDMI splitter is quick and easy to install. It connects to an HDMI source device, such as a computer or Blu-ray player, and transmits a 4K audio/video signal to two HDMI monitors, projectors or televisions simultaneously. Note: The B118-002-HDR-V2 sends the same image to all connected displays. If you would like to extend an image over multiple displays, you will need an MST hub, such as the B156-002-HD-V2.
Using standard 28 AWG HDMI cable, the B118-002-HDR-V2 distributes a 4K x 2K audio/video signal (at 60 Hz) up to 15 feet (4.6 meters). Be sure the HDMI cables connecting the splitter to the source and displays are no longer than 15 feet. For best performance, we recommend using P569-Series HDMI cables.
Tripp-Lite - B118-002-HDR-V2 - Features
- 2-Port HDMI 20 splitter w/ multi-resolution support transmits 4Kx2K video/audio from an HDMI source to 2 HDMI displays at the same time
- Supports UHD resolutions up to 4096x2160 (@ 60Hz) and multi-resolution output to allow for combination of different display types
- TAA compliant video splitter
- Transmits up to 15 ft for digital signage in bars/ offices/ classrooms/ trade shows etc
- Supports latest HDMI standards incl 4:4:4 subsampling for HDR TVs
- Tripp Lite is now a part of Eaton
Specifications
Specifications
Tripp-Lite - B118-002-HDR-V2 - Specifications
| Brand | Tripp Lite |
|---|---|
| Product Line | Eaton Tripp Lite series |
| Model | HDMI Splitter 2-Port 4K @60Hz HDMI 4:4:4 HDR USB Powered TAA Multi-Resolution Support, USB Powered |
| Manufacturer | Tripplite Cables |
| Compliant Standards | HDCP 2.2 |
| Features | 36-bit Deep Color support, 3D support, 4K resolution support, Dolby Digital Plus support, Dolby TrueHD support, DTS-HD support, EDID Management, HDR 4K60 4:4:4 compatible, HDR support, LPCM 7.1 support, USB powered |
| Form Factor (Hubs & Switches) | Desktop |
| Ports | 2 |
| Product Type | Splitter |
| Status Indicators | Connection status, Power |
| Subcategory | Peripheral sharing and hubs |
| Switching Type | HDMI |
| Interface Provided | 1 x HDMI input Type A, 1 x micro-USB output Type B, 2 x HDMI output Type A |
| Port Quantity | 2 |
| Port Type | HDMI |
| KVP Max Resolution | 4096 x 2160 |
| KVM V-Sync Rate At Max Resolution | 60 Hz |
| Max Operating Temperature | 104 degree Fahrenheit |
| Max Storage Temperature | 122 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| Min Storage Temperature | 5 degree Fahrenheit |
| Operating Humidity | 0 - 85% (non-condensing) |
| Cables | 1 x HDMI cable - 6 in, 1 x micro-USB cable - 3 ft |
| Height | 0.7 inch |
| Weight | 2.82 ounce |
| Width | 3.7 inch |
| Depth | 0.9 inch |
