Brand: Tripp-Lite | SKU: 641790

Tripp-Lite B118-002-UHD | 2-Port HDMI Splitter - 4K @ 30Hz, HDCP 1.3

$71.80

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

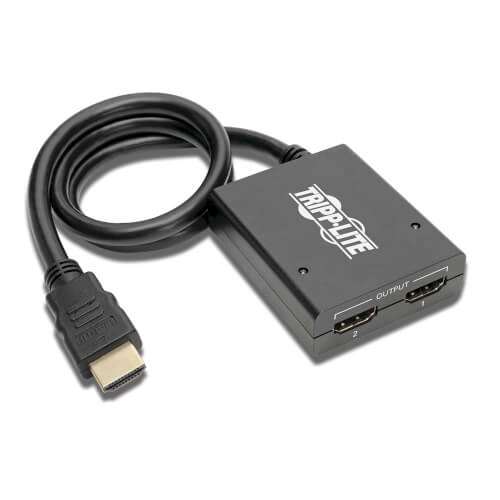

Tripp Lite's B118-002-UHD 2-Port 4K 3D HDMI Splitter allows the 4K digital signal from a Blu-ray player or other HDMI device to be displayed on two HDMI displays or connects a DVI-D Single-Link display using an HDMI to DVI adapter, such as Tripp Lite's P566-Series cables. Installation is quick and simple with no software or drivers to install. Locate your HDMI source up to 1.64 feet from the splitter and the splitter up to 23 feet from a display for a maximum distance of approximately 24 feet between splitter and display. Supports Full 3D and video resolutions up to 4K at 30 Hz (3840 x 2160). HDMI and 3D compliant with support for 36-bit Deep Color (12 bits per channel). Supports DTS-HD, Dolby True HD, Dolby Digital Plus and LPCM 7.1-channel surround sound audio. HDCP and EDID compliant.

Note: The B118-002-UHD sends the same image to all connected displays. If you would like to extend an image over multiple displays, you will need an MST hub, such as Tripp Lite's B156-002-HD-V2.

Features

Simultaneously transmit the video and audio from an HDMI source to multiple HDMI monitors
Supports Full 3D and video resolutions up to 4K @ 30 Hz (3840 x 2160)
Supports 36-bit Deep Color (12-bits per channel)
Supports DTS-HD, Dolby True HD, Dolby Digital Plus and LPCM 7.1 Channel Surround Sound audio
Supports video amplifier bandwidth of 340MHz / 3.4Gbps per channel (10.2Gbps total)
HDCP and EDID compatible
Plug and play; no software or drivers required

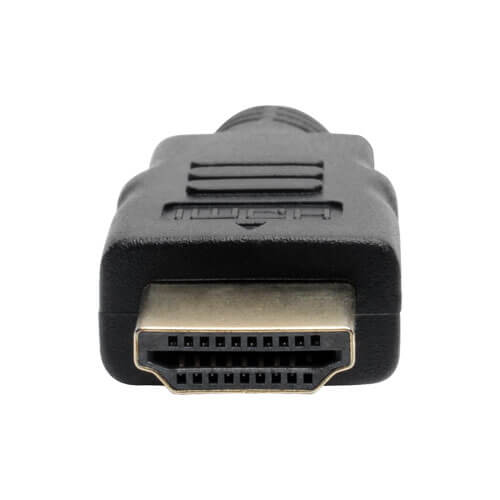

The B118-002-UHD features a built-in cable (1.6-ft / 0.5m) to connect to the source
Supports Lip Sync pass-through
Supports xvYCC and x.vColor
Supports the use of DVI sources and displays with the use of an optional DVI to HDMI adapter (sold separately)
Supports a maximum distance 23 ft. (7 m) from splitter to display
Cascade up to 3 levels of splitters together to increase the number of connected monitors up to 128

Features & Specifications

HDCP Specification	1.3
Driver Required	No

Specifications

Overview

UPC Code	37332183880

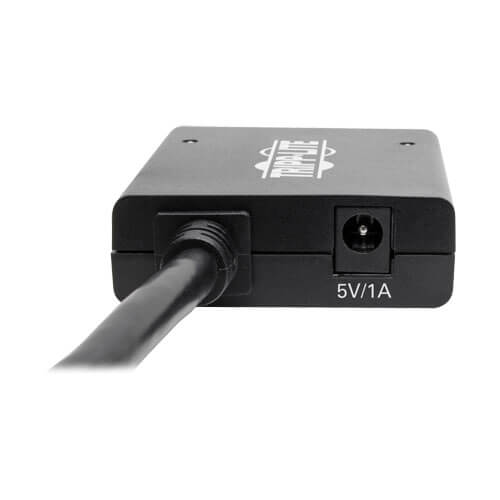

AC Adapter	Input: 100-240V, 50/60Hz, 0.2A; Output: 5V, 1A, 4 ft.
Technology	HDMI

Video

Max Supported Video Resolution	4K @ 30Hz (3840 x 2160)
Max. Distance (Between any 2 Units)	10ft (3m)
Max Number of Ports (Entire Chain)	128
Max Supported Color Depth	36-bit Deep Color
3D Video Supported	Yes

Audio

Audio Specification	DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1 Channel Surround Sound

Input

Voltage Compatibility (VAC)	100; 110; 120; 125; 127; 200; 208; 220; 230; 240
Built-In Cable Length (ft.)	1.64
Built-In Cable Length (in.)	19.68
External Power Supply Plug(s)	NEMA 1-15P North America
Bus Powered	No

Power

External Power Supply Input Specs (V / Hz / A)	100-240V, 50/60Hz, 0.2A
External Power Supply Output Specs (V / A)	5V / 1A
External Power Supply Cord Length (ft.)	4

Physical

Color	Black
Material of Construction	ABS
Rackmountable	No
Unit Dimensions (hwd / in.)	0.67 x 2.0 x 2.3
Unit Packaging Type	Box
Unit Weight (lbs.)	0.33

Environmental

Operating Temperature Range	32 to 158 °F (0 to 70 °C)
Storage Temperature Range	14 to 176 °F (-10 to 80 °C)
BTUs	7.2 BTU/Hr

Communications

EDID Compatible	Yes

Connections

Ports	2
Side A - Connector 1	HDMI (MALE)

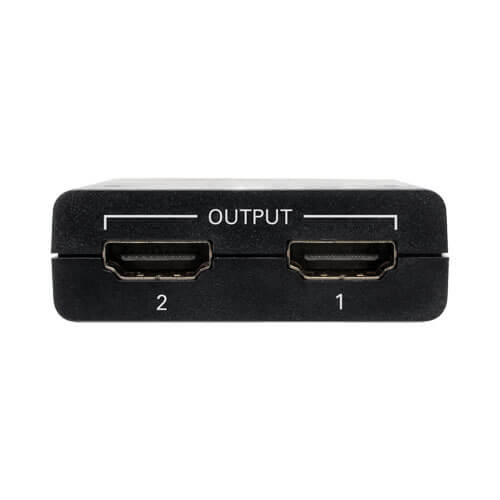

Side B - Connector 1	(2) HDMI (FEMALE)
Connector Plating	Gold

Standards & Compliance

Certifications	CE, FCC, RoHS, REACH

Warranty

Product Warranty Period (Worldwide)	3-year limited warranty
