Brand: Tripp-Lite
|
SKU:
931558
Tripp-Lite B118-004-UHD-2 | 4-Port HDMI Splitter - 4K @ 60 Hz, HDCP 2.2, HDR, TAA
Regular price
$240.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Transmits 4K audio/video signals from one HDMI source device to 4 HDMI displays at the same time.
Features
- Transmits a 4K HDMI A/V Signal to 4 HDMI Displays Simultaneously
- Recommended for 4K digital signage in classrooms, churches, offices, restaurants, bars, trade shows, etc.
- Distributes A/V signals up to 15 ft. (4.6 m) when used with standard 28 AWG HDMI cable
- Supports UHD resolutions up to 4K @ 60 Hz for crystal-clear video
- Supports HDCP 2.2 and EDID compliant to ensure compatibility with latest A/V hardware
- Cascade up to 3 levels of splitters together to increase the number of connected monitors up to 64
- Supports the Most Up-To-Date Features and Formats
- Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
- Full 3D
- DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound audio
- 36-bit Deep Color (12 bits per channel)
- Video amplifier bandwidth of 600 MHz/6 Gbps per channel (18 Gbps total)
- Lip sync pass-through, xvYCC and x.vColor
- Easy to Use Almost Anywhere
- Plug-and-play operation with no software required for easy, immediate installation

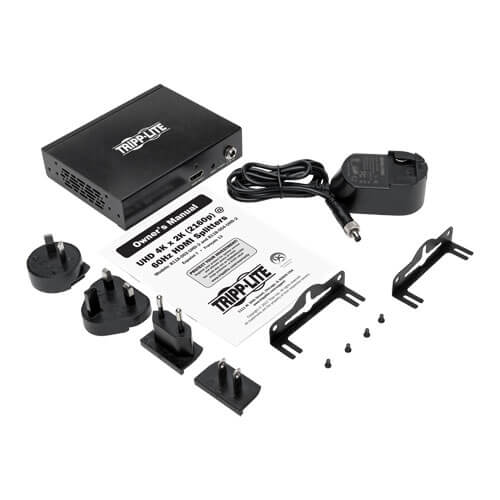

- Supports desktop use or wall-mounting using included hardware
- Power supply includes international plug adapters (North America, Europe, U.K. and Australia)
- TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Features & Specifications
| HDCP Specification | 2.2 |
|---|---|
| Driver Required | No |
Specifications
Specifications
Overview
| UPC Code | 37332200655 |
|---|---|
| AC Adapter | Input: 100-240V, 50/60Hz, 0.35A; Output: 5V, 2A, 4 ft |
| Technology | HDMI |
Video
| Max Supported Video Resolution | 4K @ 60Hz (3840 x 2160) |
|---|---|
| Max Supported Color Depth | 36-bit Deep Color |
| HDR Support | Yes |
| 3D Video Supported | Yes |
Audio
| Audio Specification | DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1 Channel Surround Sound |
|---|
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
|---|---|
| External Power Supply Plug(s) | NEMA 5-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia |
| Bus Powered | No |
| Product Length (in.) | 5.039 |
| Product Length (ft.) | 0.419 |
Power
| External Power Supply Input Specs (V / Hz / A) | 100-240V, 50/60HZ, 0.35A |
|---|---|
| External Power Supply Output Specs (V / A) | 5V / 2A |
| External Power Supply Cord Length (ft.) | 4.0 |
Physical
| Color | Black |
|---|---|
| Included Mounting Accessories | Yes |
| Material of Construction | Metal |
| Rackmountable | Yes |
| Shipping Dimensions (hwd / in.) | 2.17 x 8.43 x 6.46 |
| Shipping Weight (lbs.) | 1.39 |
| Unit Dimensions (hwd / in.) | 2.16 x 6.45 x 8.42 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.198 |
Environmental
| Operating Temperature Range | 32 to 104 °F (0 to 40 °C) |
|---|---|
| Storage Temperature Range | 5 to 122 °F (-15 to 50 °C) |
| Relative Humidity | 0% to 85% RH, Non-Condensing |
Communications
| EDID Compatible | Yes |
|---|
Connections
| Ports | 4 |
|---|---|
| Side A - Connector 1 | HDMI (FEMALE) |
| Side B - Connector 1 | (4) HDMI (FEMALE) |
| Connector Plating | Nickel |
Standards & Compliance
| Certifications | FCC, CE, ROHS |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
