Tripp-Lite B119-002-BDS-DP | 2x1 Bi-Directional Display Port Switch...
Description
Description

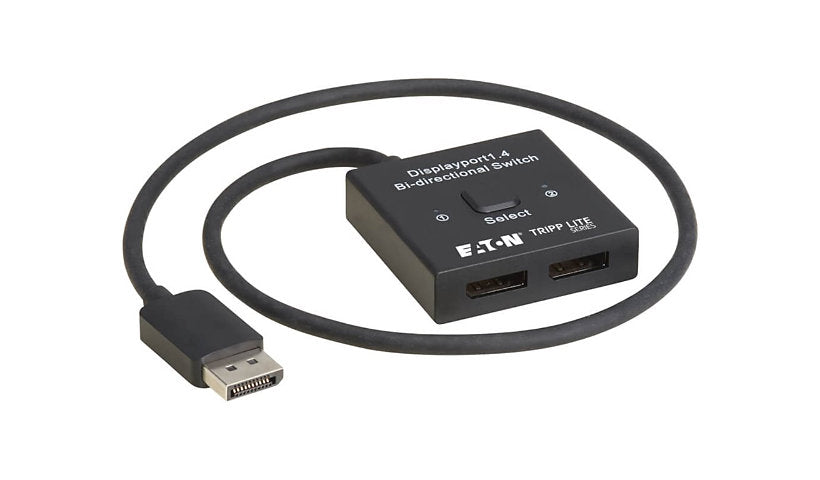

The B119-002-BDS-DP connects two DisplayPort source devices to one DisplayPort display and lets you switch back and forth between them. Or you can connect two displays to a single source and switch between the displays. This bi-directional DisplayPort switch works with a wide range of sources (media servers, Blu-ray players, game consoles, etc.) and displays (televisions, monitors, projectors) to let you customize your A/V installation.
This switch is recommended anywhere a variety of video signals is transmitted to a hi-def display. It is suitable for home theaters, video and multimedia presentations, security applications or digital signage in classrooms, bars, restaurants, conference rooms, lecture halls, exhibition centers and trade shows.
Tripp-Lite - B119-002-BDS-DP - Features
- Switches between 2 video sources on a single display or switches one video source between 2 displays up to 8K/4K
- Supports UHD resolutions up to up to 8K @ 30Hz or 4K @ 120Hz with HDR
- HDCP passthrough allows 4K signals from source to display with no loss in resolution
- 1 Year Eaton Warranty
- Recommended for digital signage/home theaters and 4K video presentations
- Convenient push button allows quick switching between sources/display
- Plug-and-play operation with no software required
Specifications
Specifications
Tripp-Lite - B119-002-BDS-DP - Specifications
| Brand | Eaton |
|---|---|
| Product Line | Eaton Tripp Lite series |
| Model | 2x1 Bi-Directional DisplayPort Switch - 4K 120 Hz or 8K 30 Hz, HDR, HDCP Passthrough |
| Manufacturer | Tripplite Cables |
| Features | 12-bit Deep Color support, HDCP Pass-Through, HDR support, Push button, YCbCr 4:2:0, YCbCr 4:4:4 |
| Form Factor (Hubs & Switches) | Desktop |
| Ports | 2 |
| Product Type | Video/audio switch |
| Subcategory | Peripheral sharing and hubs |
| Switching Type | DisplayPort |
| Interface Provided | 1 x DisplayPort output, 2 x DisplayPort input |
| Port Quantity | 2 |
| Port Type | DisplayPort |
| KVP Max Resolution | 4096 x 2160 |
| KVM V-Sync Rate At Max Resolution | 30 Hz |
| Max Operating Temperature | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Min Operating Temperature | 14 degree Fahrenheit |
| Min Storage Temperature | 14 degree Fahrenheit |
| Height | 2.2 inch |
| Weight | 2.23 ounce |
| Width | 2.2 inch |
| Depth | 0.6 inch |
| Color Category | Black |
| Compliant Standards | FCC, RoHS, UKCA, WEEE |
| No | EPEAT Compliant |
| No | TCO Certified |
