Brand: Tripp-Lite
|
SKU:
812263
Tripp-Lite B119-002-UHD | 2-Port HDMI Switch with Remote Control - 4K @ 60 Hz, 4:4:4, HDR, 3D, HDCP 2.2, EDID
Regular price
$77.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B119-002-UHD | 2-Port HDMI Switch with Remote Control - ...
Regular price
$77.55
Unit price
Description
Description
The B119-002-UHD 2-Port HDMI Switch allows you to connect two HDMI source devices to one port on an HDMI display and switch back and forth between them. For instance, you can connect a Blu-ray player and video game system or a computer and cable/satellite DVR to one HDMI port on a monitor, projector or TV. Or you can connect two computers or media centers to a display for exhibiting digital signage or giving presentations.

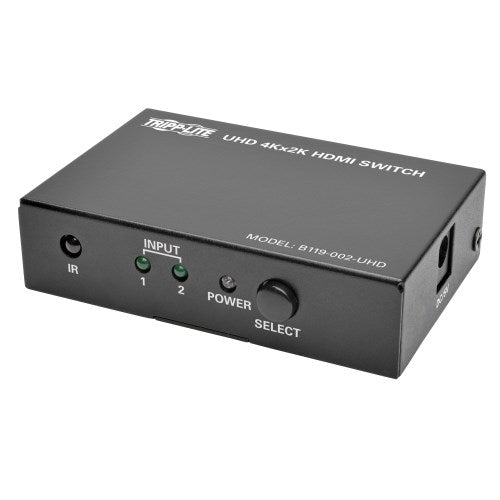

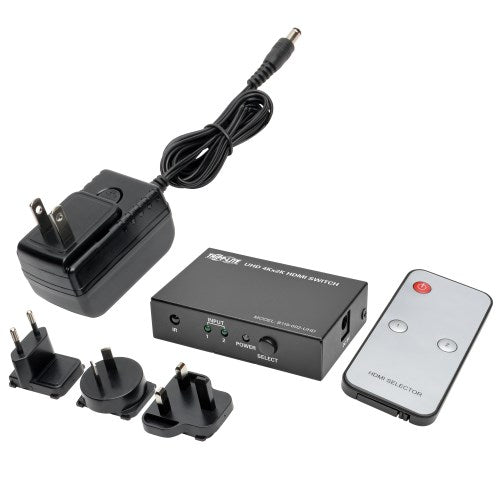

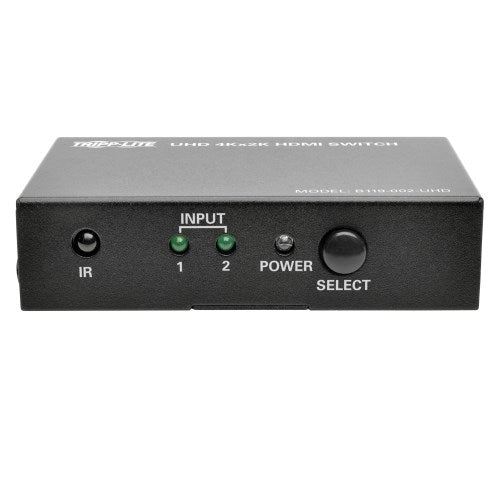

Connect your devices to the HDMI ports, and plug the included external power supply into an AC power source. A red LED indicates the unit is receiving power, and green LEDs indicate connected HDMI inputs. Switch between source devices using the unit’s Select button or the included remote control. When the currently used device is powered off, the unit automatically switches to the next powered-on device.
The B119-002-UHD ensures top-quality performance with video resolutions up to 4K @ 60Hz 4:4:4, as specified in HDMI 2.0. It is also capable of 48-bit True Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It’s compatible with 3D, HDR, HDCP v2.2 and EDID. Plug-and-play functionality requires no software or drivers to download and install.
Features
- Connects 2 HDMI Devices to a Single HDMI Display
- Ideal for home entertainment systems, digital signs and video presentations
- Switch between source devices via button on unit or included remote control
- Automatically switches to next available device when currently used device is powered off
- Red LED indicates unit is receiving power from AC outlet
- Green LEDs indicate connected HDMI inputs
- Top-of-the-Line Audio and Video
- Supports video resolutions up to 4K @ 60 Hz (4:4:4), as specified in HDMI 2.0
- Supports 48-bit True Color (16 bits per channel)
- Up to 18Gbps Data Rate
- Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
- Compatible with 3D, HDCP v2.2 and EDID
- Sets Up in Seconds
- Plug and play right from the box with no software or drivers needed
Features & Specifications
| Port Selection | Pushbutton; Remote Selector |
|---|---|
| HDCP Specification | 2.2 |
| Driver Required | No |
Specifications
Specifications
Overview
| UPC Code | 37332191335 |
|---|---|
| AC Adapter | Input: 100-240V, 50/60Hz, 0.3A; Output: 5V, 1A, 5 ft. |
| Technology | HDMI; IR |
Video
| Max Supported Video Resolution | 4K @ 60Hz (3840 x 2160) |
|---|---|
| Max Supported Color Depth | 48-bit Deep Color |
| HDR Support | Yes |
| 3D Video Supported | Yes |
Audio
| Audio Specification | DTS-HD, Dolby TrueHD and 7.1 Channel Surround Sound |
|---|
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
|---|---|
| External Power Supply Plug(s) | AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America |
| Bus Powered | No |
| Product Length (in.) | 2.15 |
| Product Length (ft.) | 0.26 |
Power
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50Hz/60Hz / 0.3A |
|---|---|
| External Power Supply Output Specs (V / A) | 5V / 1A |
| External Power Supply Cord Length (ft.) | 5 |
Physical
| Color | Black |
|---|---|
| Material of Construction | Steel |
| Rackmountable | No |
| Shipping Dimensions (hwd / in.) | 2.40 x 6.70 x 5.00 |
| Shipping Weight (lbs.) | 0.80 |
| Unit Dimensions (hwd / in.) | 0.8 x 3.1 x 2 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.24 |
Environmental
| Operating Temperature Range | 32 to 104°F (0 to 40°C) |
|---|---|
| Storage Temperature Range | 14 to 176°F (-10 to 80°C) |
| BTUs | 5.8 BTU/Hr |
Communications
| Port Control | Push Buttons |
|---|---|
| EDID Compatible | Yes |
| IR Remote Extension Support | Yes |
| Consumer Electronics Control (CEC) Supported | Yes |
Connections
| Ports | 2 |
|---|---|
| Side A - Connector 1 | (2) HDMI (FEMALE) |
| Side B - Connector 1 | HDMI (FEMALE) |
Standards & Compliance
| Certifications | CE, FCC, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
