Brand: Tripp-Lite
|
SKU:
9810269

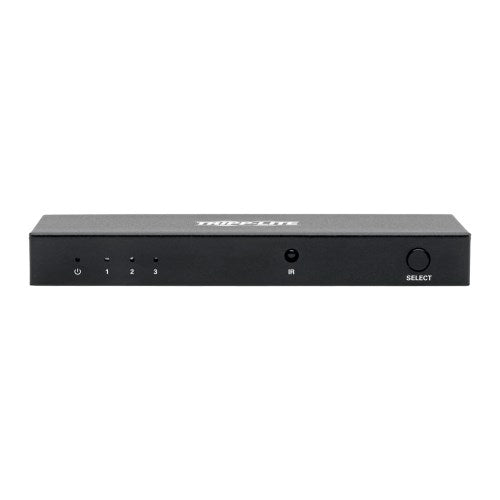

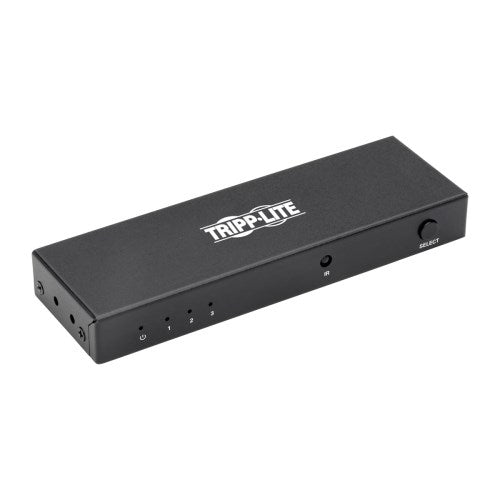

Tripp-Lite B119-003-UHD | 3-Port HDMI Switch with Remote Control - 4K @ 60 Hz (HDMI F/3xF), 3D, HDCP 2.2, EDID
Regular price
$41.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
4K HDMI switch connects 3 HDMI audio/video source devices to a single HDMI display and switches between them.
Features
- Connect 3 HDMI Source Devices to an HDMI Display and Switch Between Them
- This 4K HDMI switch allows you to connect three HDMI source devices to one port on an HDMI display and switch back and forth between them. For instance, you can connect a Blu-ray player, cable/satellite DVR and video game system to one HDMI port on a monitor, projector or TV. Or you can connect three computers or media centers to an HDMI display for exhibiting digital signage or giving presentations.
- Hassle-Free Setup of 3 High-Definition Computers, Blu-Ray Players or Other Sources

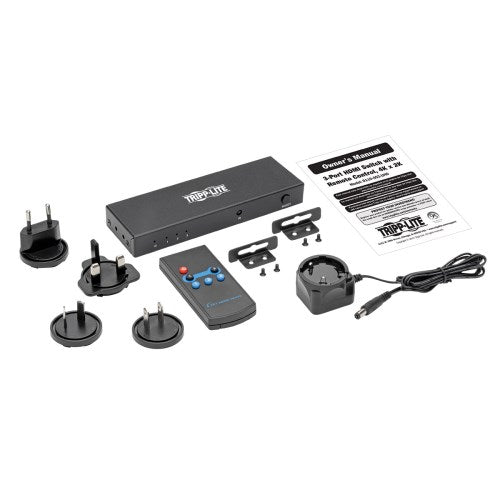

- The B119-003-UHD is ideal for home entertainment systems, schools, point-of-sale displays, trade shows and anywhere else digital video is displayed. Connect up to three source devices to the HDMI input ports using HDMI cabling (sold separately), and plug the included external power supply into an AC power source. Another HDMI cable connects the HDMI output port to a monitor, projector or television. A red LED indicates the unit is receiving power, and blue LEDs indicate an HDMI signal is being received.
- Easy Switching of Audio/Video Source Devices

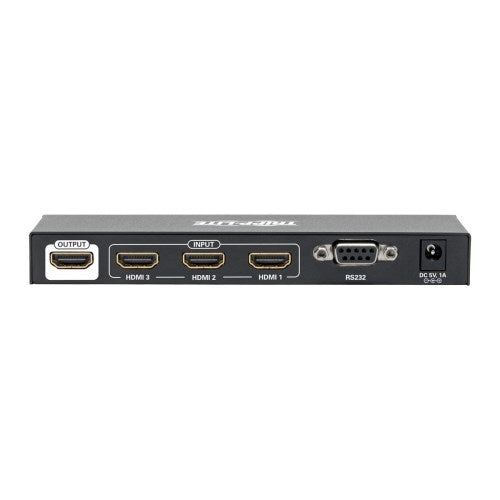

- You can switch from one source device to another in one of three ways: the Select button on the unit, the included remote control or RS-232 serial control. An RS-232 serial port connects a computer via DB9 cable (sold separately).
- Meets the Latest Audio/Video Standards, Including True 4K Resolutions
- The plug-and-play 3-port HDMI switch with remote control comes in a durable metal housing and requires no software or drivers. It meets current 3D, EDID and HDCP 2.2 standards to ensure you can use the switch with the most up-to-date Blu-ray players and other components. It supports Ultra High Definition (UHD) video resolutions up to true 4K at 60 Hz (4096 x 2160) and 36-bit True Color (12 bits per channel), as specified in HDMI 2.0, as well as 7.1-channel surround sound, DTS-HD, Dolby TrueHD, DSD (Direct Stream Digital) and HD (HBR) audio.
Features & Specifications
| Port Selection | Pushbutton; Remote Selector |
|---|---|
| HDCP Specification | 2.2 |
| Driver Required | No |
Specifications
Specifications
Overview
| UPC Code | 37332210210 |
|---|---|
| Technology | HDMI; IR |
Video
| Max Supported Video Resolution | 4K x 2K @60Hz |
|---|---|
| Max Supported Color Depth | 36-bit Deep Color |
| 3D Video Supported | Yes |
Audio
| Audio Specification | Standard Audio, DSD, HBR, 7.1, DTS-HD, Dolby True-HD |
|---|
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
|---|---|
| External Power Supply Plug(s) | NEMA 1-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia |
Power
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50Hz/60Hz / 0.2A |
|---|---|
| External Power Supply Output Specs (V / A) | 5V / 1A |
| External Power Supply Cord Length (ft.) | 4.0 |
Physical
| Color | Black |
|---|---|
| Material of Construction | Steel |
| Unit Dimensions (hwd / in.) | 0.8 x 6.3 x 2 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.54 |
Environmental
| Operating Temperature Range | 32 to 140 °F (0 to 60 °C) |
|---|---|
| Storage Temperature Range | -4 to 158 °F (-20 to 70 °C) |
| Relative Humidity | 0% to 95% RH, Non-Condensing |
Communications
| Signal Range (ft.) | 16 |
|---|---|
| EDID Compatible | Yes |
| IR Remote Extension Support | Yes |
| RS-232 Serial Extension Support | Yes |
| Latency | 20ms |
Connections
| Ports | 4 |
|---|---|
| Side A - Connector 1 | (3) HDMI (FEMALE) |
| Side B - Connector 1 | DB9 (MALE); HDMI (FEMALE) |
| Connector Plating | Gold; Nickel |
Standards & Compliance
| Certifications | CE, FCC, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
